IRiS® R2 2.9MM Indoor Video Panel

IRiS® R2


SKU: 123917

  • Panel Dimensions: 500×500x100mm
  • Pixel pitch (mm): 2.9
  • LED Type: Blackface SMD 2020
  • Pixel Per Panel: 168×168
  • Curvature: 10° concave, 5° convex maximum
  • Brightness (cd/m2): 1200
  • Refresh Rate (Hz): 3840
  • Panel Material: CNC + Cast Aluminum
  • Modules Per Panel: 4
  • Module Dimensions: 250×250mm
  • Viewing Angle (H/V) (°): 150/140
  • Send/Receive: NovaStar® Enhanced (Armor Series)
  • Power: Neutrik® powerCON® in/out
  • Data: Neutrik® etherCON® in/out
  • IP Rating (Front/Rear): IP40/IP21
  • Certificate: cETLus | FCC | CE | RoHS
- +
Add to Cart
Where Else to Buy

Suggested Products

3.8mm Indoor, Black SMD 2121 LEDs

Learn More

3.9mm Indoor, Black SMD 2020 LEDs

Learn More

3.9mm Outdoor, NationStar 1921 LEDs

Learn More

6x Video Panel Road Case

Learn More

Life Before Your Eyes

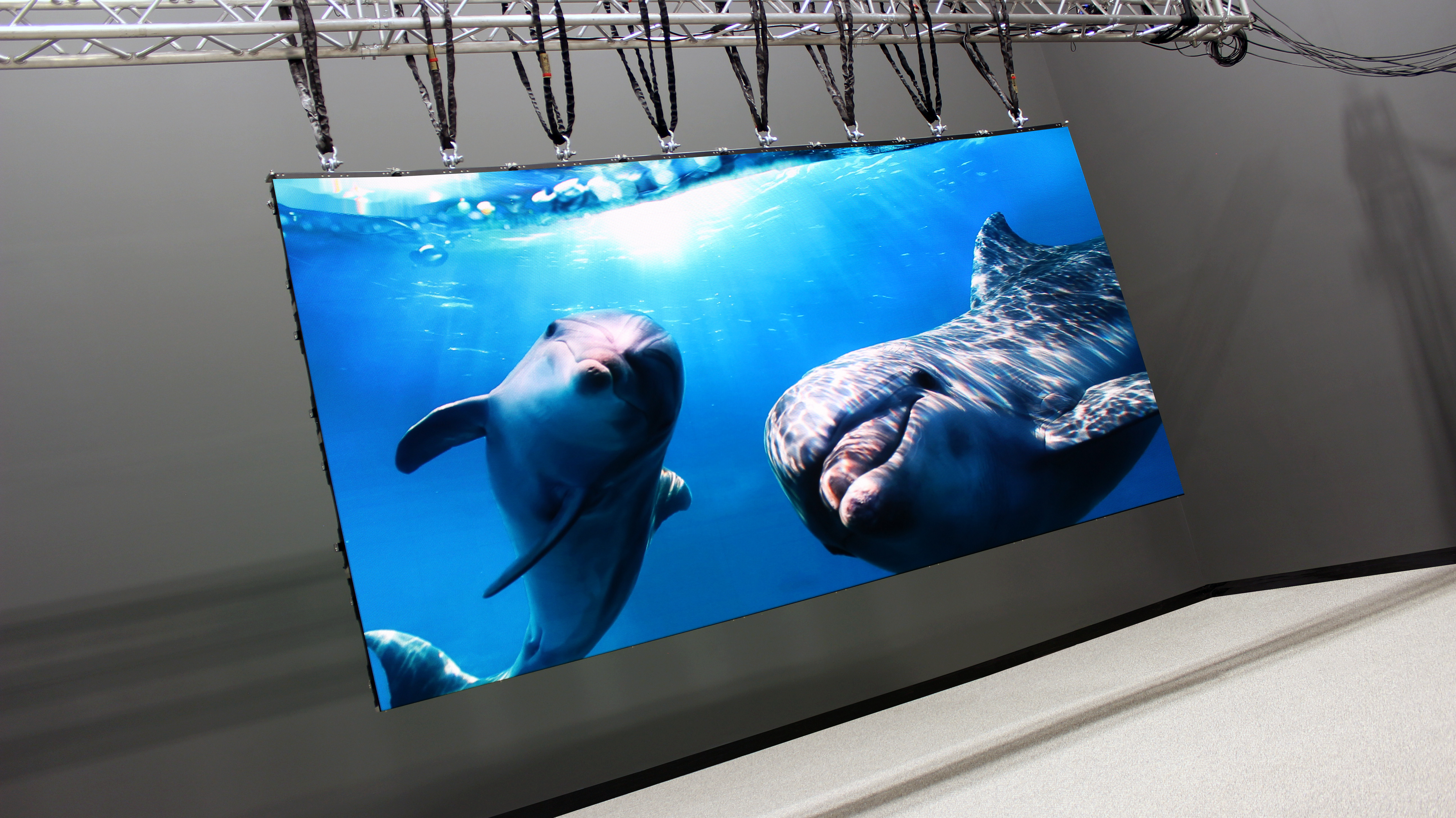

Featuring enhanced processing hardware and completely redesigned mechanics, IRiS™ R2 offers class-leading performance and reliability.

2 MM ≥ 9 ft ≥ 12ft 14 ft 16 ft 2.5 MM 2.9 MM 3.9 MM Video Wall Pixel Pitch Viewing Distance

Product Summary

2.9MM Indoor LED Panel

IRiS™ R2 is an ETL listed professional indoor rated LED video panel with a 2.9mm pixel pitch for high resolution at both short and far viewing distances, and have an exceptional 1200nit brightness with a 3840Hz refresh rate.

They are designed for easy one man handling, and their sophisticated quick lock system makes setup a breeze. These panels also feature fast and accurate side locks that allow curved connections from 10° concave to 5° convex.

Quick + Easy Maintenance

These panels weigh in at under 20lbs thanks to their strong and lightweight CNC + cast aluminum frame, and module maintenance is tool-free and easy with their 4x magnetic-mount front/rear modules per panel.

They can be controlled flawlessly with the Novastar® TB6 or VX4S LED display controllers, and each panel comes with a 3' etherCON® compatible interconnect, plus a 3' powerCON® compatible interconnect cable.



Panel Material: CNC + Cast Aluminum

Front IP Rating: IP40

Rear IP Rating: IP21

Curve Hardware: Double-arm

Modules Per Panel: 4

Panels required for Native HD: 84

Rigging Options: IRiS-R2 & IP3-FLY1 + IRiS-R2 & IP3-FLY2 Bumpers, Ground Support, Wall Mounted

Max Rigged Height: 20 panels


Pixel pitch (mm): 2.9

Native Resolution: 168x168

Pixels per Panel/m2: 28,224

LED Type: Blackface SMD 2020

Module Type: Magnetic, Universal

LED Lifetime (H): 100000

Brightness (cd/m2): 1200

Refresh Rate (Hz): 3840

Grayscale: 15-bit

Contrast Ratio: 7000:1

Color Temperature (K): 6500

Viewing Angle (H/V) (°): 150/140


Operating Voltage: 100-240VAC

Max Power Consumption (W/m2): 510W

Electronics Service: Front/Rear

Backbox Design: Modular

Power: Neutrik® powerCON® in/out

Data: Neutrik® etherCON® in/out


2-year limited warranty

Dims & Weight

19.7" L x 19.7" W x 4" H

19.4 lbs
