N-Trance™

It may take you to another plane of existence.

$999.99

N-Trance™ Buy

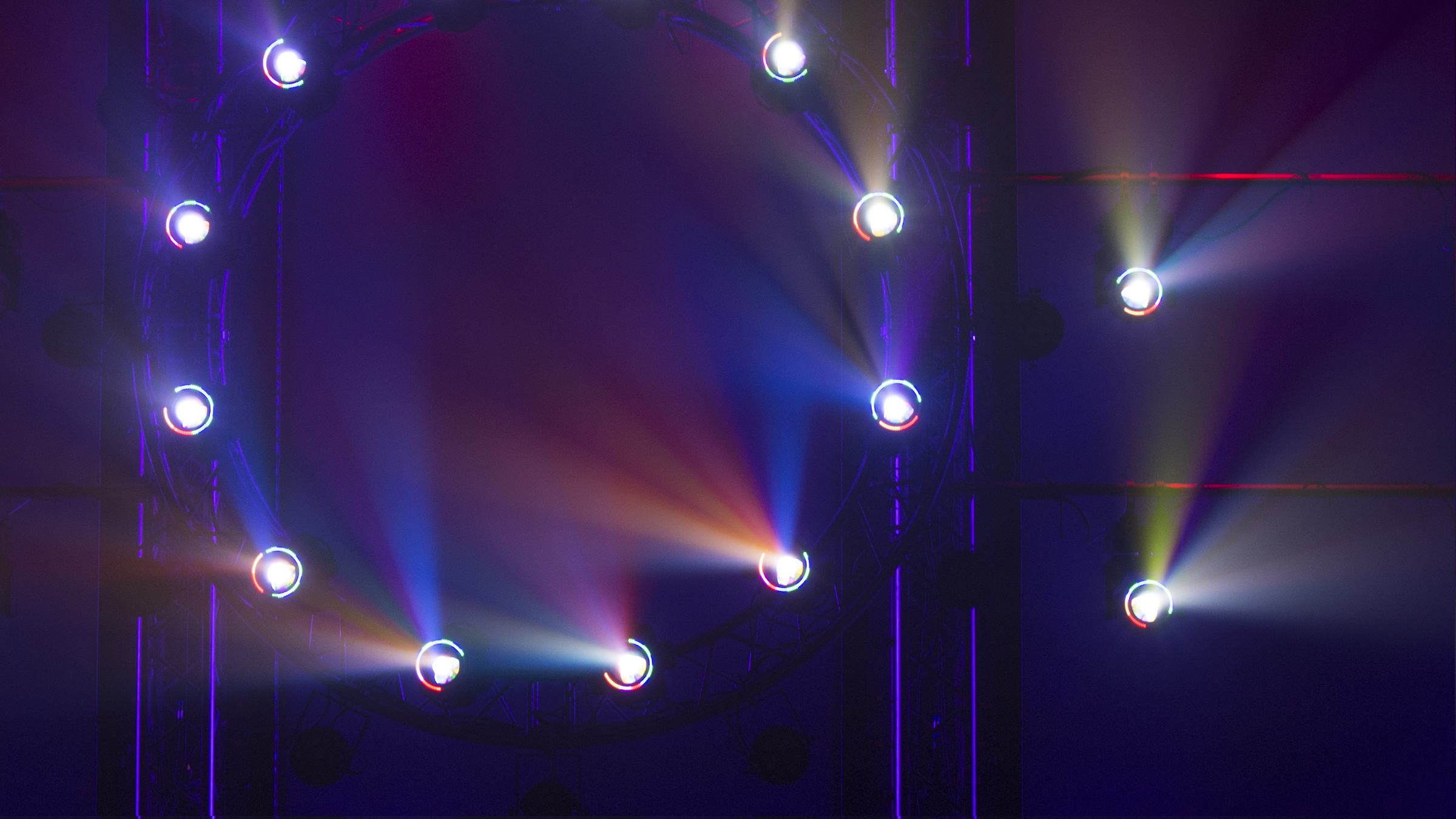

Sharp Beam + Ring Effects

It’s an LED moving head fixture unlike any other. N-Trance™ is fitted with an ultra bright 2° white LED for sharp beam effects, plus a stunning ring with 86x RGB 3-in-1 SMD5050 LEDs. You can perform captivating dual-layer effects and wield mastery over solid color changes, fade effects, and chase effects with speed control + variable tracer length. It also has full pixel mapping capabilities.

Loaded with Features

The beam has a 14-color wheel (+ white & split colors), plus a static gobo wheel with 21 gobos. It offers user-selectable 540/640° PAN and 270° TILT with fine 16-bit adjustments & speed control, 6/8-facet prism, and smooth dimming. Plus, you’ll get 1-25Hz strobe + effects, auto mode, and sound active mode.

Main Features

* 2° narrow beam effects via 90W LED * LED ring with 86pcs RGB 3-in-1 SMD5050 LEDs * Gobo wheel with 21 gobos + open * Color wheel with 14 colors + open (split colors and bidirectional rotation) * 6/8-facet bi-directional rotating prism * Frost and color filter effects * Independent DMX control of beam and LED ring effects * Built-in auto/sound active programs * Pan: 540/640°, Tilt: 270° (8-16 Bit Resolution) * 1-25Hz fps strobe + variable/random effects * 4 user-selectable dimming curves * 2.4” TFT LCD display with 4 button control * DMX512, Art-Net, RDM, M/S, sound active & auto mode * 3/5-pin DMX In/Out + RJ45 etherCON In/Out (Art-NET) * PowerCON™ compatible AC power In/Out * Dimensions: 12.4 x 8 x 19.8 inches (315.3 x 202 x 502.5 mm) * Weight: 31.3 lbs, 14.2 kg

Product Specifications

Optical


90W white 7000K LED (2° beam)

86* RGB 3-in-1 SMD5050 LEDs (ring)

Flicker-free

Linear electronic focus

Luminous Intensity: 49,450 Lux @ 5M,
12,721 Lux @10M

Movement


Pan: 540/640 degree (8-16 bit resolution)

Tilt: 270 degree (8-16 bit resolution)

Control


Protocol: USITT DMX-512

21/44/128-channel DMX modes

DMX512, Art-Net, RDM, M/S, auto, sound

3/5-pin DMX in/out

4-button 2.4” TFT LCD display menu

Power & Current


100-240VAC, 50-60 Hz

136W, 1.81A, PF: .62

PowerCON™ compatible AC power In/Out connectors

Warranty


2-year limited warranty, does not cover malfunction caused by damage to LEDs

Downloads

  • Cutsheet

    Download

    n-trance_cutsheet.pdf

  • Manual
    Rev A

    Download

    n-trance_manual_rev_a.pdf
