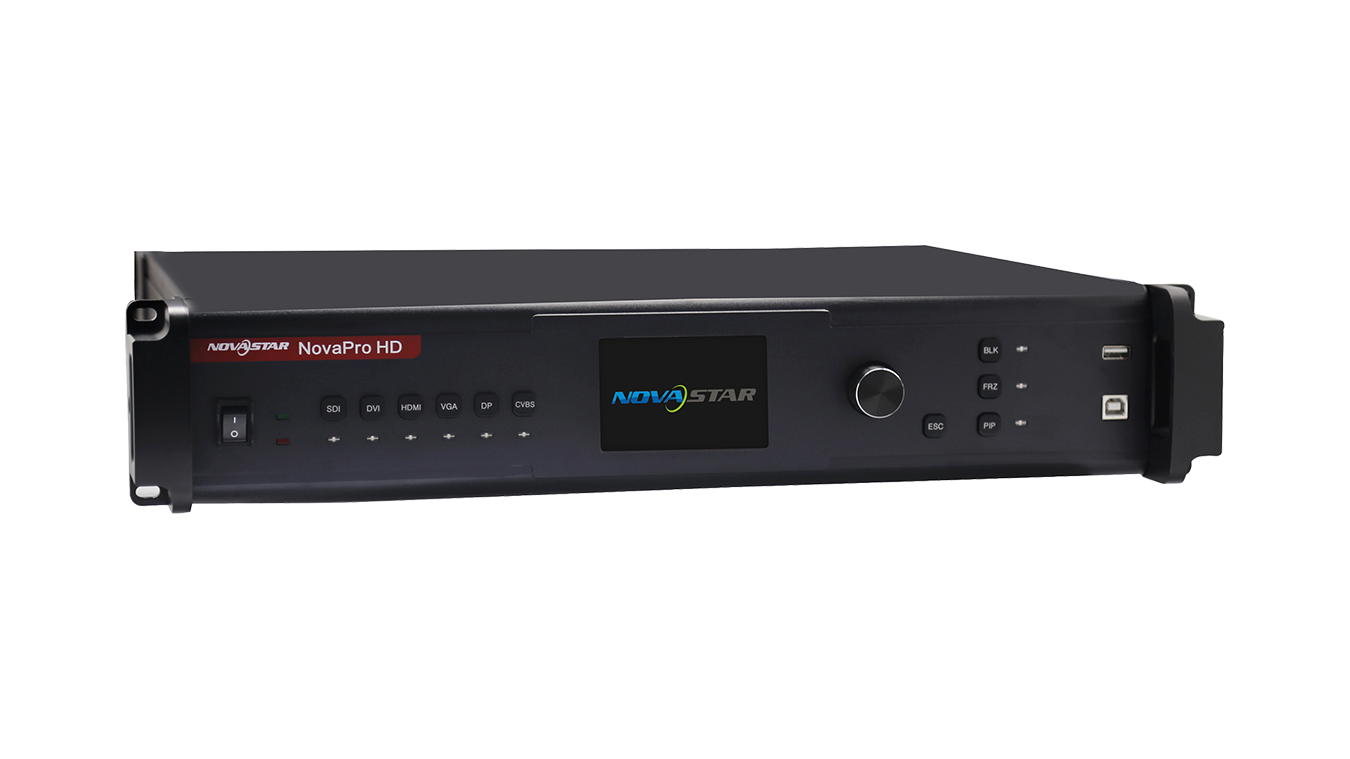

NovaPro™ HD

LED Display Controller

$2,999.00

NovaPro™ HD Buy

Powerful Processing

The NovaPro™ HD is a professional LED display controller. Besides the function of display control, it also offers powerful front end processing, so an external scalar is no longer needed. And with its wide array of professional features, the NovaPro HD meets the requirements of the broadcast industry in image quality and control.

Loaded with Features

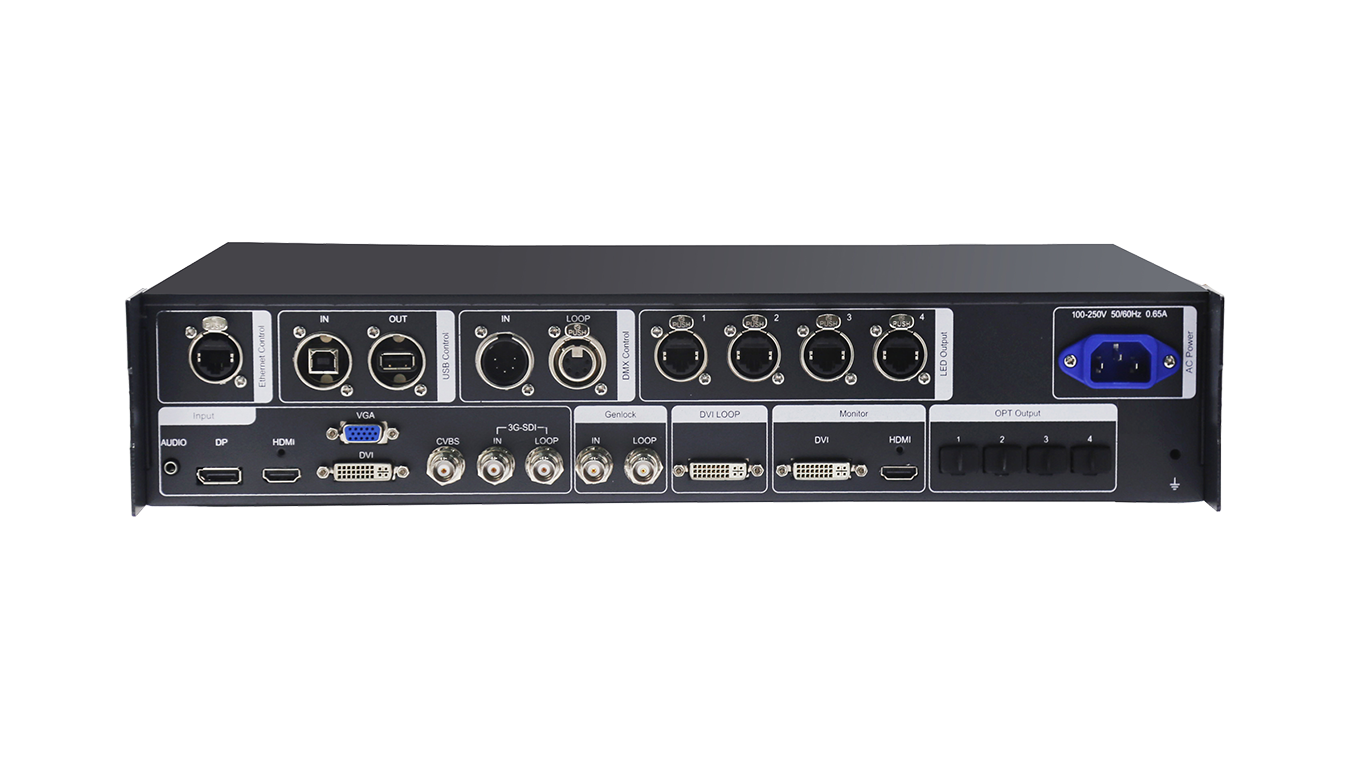

This controller is fitted with multiple input types including CVBS, VGA, SDI, DVI, HDMI, DP, and supports a high resolution of up to 1080p@60Hz. NovaPro™ HD is rich in features, professional in control, and friendly in user-interface. Getting a display to work has never been as easy or more enjoyable as with the NovaPro™ HD.

Main Features

* Product Type: Video Controller * "Touch Track" PC-free Configuration * Remote PC, Tablet, or Smartphone Configuration * Inputs: DP, HDMI, VGA, DVI, CVBS, SDI * 4x Optical Fiber Outputs * 4x Ethernet Ports * Loading Capacity: 2.35 Million Pixels * Max pixel CLK = 165MHz * Video Loop: DVI, SDI, GenLock * Video Monitor: DVI, HDMI * Communication Mode: USB/LAN * Image Mosaic: Support * Crop Settings: Support * PIP: Support * Certification: CE, ROHS, FCC, UL, EAC

Product Specifications

Weight & Dimensions


19 x 15.3 x 3.5" (483 x 389 x 88.2mm)

Weight: 6 kg

Power & Current


100-250VAC, 50/60Hz

Power consumption: 30W, 0.65A

Thermal


Operating temperature: -20~60°C

Warranty


2-year limited warranty

Downloads

  • Cutsheet

    Download

    iris-nova-novaprohd_cutsheet.pdf

  • Manual
    Rev A

    Download

    iris-nova-novaprohd_manual_rev_a.pdf
