NovaStar™ VX1000 6.5M pixels (HDMI 1.4 / DVI / 3G-SDI + Loop, 10G OPT)

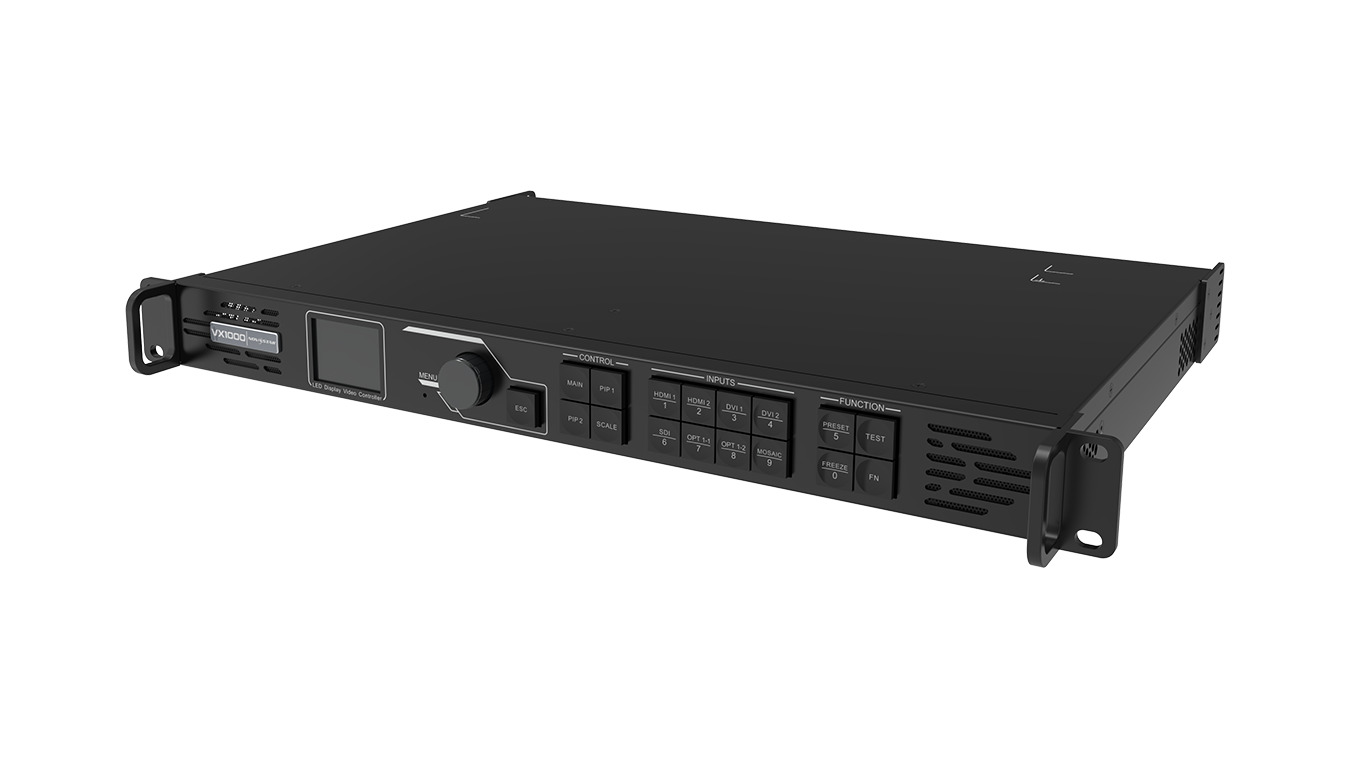

NovaStar™ VX1000


SKU: 124309

  • 2-in-1 video controller & processor
  • Drives up to 6.5M pixels with one unit
  • Perfect for ultra wide/high screens
Fast, Free Shipping on Orders $99+
- +
Add to Cart
Where Else to Buy

Suggested Products

9 Rack Space Processor / Splicer

Learn More

2.9mm Indoor, Black SMD 2020 LEDs

Learn More

3.9mm Outdoor, NationStar 1921 LEDs

Learn More

8.8M pixels (12G-SDI, DP1.2, HDMI 2.0, HDMI 1.3)

Learn More

All-in-One Controller

The VX1000 is NovaStar's new all-in-one controller that conveniently integrates video processing and video control all into one box. It features 10 Ethernet ports and it supports video controller, fiber converter, and bypass working modes. One VX1000 unit can drive up to 6.5 million pixels, with a maximum output width and height up to 10,240 pixels and 8,192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screen applications.

Highly Versatile

It's capable of receiving a variety of video signals and able to process high-resolution 4K×1K@60Hz images. It features stepless output scaling, low latency, 3D, pixel-level brightness, chroma calibration, and more to present you with an excellent image display experience. Thanks to its powerful video processing and sending capabilities, it can be used in applications such as medium and high-end rental, stage control systems, and fine-pitch LED screens for project use.

Product Summary

Controller & Processor

The VX1000 is a 10-port 2-in-1 video controller that combines video processing and video control functions. It can be widely used in the field of medium to high-end rental, stage control and engineering narrow pitch LED display.



Loading capacity: 6.5m pixels

Layers: 3 x 4Kx1K@60Hz

Mosaic input source supported

Audio input and output

3D functions

Low latency

Output synchronization

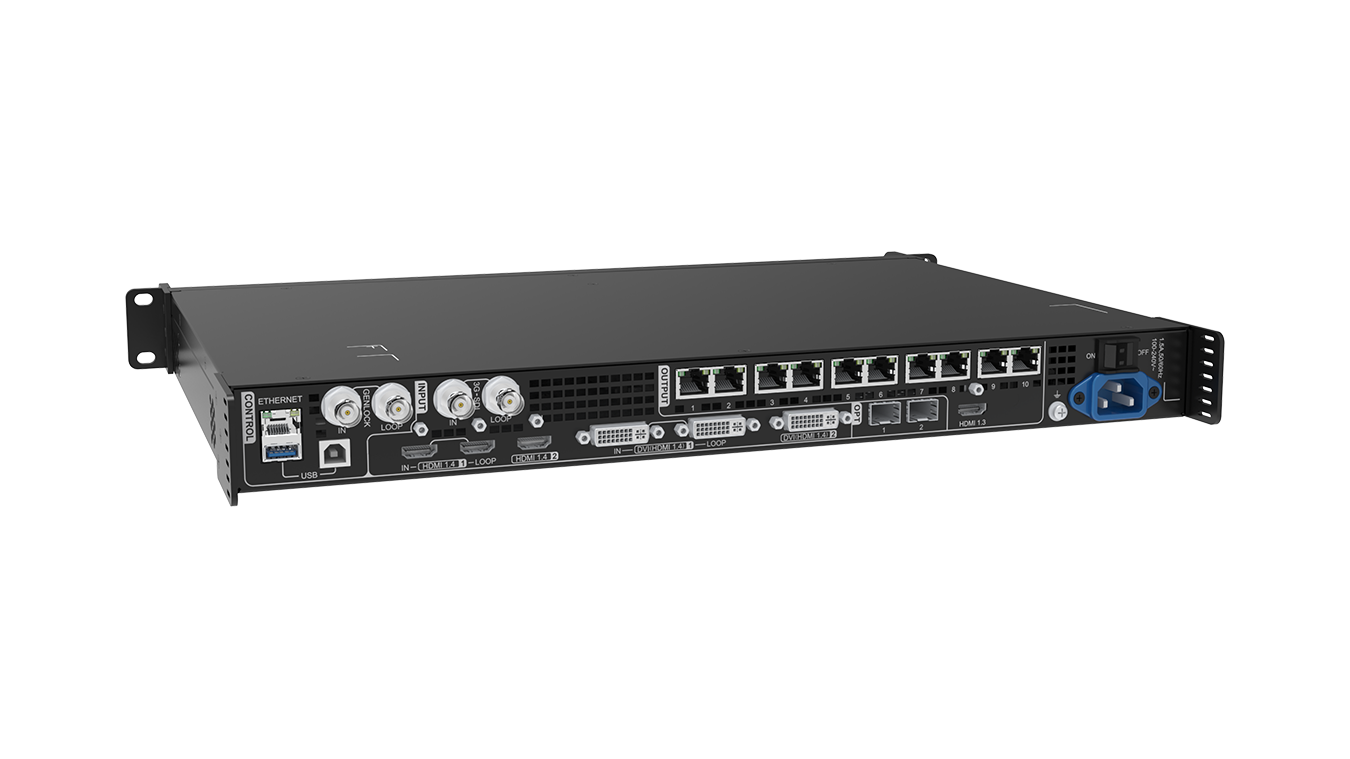

2x HDMI 1.4 + LOOP In

2x DVI (HDMI 4.1) + LOOP In

1x 3G-SDI + LOOP In

10x Gigabit Ethernet outputs

2x 10G OPT ports

1x HDMI 1.3 (monitor)

1x RJ45 Ethernet (PC)

1x USB Type A (PC)

1x USB Type B (cascading)

1x Genlock In + LOOP


LCD menu display

Intuitive display interface

PC: Ethernet, USB (A/B), Genlock IN + LOOP


100-240VAC, 50-60 Hz

Power consumption: 28W, 1.5A


3-year warranty

Dims & Weight

13.3" L x 19" W x 2" H

13.9 lbs
