IRiS® InSite 2.5 2.5MM Indoor LED Panel


IRiS® InSite 2.5


SKU: 124085

  • Panel Dimensions: 610×343×61mm
  • Pixel Pitch (mm): 2.54
  • True 16:9 HD Video Quality
  • LED Type: Black SMD 2121
  • Pixel Per Panel: 240×135
  • Brightness (nit): 1000
  • Refresh Rate (Hz): 3840
  • Panel Material: CNC + Cast Aluminum
  • Modules Per Panel: 2
  • Module Dimensions: 305×343mm
  • Viewing Angle (H/V) (°): 160/140
  • Send/Receive: NovaStar®
  • Power: Neutrik® powerCON®
  • Data: Neutrik® etherCON®
  • IP Rating (Front/Rear): IP40/IP21
  • Certificate: cETLus | FCC | CE | RoHS
Fast, Free Shipping on Orders $99+


Where Else to Buy

Suggested Products

3.8mm Indoor, Black SMD 2121 LEDs

Learn More

3.9mm Outdoor, SMD 1921 LEDs

Learn More

2.9mm Indoor, Black SMD 2020 LEDs

Learn More

3.9mm Indoor, Black SMD 2020 LEDs

Learn More

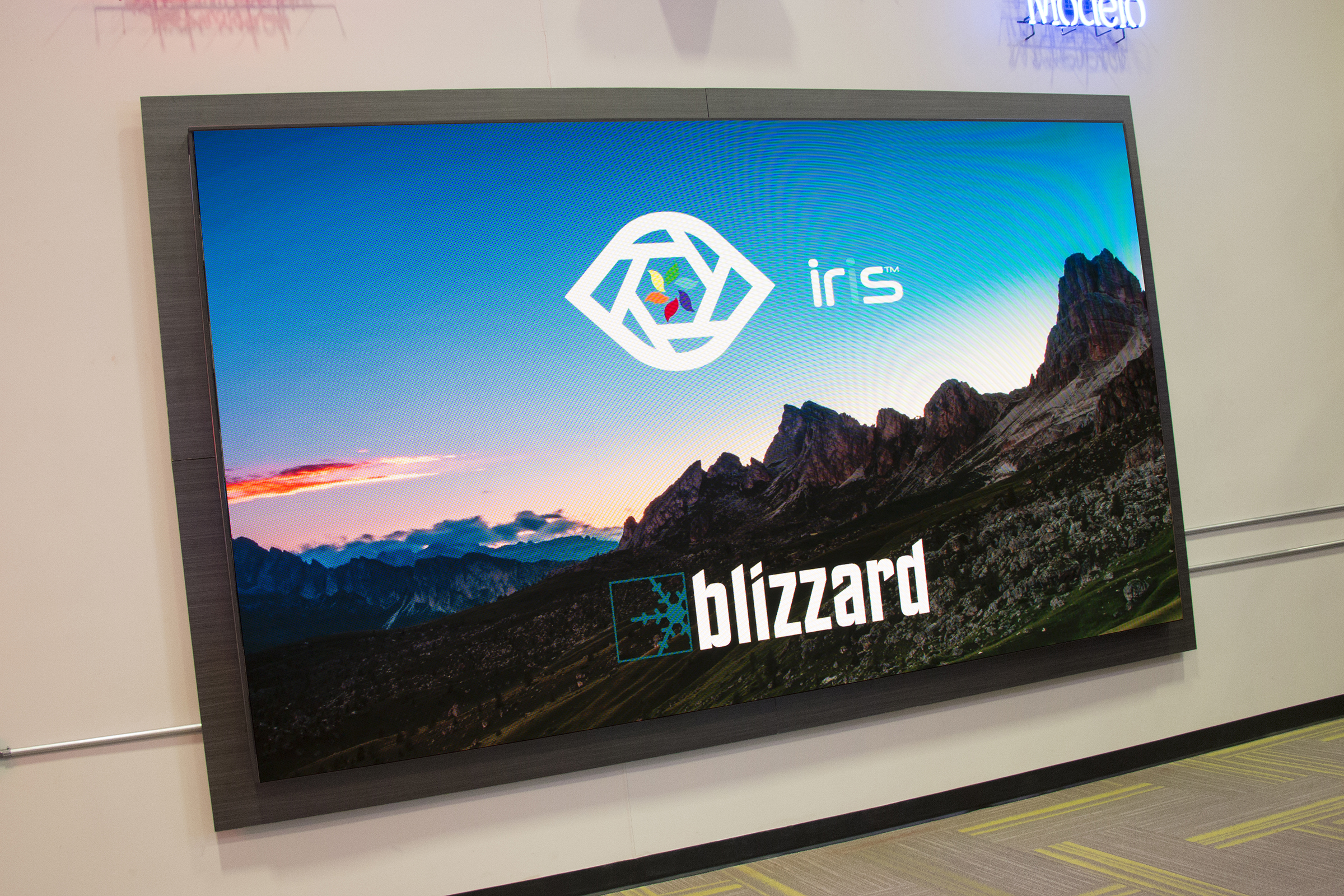

Life Before Your Eyes

With easy flush wall-mounting, 100% front-service design and Blizzard's enhanced 2-year limited warranty, IRiS™ InSite 2.5 is the perfect choice for permanent installs.

2 MM ≥ 9 ft ≥ 12ft 14 ft 16 ft 2.5 MM 2.9 MM 3.9 MM Video Wall Pixel Pitch Viewing Distance

Product Summary

2.5MM Pixel Pitch - 16:9 HD

IRiS™ InSite 2-Five (2.5mm) LED video panels deliver true 16:9 aspect ratio HD video quality. They are ETL listed and manufactured with precisely matched SMD2121 blackbody LEDs for exceptional color reproduction and gamut.

They offer safe and quick front service with 2 universal magnetic die-cast aluminum modules per panel. IRiS™ InSite panels are simple to install via floor stacking, rigging, or permanent flush wall-mounting.

Quick + Easy Maintenance

These panels weigh in at under 20lbs thanks to their strong and lightweight CNC + cast aluminum frame, and module maintenance is tool-free and easy with their 2x magnetic-mount front/rear modules per panel.

They can be controlled flawlessly with Novastar® LED display controllers, and each panel comes with a 3' etherCON® compatible interconnect, plus a 3' powerCON® compatible interconnect cable.



Panel Material: CNC + Cast Aluminum

Front IP Rating: IP40

Rear IP Rating: IP21

Modules Per Panel: 2

Rigging Options: Rigging/Stack, Front/Rear Installation

Max Rigged Height: 12 panels


Pixel Pitch (mm): 2.54

Native Resolution: 240x135

Pixels per Panel/m2: 32,400

LED Type: Black SMD 2121

Module Type: Magnetic, Universal

LED Lifetime (H): 100000

Brightness (cd/m2): 1000

Refresh Rate (Hz): 3840

Grayscale: 14 bit

Contrast Ratio: 5000:1

Color Temperature (K): 6500

Viewing Angle (H/V) (°): 160/140


Operating Voltage: 100-240VAC

Max Power Consumption (W/m2): 500W

Electronics Service: Front

Power: Neutrik® powerCON® in/out

Data: Neutrik® etherCON® in/out


2-year limited warranty

Dims & Weight

24" L x 13.5" W x 2.4" H

17.6 lbs
