This product has been discontinued.

InfiniPix™ Lil Spektro

SKU:

124672

279.99

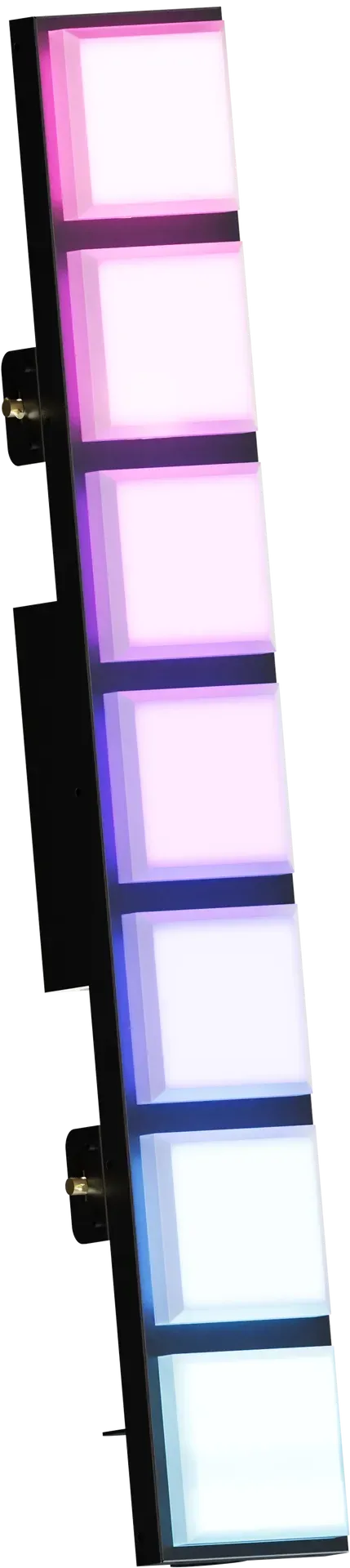

  • 196x RGB 3-in-1 SMD 5050 LEDs arranged in 7 block zones
  • 4 horizontal sections per block for smooth gradient control
  • 120 degree wide viewing angle
  • 0 to 100 percent dimming and variable strobe
  • DMX channel modes: 3, 4, 5, 7, 21, 28, 84, 87
  • Block-level and section-level pixel grouping
  • Convection cooled for zero fan noise
  • +5V USB output for wireless accessories
  • 5-pin DMX in and out
  • PowerCON© TRUE1 power in and out
  • Free-standing tripod mount, Omega bracket mounting, and linking hardware included
  • 2-year limited warranty
  • 196x RGB 3-in-1 SMD 5050 LEDs arranged in 7 block zones
  • 4 horizontal sections per block for smooth gradient control
  • 120 degree wide viewing angle
  • 0 to 100 percent dimming and variable strobe
  • DMX channel modes: 3, 4, 5, 7, 21, 28, 84, 87
  • Block-level and section-level pixel grouping
  • Convection cooled for zero fan noise
  • +5V USB output for wireless accessories
  • 5-pin DMX in and out
  • PowerCON© TRUE1 power in and out
  • Free-standing tripod mount, Omega bracket mounting, and linking hardware included
  • 2-year limited warranty

Options

No items found.
Add to Cart
›
Find a Reseller ›

Backed by our 2-year extendable warranty

Backed by our 3-year extendable warranty

Backed by our 7-year warranty

Backed by our 2-year warranty

Backed by our 6 month warranty

Backed by our 90 day warranty

Backed by our 1-year warranty

Backed by our limited lifetime warranty

Same DNA, New Size

Built on the Spektro platform, Lil’ Spektro uses the same block and section logic that made the full-size unit a favorite designers. The smaller footprint opens new layout possibilities without changing your programming workflow.

Get Creative

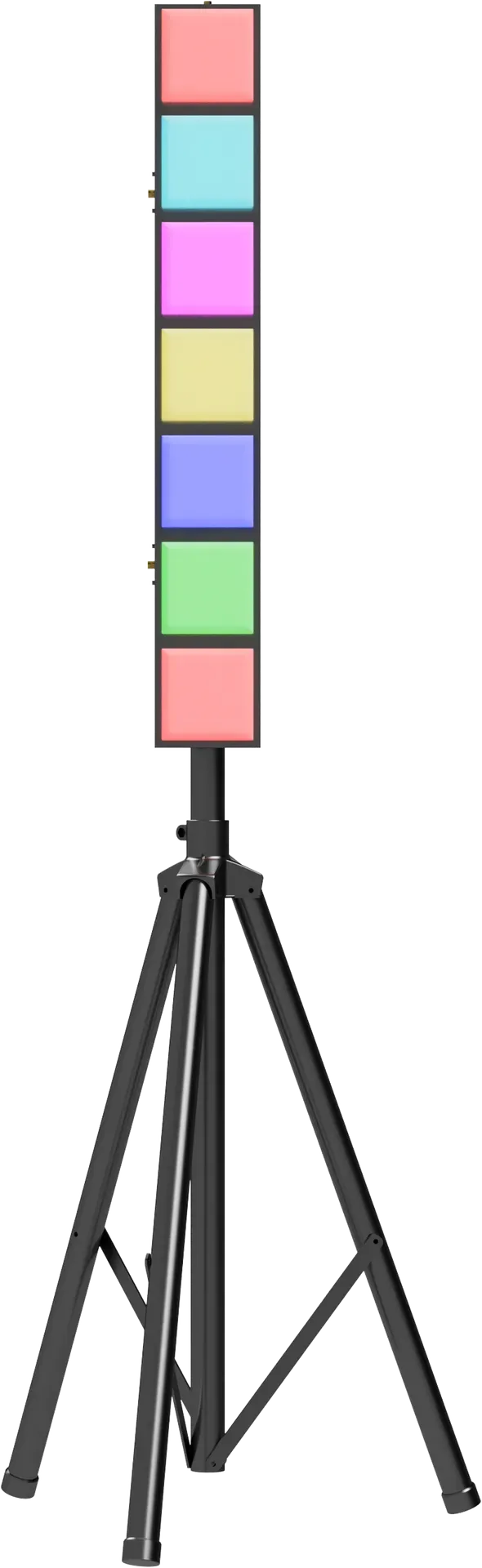

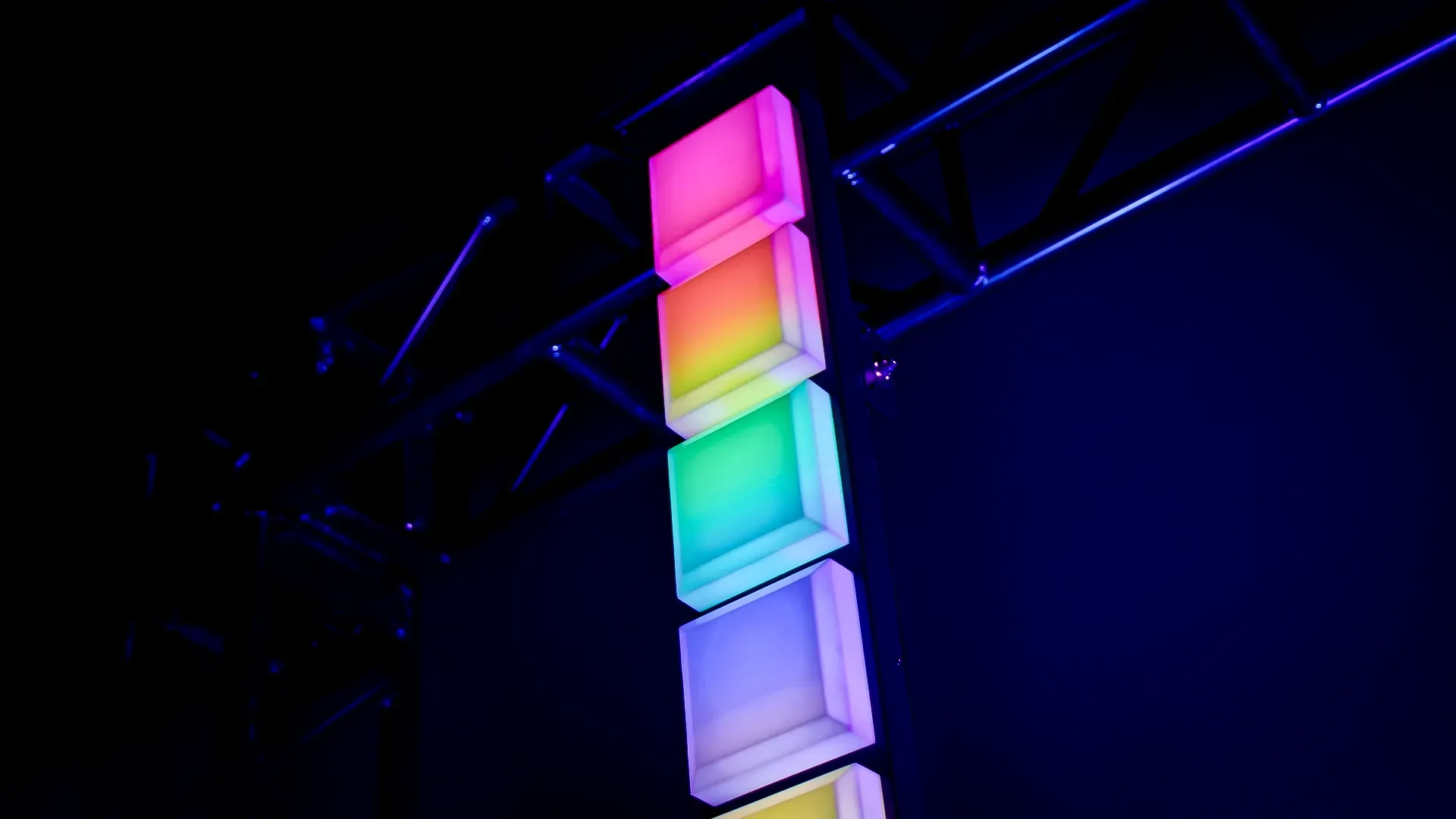

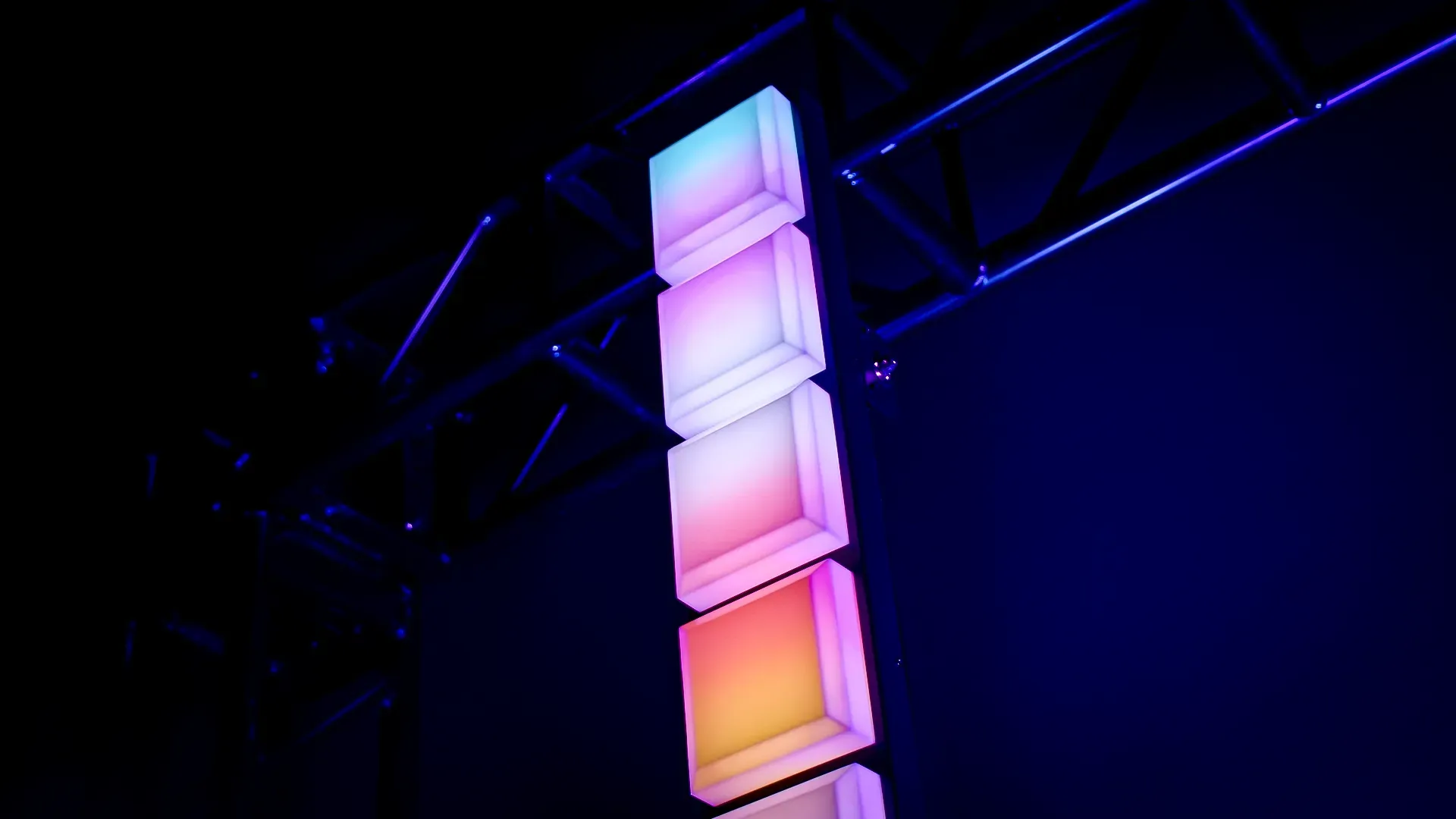

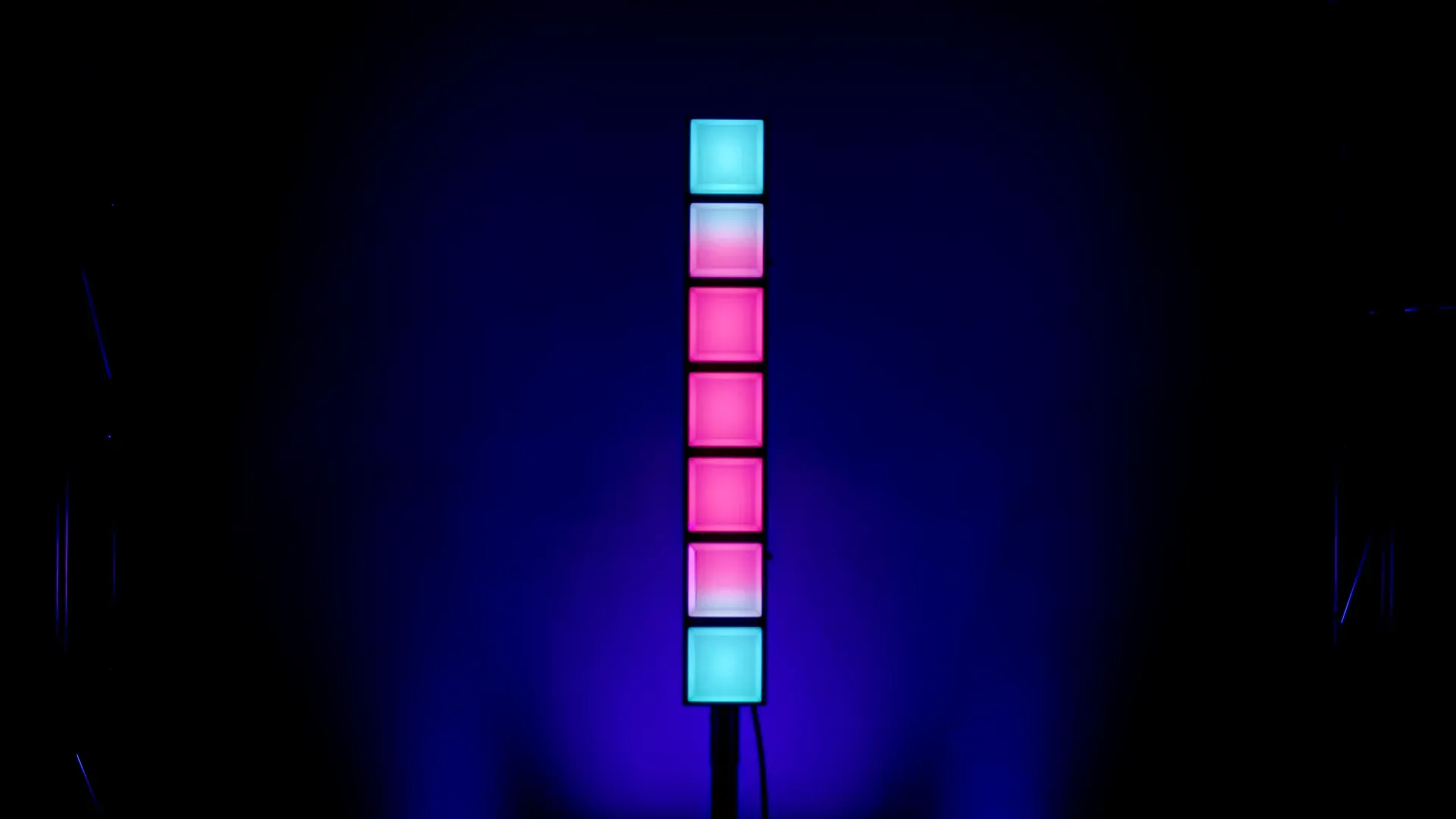

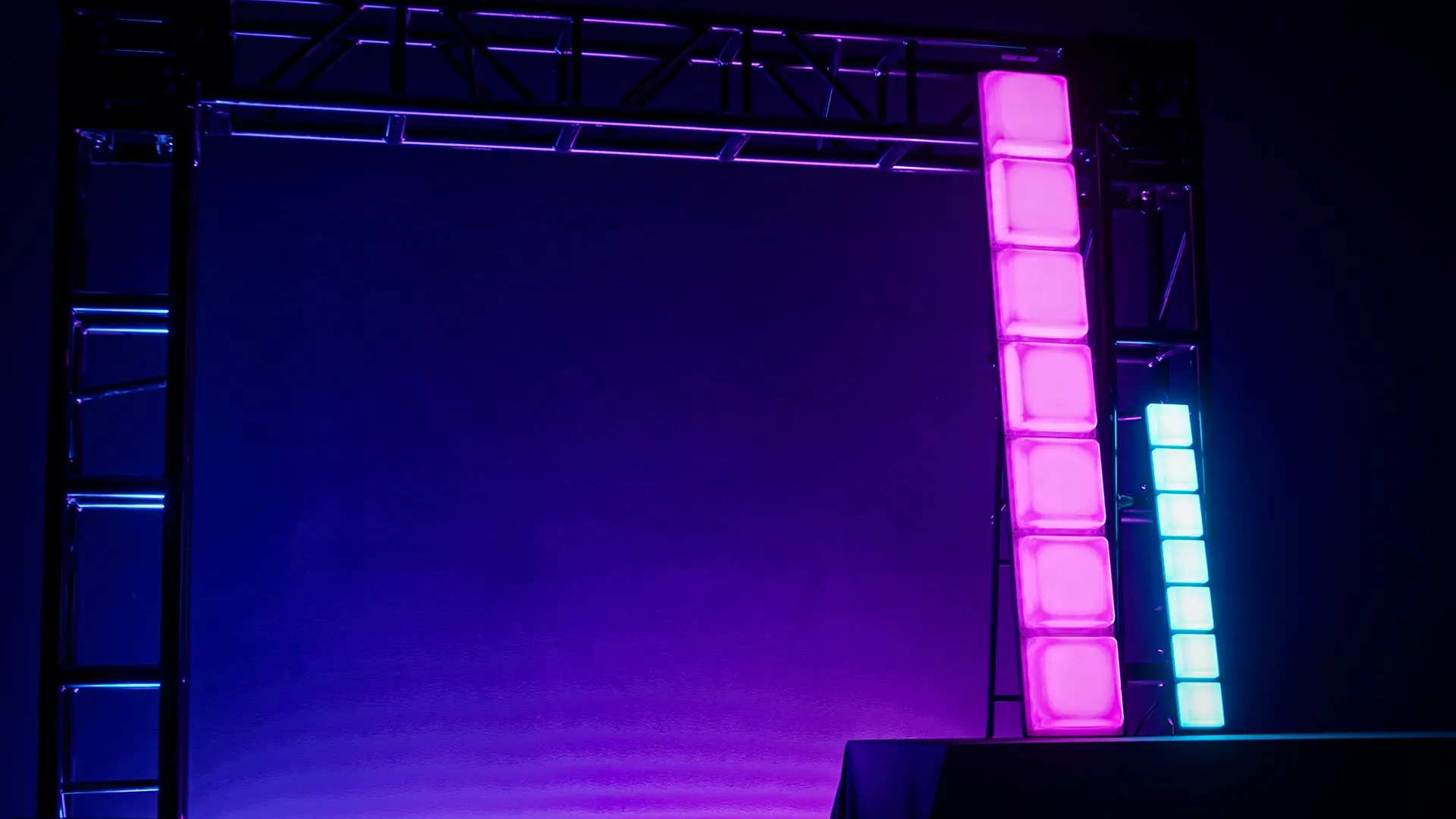

Link multiple units, angle it on a stand, or mount it to truss. Lil’ Spektro adapts to your layout, which makes it a versatile building block for pixel art and structural color.

Same DNA, New Size

Built on the Spektro platform, Lil’ Spektro uses the same block and section logic that made the full-size unit a favorite designers. The smaller footprint opens new layout possibilities without changing your programming workflow.

Get Creative

Link multiple units, angle it on a stand, or mount it to truss. Lil’ Spektro adapts to your layout, which makes it a versatile building block for pixel art and structural color.

This product is backed by our

2 Year - Extendable

warranty.

Learn more here.

Tech Specs

The Rundown
  • 196x RGB 3-in-1 SMD 5050 LEDs arranged in 7 block zones
  • 4 horizontal sections per block for smooth gradient control
  • 120 degree wide viewing angle
  • 0 to 100 percent dimming and variable strobe
  • DMX channel modes: 3, 4, 5, 7, 21, 28, 84, 87
  • Block-level and section-level pixel grouping
  • Convection cooled for zero fan noise
  • +5V USB output for wireless accessories
  • 5-pin DMX in and out
  • PowerCON© TRUE1 power in and out

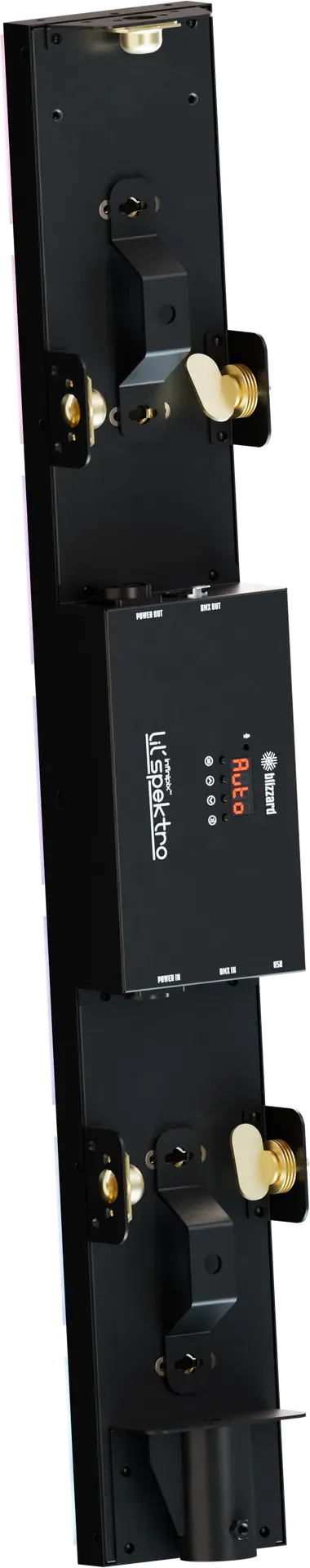

  • Free-standing tripod mount, Omega bracket mounting, and linking hardware included
  • 2-year limited warranty
Summary
InfiniPix™ Lil’ Spektro carries the DNA of the full-size InfiniPix™ Spektro in a smaller, modular chassis that fits tight spaces and creative layouts. It features 196 RGB LEDs arranged into 7 blocks, each with 4 horizontal sections for controlled gradients and pixel transitions. Designers can choose between simple RGB channel modes or full 87-channel section-level control depending on the level of detail required. With multiple rigging options, a flip-out stand, and reliable PowerCON© TRUE1 connectivity, Lil’ Spektro integrates easily into rigs that demand color accuracy, predictable mapping behavior, and flexible placement.
Certifications

Optical

  • LEDs: 196x RGB 3-in-1 SMD 5050 LEDs

  • Viewing Angle: 120 degrees

    • Control

  • Protocol: USITT DMX-512, RDM

  • DMX Channels: 3 / 4 / 5 / 7 / 21 / 28 / 84 / 87

  • Interface: 4-button LED menu

  • Modes: DMX512, Master / Slave, Standalone, Auto, Sound Active

    • Movement
    Power & Current

  • Operating Voltage: AC 110 to 240 V, 50 to 60 Hz

  • Power Consumption: 45 W (0.61 A, PF 0.64)

  • Max Ambient Temp: 104 °F

    • Dimensions

    31.7" x 4.6" x 3.8"

    7.4 lbs

    lbs

    General Specs
    Connectors

    Hang Time

    /10

    Density

    /10

    Rigging & Application
    Tech Specs
    Wireless Info
    In the Box

    Downloads & Manuals
