Lil G™

Small In Stature, But Big Where It Counts!


Tiny Yet Mighty

Say hello to Lil G™, a powerful mini moving spot head packed with many of the same high quality features found in larger professional moving head fixtures. Under the hood, Lil G™ has an impressively bright 40W LED light source with 9° optics capable of producing beautiful beams. With 9 gobo patterns + open, 7 color + white color wheel, bi-directional color/gobo rotation, rainbow flow effects, & gobo shake, plus fast and precise 540° pan and 220° tilt, this baby is a super aerial performer in a tiny, lightweight package!

Easy Peasy Control

Controlling the Lil G™ is a breeze using just 11-channels of DMX or by using its 4-button LCD control panel. Both offer complete control of every available feature, including pan/tilt with fine 16-bit adjustments and speed control, ultra-smooth 16-bit dimming, strobe (1Hz-10Hz), bi-directional color wheel, bi-directional gobo wheel, auto mode, sound active mode, and fixture reset.

Main Features

* Ultra-bright 40W white LED source * Pan: 540º/ Tilt: 220º (8-16 Bit Resolution) * 9° beam angle * 7 color + white color wheel with rainbow effect * 9 fixed gobos + open w/bi-directional rotation and shake * Built-in automated programs via master/slave * Built-in sound activated programs via master/slave * Ultra-smooth 16-bit dimming system * Defeatable pan/tilt correction with trim adjustment * Intelligent fan cooling system with temperature auto detect * Easy-to-use 4-button LCD control panel menu * 1-10Hz/second strobe effects * 3-pin male input and 3-pin female output * Compact, high quality housing

Product Specifications


Light source: 40-watt white LED

9° Beam Angle

Luminous Intensity (Lux): 30,810 @ 1m | 1,486 @ 5m


Pan: 540º (8-16 Bit Resolution)

Tilt: 220º (8-16 Bit Resolution)

Weight & Dimensions

Width: 7.9 inches (20.1 cm)

Depth: 7.7 inches (19.6 cm)

Height: 12.5 inches (31.7 cm)

Weight: 7.7 lbs (3.5 kg)


Protocol: USITT DMX-512

DMX Channels: 11

Operating Modes: Standalone, Master/Slave, Sound Active

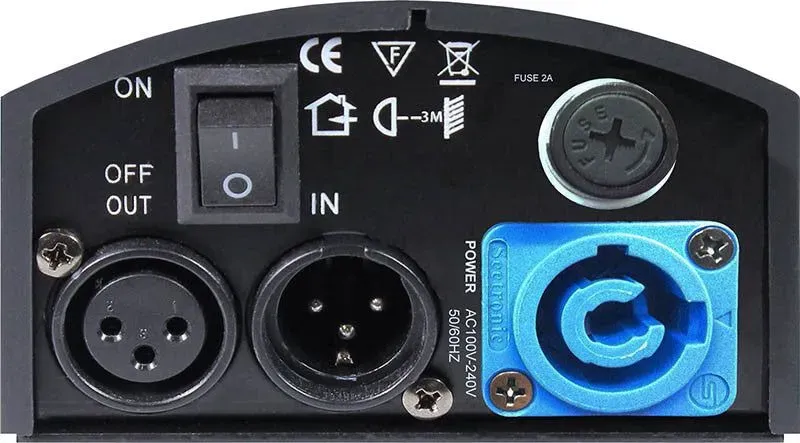

Input: 3-pin XLR Male

Output: 3-pin XLR Female

LCD 4-button control panel

Power & Current

AC 110-240VAC, 50/60 Hz
Consumption: 59W, .79A, pf: .63


2-year limited warranty, does not cover malfunction
caused by damage to LEDs.
