This product has been discontinued.
SKU:
124671
499.99
Options
Combine intense WW LEDs, RGB background LEDs, and RGB FX rings for a triple-threat party starter. Use the WW for strobes or a warm glow, and bring in the RGB in time for the drop.
Built-in RDM (remote device management) makes it easy to change addresses, channel modes, and switch operating modes. RDM functions require an RDM-compatible controller, like the Cueslayer™ or Stingray™.
Combine intense WW LEDs, RGB background LEDs, and RGB FX rings for a triple-threat party starter. Use the WW for strobes or a warm glow, and bring in the RGB in time for the drop.
Built-in RDM (remote device management) makes it easy to change addresses, channel modes, and switch operating modes. RDM functions require an RDM-compatible controller, like the Cueslayer™ or Stingray™.

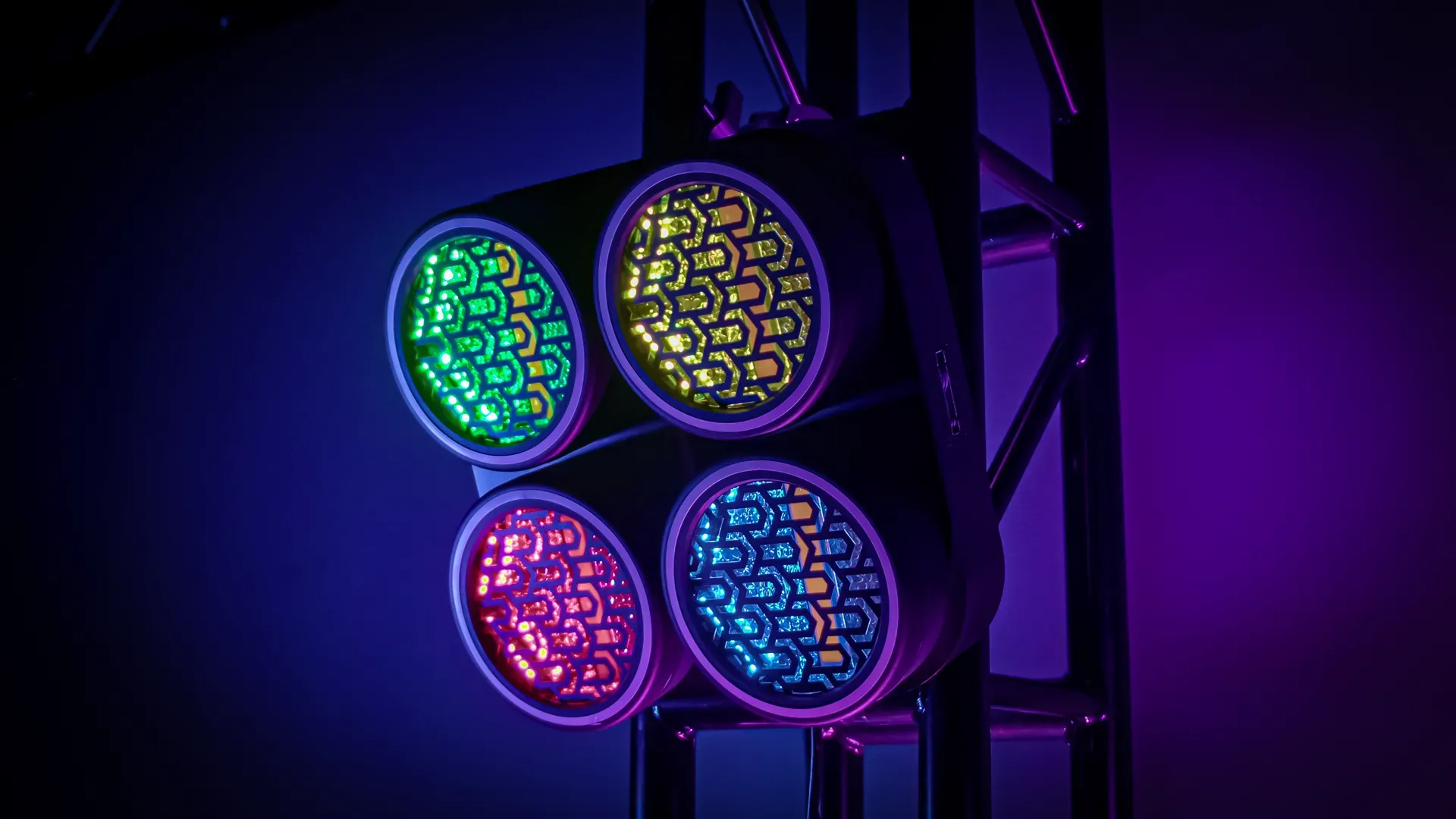

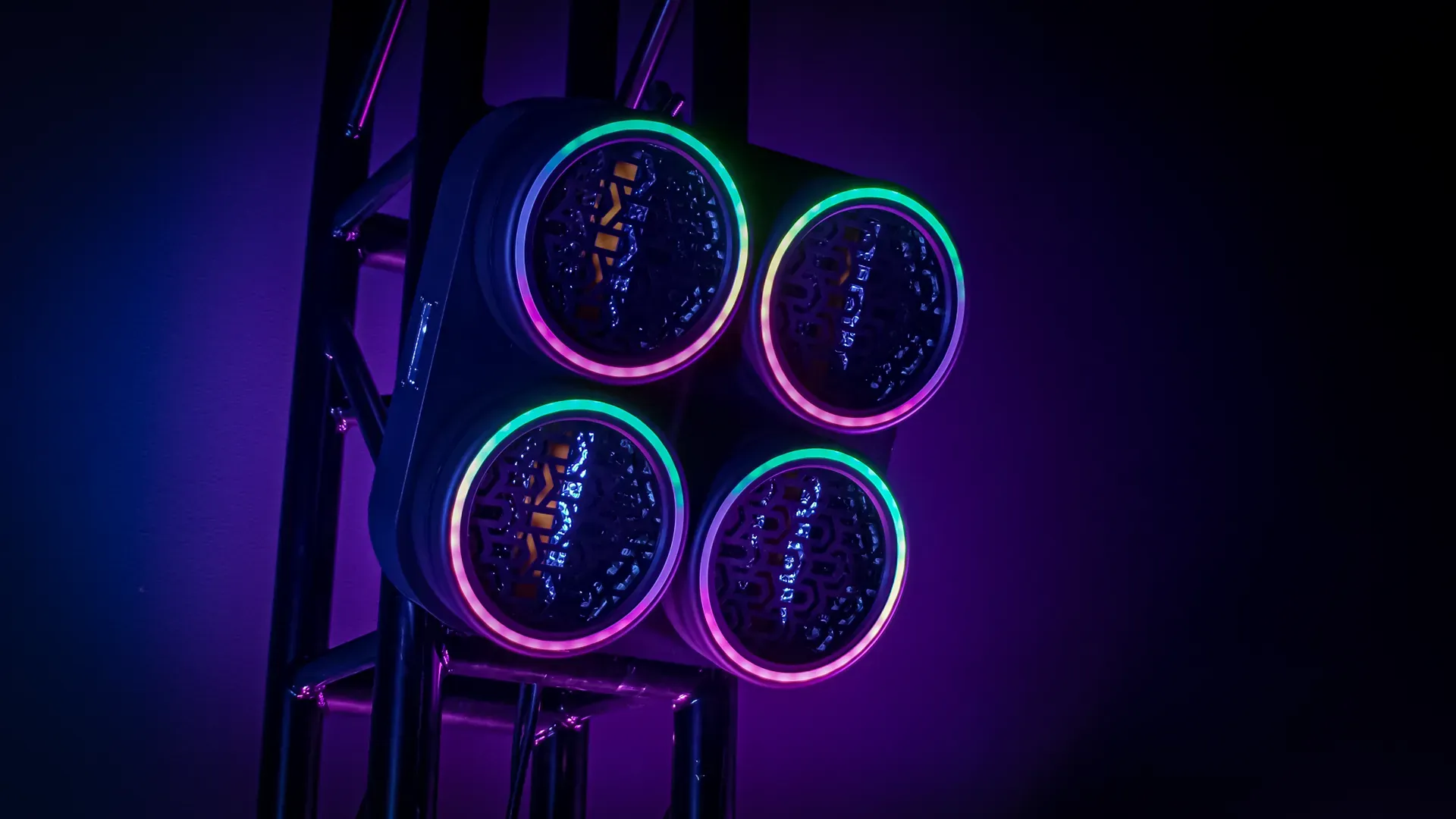

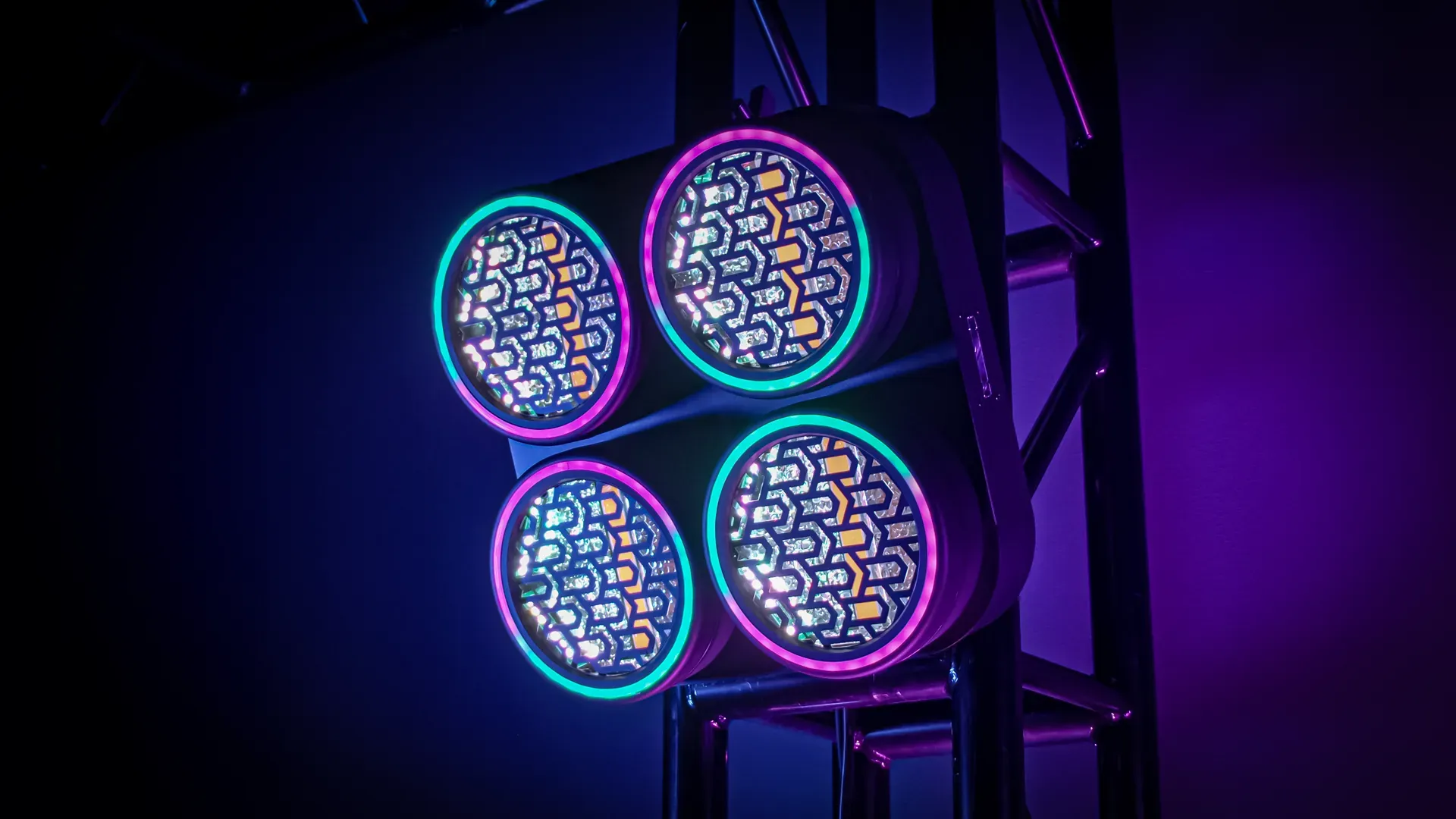

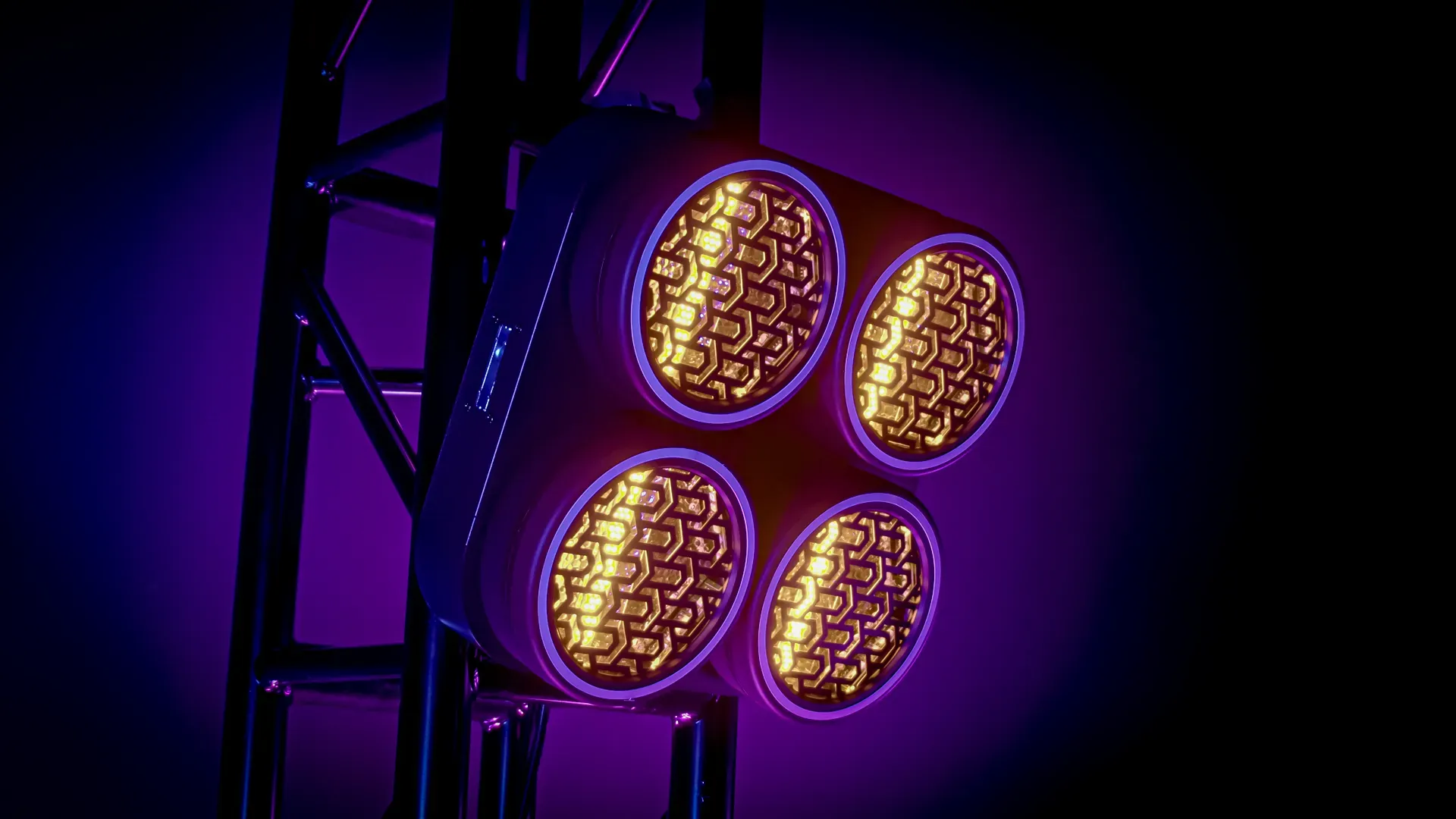

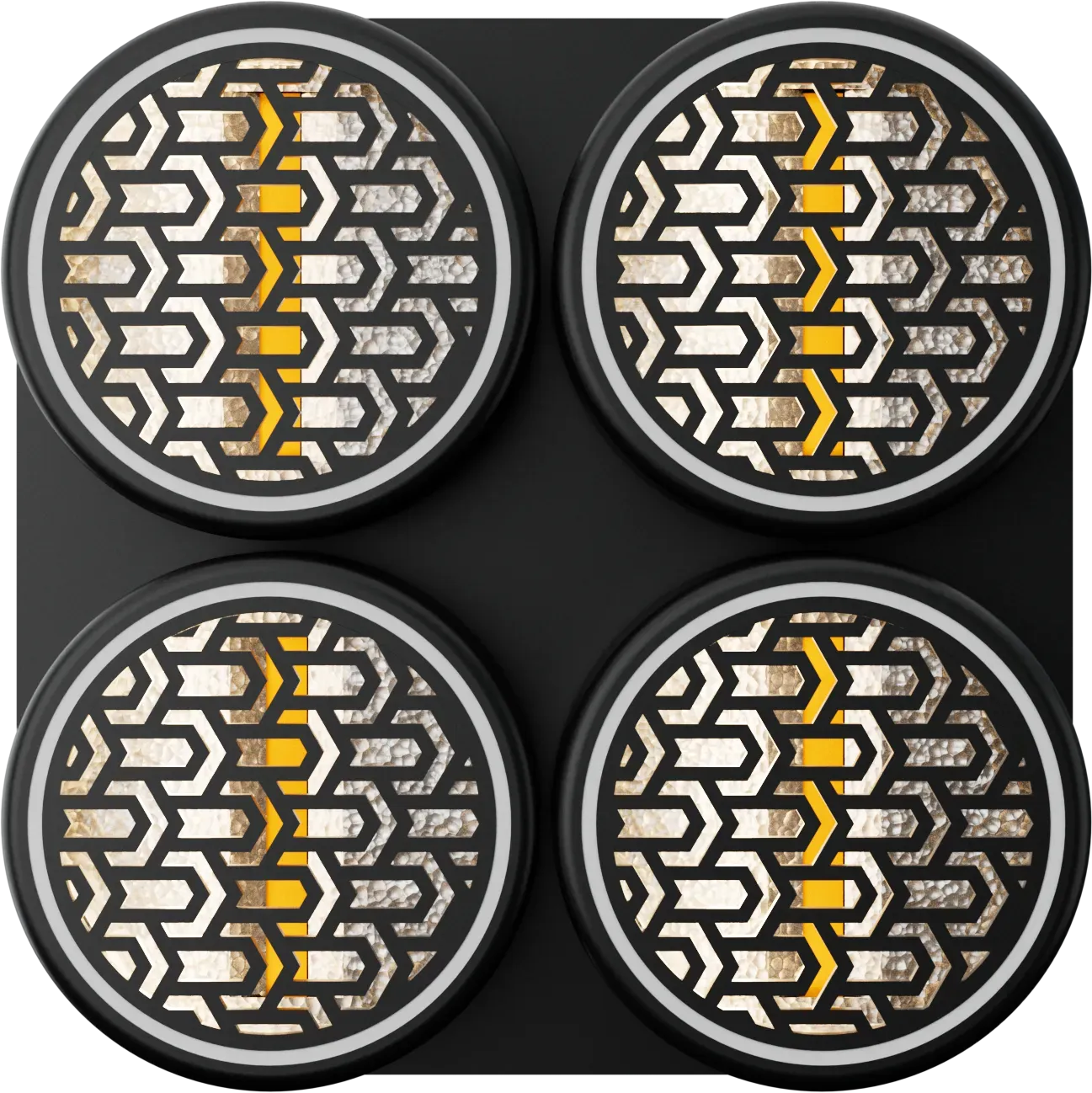

The Lux Quadra™ X4 is a quad-cell blinder and RGB effect fixture that combines 1900K vintage-style warm white (amber) output with vibrant background and ring effects. Each cell features 1 x 50W WW LED with 32 x 0.2W RGB background LEDs that reflect off the aluminum inner housing, and surrounding each cell is a ring of 31 x 0.2W RGB LEDs that create dynamic color effects.

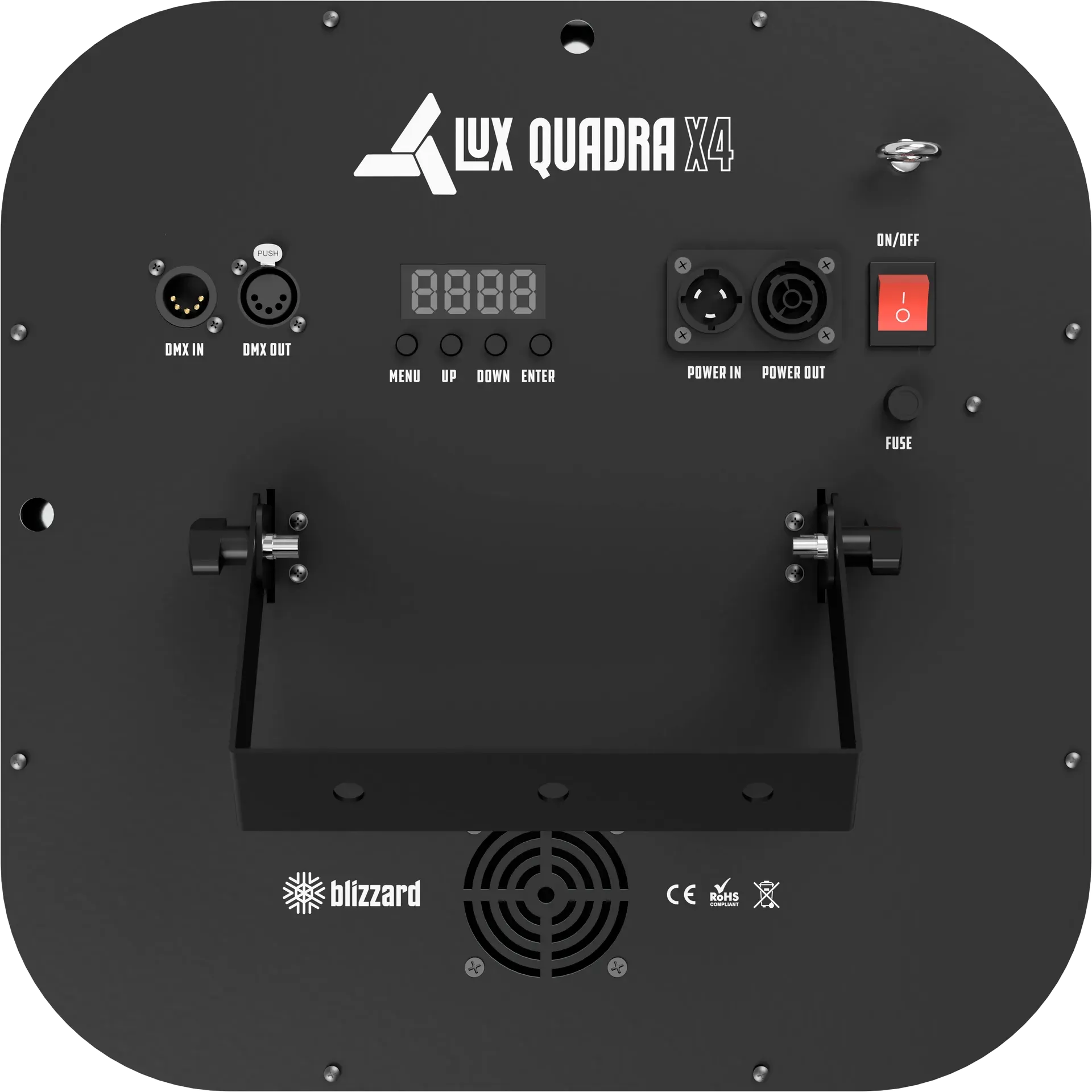

This fixture offers 11/23/32-channel DMX modes with separate or combined LED cell control, multiple built-in programs, and sound active operation. Variable dimming and 1–25 Hz strobe effects add flexibility, while its metal housing with interlocking side latches, 4-button control panel, 5-pin DMX in/out, and powerCON® TRUE1-compatible connectors make setup quick and reliable.
CE, RoHS
Light Source: 4x 50W warm white 1900K LEDs, 252x 0.2W RGB LEDs (BG + rings)
Luminous Intensity: 300 Lux @ 2.5M, 84 Lux @ 5M
Protocol: USITT DMX-512, RDM
DMX Channels: 11/23/32-channel DMX modes
Input/Output: 5-pin DMX in/out
Operating Modes: M/S, Sound Active, Auto
4-button LED control panel menu
Operating Voltage: 100-240VAC, 50-60 Hz
Power Consumption: 198W, 2.18A, PF: .79
Input/Output: powerCON® TRUE1-compatible in/out
15" x 15" x 7.1"
14.7
lbs
/10
/10
