Lux / Meter





Beautiful, Bright Output

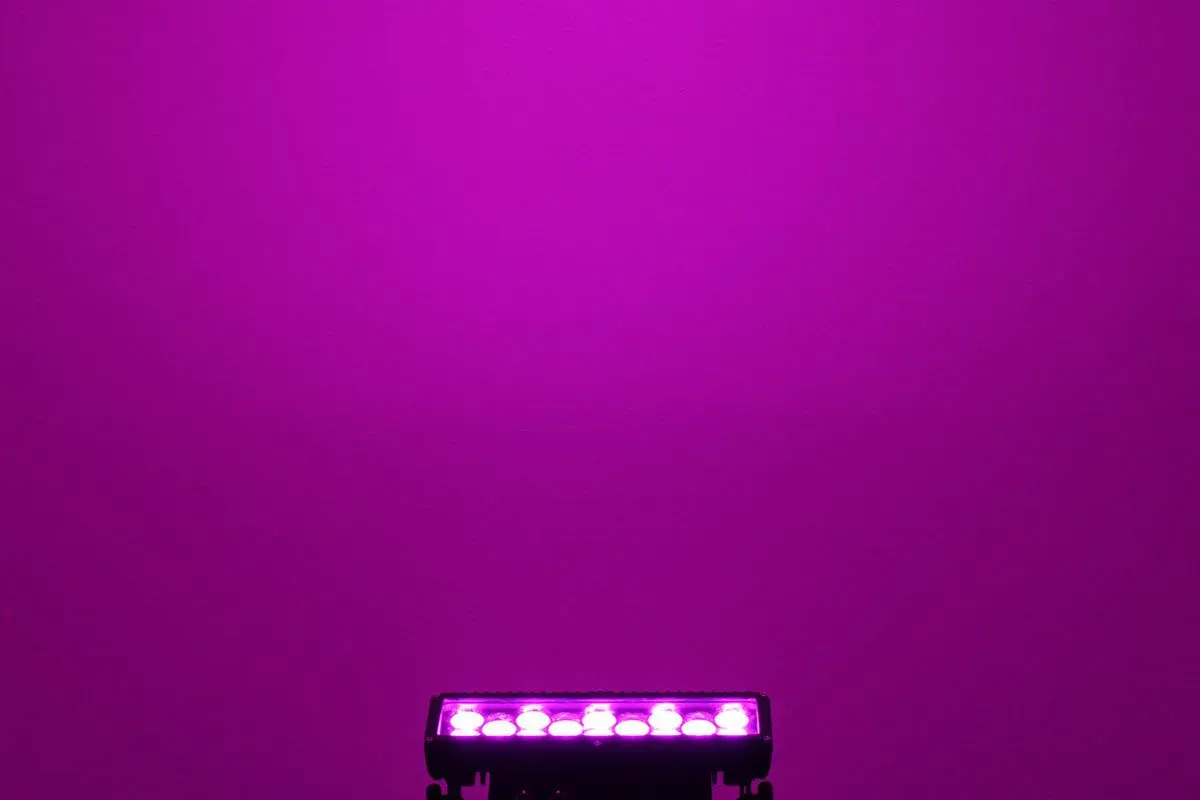

Everyone admires Fresco™! He's got swagger and he's equipped with just the right parts, like 14x 3-watt TRI-color LEDs, to either lighten the mood with a soft, gentle touch... or create a stimulating, breathtaking atmosphere. It’s got thick skin - IP65 to be exact! Yep, take this beauty outdoors with no worries. His qualities make him ideal for architectural lighting applications.

A True Outdoorsman

Control the Motif Fresco™ in full via IR remote control (sold separately), or, opt for 3/5 or 7-Channels. Did we happen to mention how quiet Fresco is? Its advanced heat sink design means zero fan noise… AKA zero distractions! Its durable cast aluminum housing and tempered glass lens and watertight internal gaskets ensures it handles the rugged, rough outdoors with ease.

Main Features

* Exceptional RGB color mixing from 14x 3-watt TRI-color LEDs * Fully controllable via IR remote (sold separately) * Advanced heatsink design for zero fan noise * Extended IP rated power and DMX connections * Secure mounting bracket * Multiple built-in color presets and auto programs * User adjustable program speed & fade times * 0-100% variable electronic dimmer * Variable electronic strobe * Durable cast aluminum housing * Tempered glass lens and watertight internal gaskets

Product Specifications


Light source: 14x 3-watt TRI-color LEDs, 100,000 hours

Beam Angle: 28 degrees

Luminous intensity: 2,010 Lux @ 2m

Weight & Dimensions

Width: 11.6 inches (30.1 cm)

Depth: 3.6 inches (9.1 cm)

Height: 4.9 inches (12.5 cm)

Weight: 5.6 lbs (2.6 kg)


Protocol: USITT DMX-512

DMX Channels: 3/5 or 7-Channel

3-pin XLR Input/Output

Standalone or Master/Slave

IR-1 Remote (sold separately)

Power & Current

Operating Voltage: 100-240VAC, 50-60 Hertz

Power Consumption: 44W, .68A


2-year limited warranty, does not cover malfunction caused by damage to LEDs


  • Cutsheet



  • Manual
    Rev C
