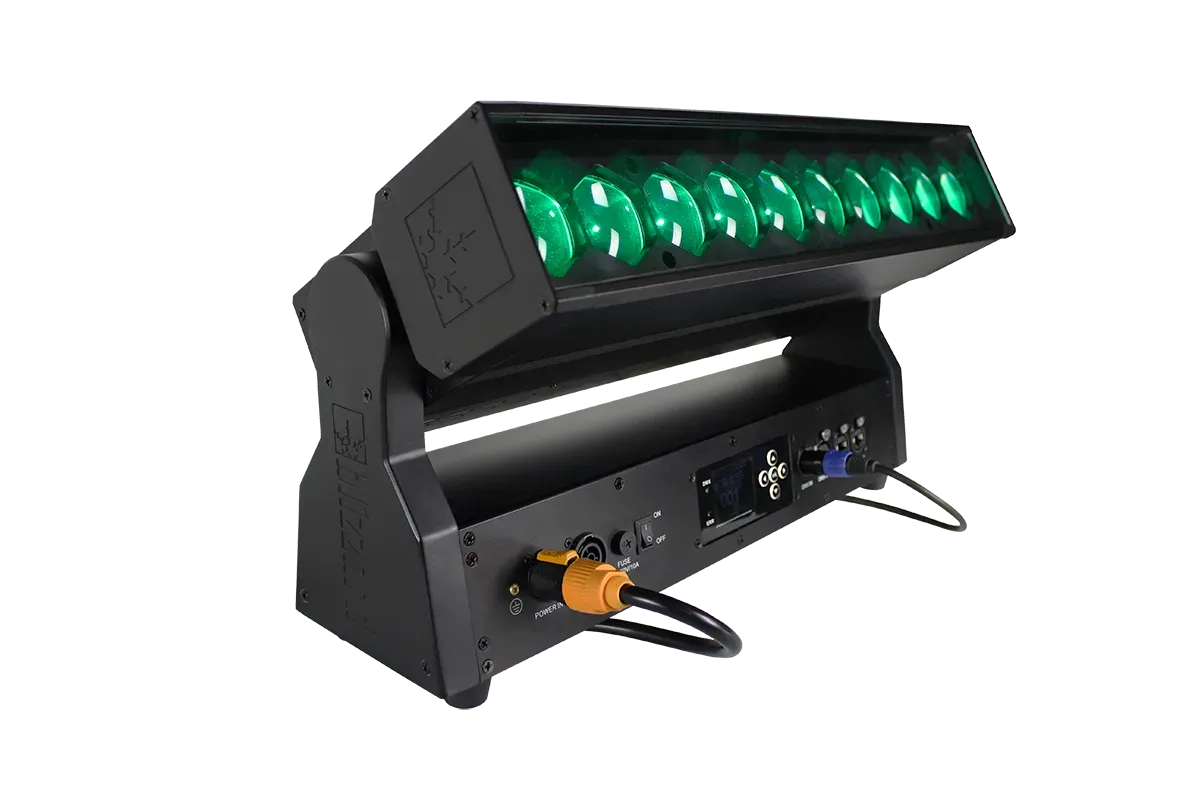

MystACL™ Z

10x 30W LED Zoom Bar with Motorized Tilt

$1,649.00

MystACL™ Z Buy

Expected Shipping Date: November 15, 2019

RGBW LEDs + Zoom

MystACL™ Z is a high-performance LED bar loaded with 10* 30W OSRAM™ Ostar 4-in-1 RGBW LEDs. DMX control offers full pixel mapping capabilities, plus 3 to 60 degree zoom, creating effects that range from a narrow angle light curtain to a wide angle wash.

Loaded with Features

It also features 210 degree motorized tilt (8-16 bit), unique 3-layer pixel set & macro effects, multiple built-in programs, color presets, 3/5-pin DMX + RJ45 input/output connections (Art-Net ready), and powerCON® TRUE1-compatible power input/output connections.

Main Features

* 10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours

* Fast and precise 3-60° zoomable beam angle

* 8-16 bit motorized 210 degree tilt

* Single or dual pixel mapping capabilities via DMX

* 3-layer effects via DMX with configurable pixel sets & macros

* Built-in macros with patterns + multiple color presets

* Smooth electronic dimming, 0-100%

* 1-10Hz strobe effects

* Efficient low noise fan cooling system

* 3/5-pin DMX + RJ45 input/output connections

* PowerCON® TRUE1-compatible power input/output

* Dual omega brackets with 1/4-turn fasteners

Product Specifications

Overview


8-16 bit motorized 210 degree tilt

10,524 Lux @ 2.5M (narrow) 1,015 Lux @ 2.5M (wide)

6,105 Lux @ 5M (narrow) 241 Lux @ 5M (wide)

Flicker-free LEDs

Optical


10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours

3-60° zoomable beam angle

Weight & Dimensions


19.7" x 5.9" x 13.4" (50 x 15 x 34 cm)

20.1 Lbs. (9.5kg)

Control


Protocol: USITT DMX-512, Art-Net

DMX channels: 13/26/28/46-channel modes

Easy-to-use 5-button control panel with LCD display

Operating modes: DMX512, master/slave, auto, sound active

Power & Current


100-240VAC, 50-60Hz

Power Consumption: 261W, 2.26A, PF: .99

PowerCON™ TRUE1-compatible AC power In/Out

Warranty


2-year limited warranty

Downloads

  • Cutsheet

    Download

    mystacl-z_cutsheet.pdf

  • Manual
    Rev A

    Download

    mystacl-z_manual_rev_a.pdf
