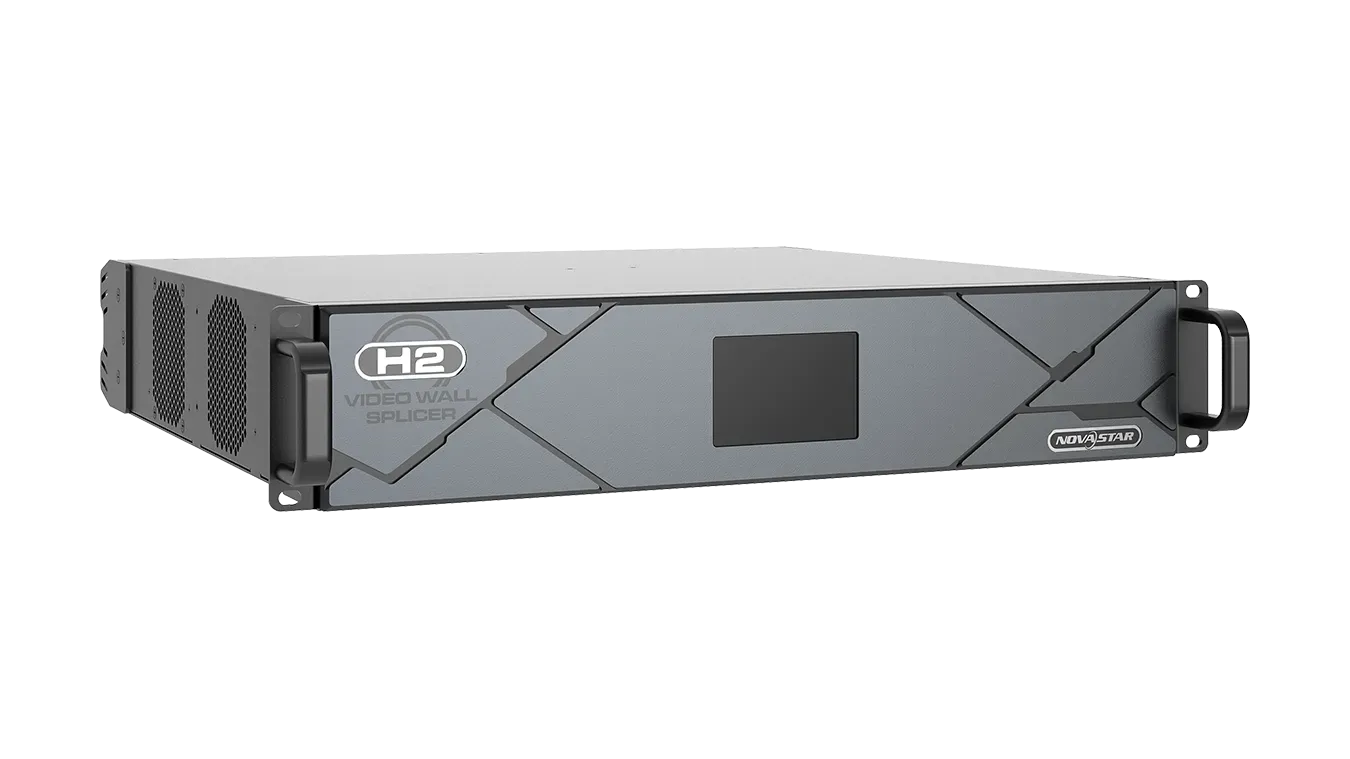

NovaStar™ H2 2 Rack Space Processor / Splicer

NovaStar™ H2

$699.00

SKU: 124310

  • 2 rack space unit with control card and PS
  • Multi-screen management for centralized control
  • Modular plug-in component configuration
  • Minimum plug-in module components needed = 1 input + 1 output
  • Diverse display possibilities for richer visual experience
  • Easy, friendly, and convenient webpage control
  • Status monitoring and optional backup power supply
Ships in 2-3 Weeks

Custom-build your H Series processor. To get started, complete your checkout today or enter your email for more information / to request a demo.

- +
Add to Cart
Where Else to Buy

Suggested Products

3.9mm Outdoor, SMD 1921 LEDs

Add to Cart - $1,499.99

9 Rack Space Processor / Splicer

Add to Cart - $2,199.00

Our Flagship Lighting Console

Add to Cart - $1,899.99

2.3M pixels (CVBS, VGA, DVI, HDMI, DP, SDI)

Add to Cart - $1,099.00

Video Splicing Processor

H Series is NovaStar's flagship all-in-one video splicing processor, designed specifically for fine-pitch LED applications. It is the first All-in-One splicer and controller in the industry, which greatly simplifies system integration. With the leading image processing technology in the industry, H series can give you an astonishing visual effect, truly making it the perfect solution for fine-pitch LED applications.

Flexible Configuration

H2 offers a modular plug-in design, with a variety of connector modules available. It comes with the control card and power supply. A minimum of 1 additional input card, and 1 output card is required for full functionality.

Available Cards Description
H_4xDVI 4x DVI Input Card
H_4xHDMI 4x HDMI Input Card
H_1xHDMI2.0 1x HDMI2.0 Input Card
H_1xHDMI2.0+1xDP1.2 1x HDMI2.0 + 1x DP1.2 Input Card
H_2xRJ45 IP 2x RJ45 IP Camera Input Card
H_4x3G SDI 4x 3G-SDI Input Card
H_12G SDI Input Card 1x 12G SDI Input Card
H_2xCVBS+2xVGA 2x CVBS + 2x VGA Input Card
H_4xVGA 4x VGA Input Card
H_16xRJ45+2xFiber 16x Ethernet Output Port and 2x Optical Ports
H_2xRJ45+1xHDMI1.3 2x Ethernet and 1x HDMI1.3 for Monitoring
H_20xRJ45 20x Ethernet Port Output Card
H_800W H Series Power Module (optional backup)

Product Summary

True 4K Video Processing

H Series utilizes a full hardware slot structure with high-performance FPGA processing and ultra-speed crosspoint matrix switching technology, providing you with powerful signal processing capabilities.

Specs

Overview

Rack space: 2U

Minimum cards = 1 input, 1 output

Input cards: 4 max.

Input channels: 16 max.

Output cards: 2

Load capacity (4K card): 26m pixels

Max. layers: 32

In the Box

Power cord

RJ45 Ethernet cable

Grounding cable

HDMI cable

Quick start guide

Certificate of approval

Safety manual

Power

100-240VAC, 50/60Hz

Power consumption: 210W

10A-5A

Backup PS: optional

Warranty

3-year warranty

Dims & Weight

19" L x 3.5" W x 18" H

34.4 lbs

Downloads
