This product has been discontinued.

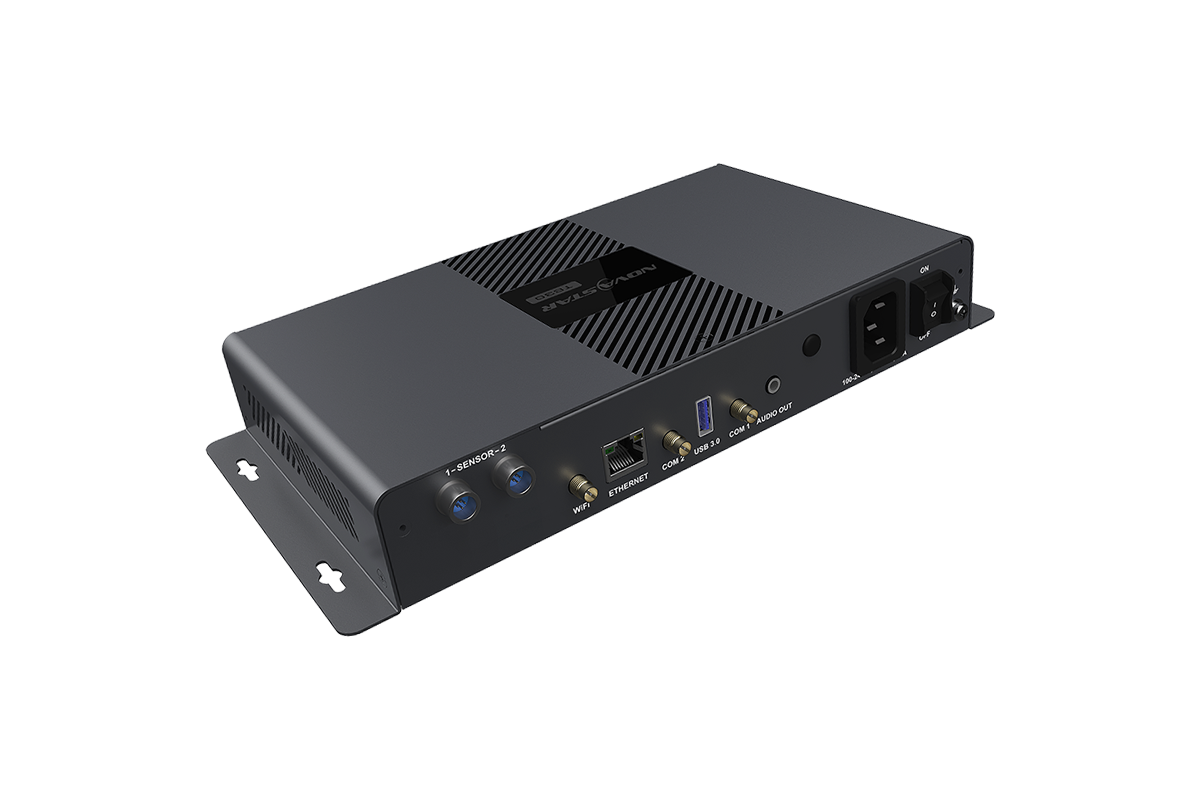

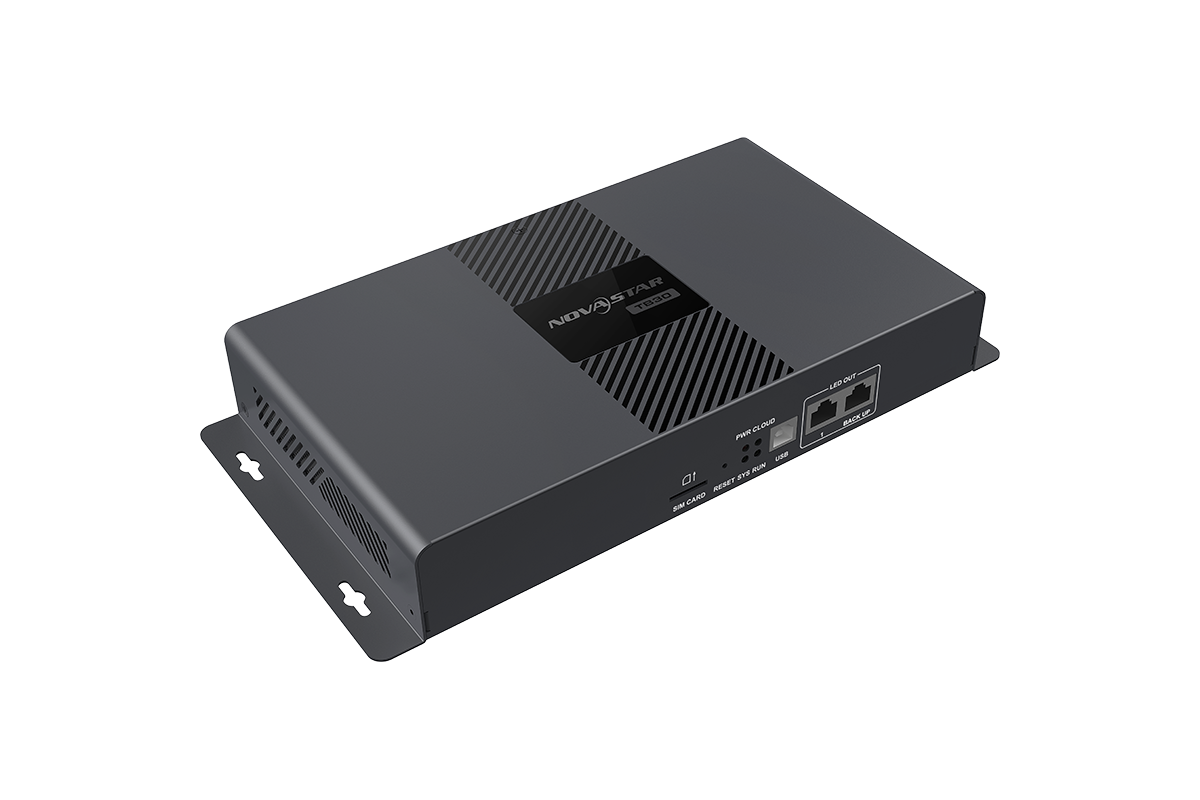

NovaStar™ TB30

SKU:

124353

388.00

  • Loading capacity up to 650,000 pixels
  • Synchronization mechanism for multi-screen playing
  • Powerful processing capability
  • Loading capacity up to 650,000 pixels
  • Synchronization mechanism for multi-screen playing
  • Powerful processing capability

No items found.

Options

No items found.

HD Multimedia Player

The TB30 is the third generation of multimedia player created by NovaStar for full-color LED displays. It integrates playback and sending capabilities, allowing users to publish content and control LED displays with a PC, mobile phone, or tablet. The TB30 replaces the TB3 as the recommended multimedia player for its class.

Intelligent Control

Thanks to its reliability, ease of use, and intelligent control, the TB30 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and more.

Tech Specs

Manage via PC, Smartphone, or Tablet

Working with NovaStar's cloud-based publishing and monitoring, the TB30 enables users to manage LED displays from an Internet-connected device anywhere, anytime.

Note:  The NovaStar™ TB3 is discontinued, with the TB30 now being its replacement with comparabe features.

Certifications

Optical
Control
Movement
Power & Current

100-240V~, 50/60Hz, 0.6A

Max. power consumption: 18W

Dimensions

1.6" x 5.5" x 10.8"

2.7

lbs

General Specs

Synchronization display

Powerful processing capability

All-round control plans

Wi-Fi AP and Wi-Fi STA

Synchronous playback across multiple screens

Support for 4G modules (sold separately)

Connectors

1x SIM card slot

1x USB Type B (reserved)

2x Gigabit Ethernet outputs (LED out)

2x Sensor connections

1x Wi-Fi antenna connector

1x Gigabit Ethernet port (LAN/PC)

2x GPS & 4G antenna connectors (COM1 & COM 2)

1x Audio Out

Hang Time

/10

Density

/10

Rigging & Application
Tech Specs

650,000 pixel capacity

16 GB of internal storage

Quad-core ARM A55 processor @1.8 GHz

1x 4K video playback or 2x 1080p video playback

1 GB of onboard RAM

Wireless Info
In the Box
