SKU: 124356
3.9M pixels (HDMI 1.3 / DVI / 3G-SDI + Loop, 10G OPT)
2.3M pixels (CVBS, VGA, DVI, HDMI, DP, SDI)

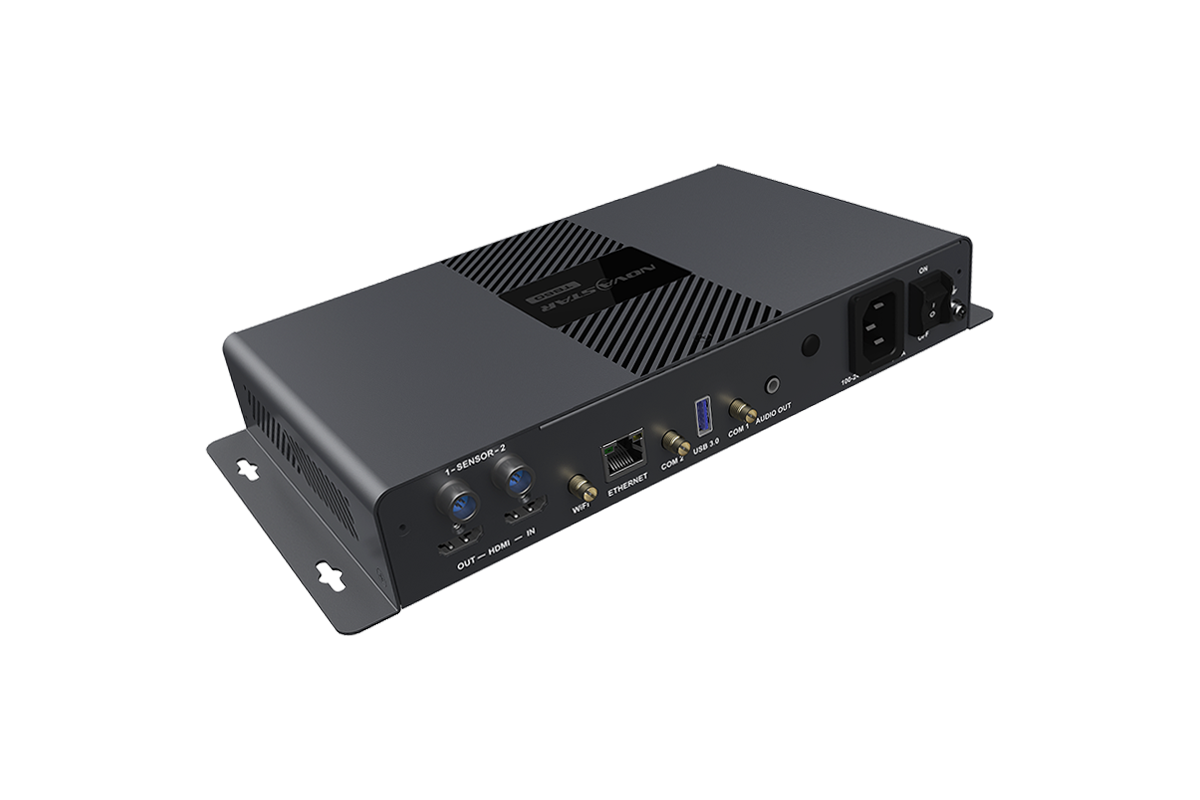

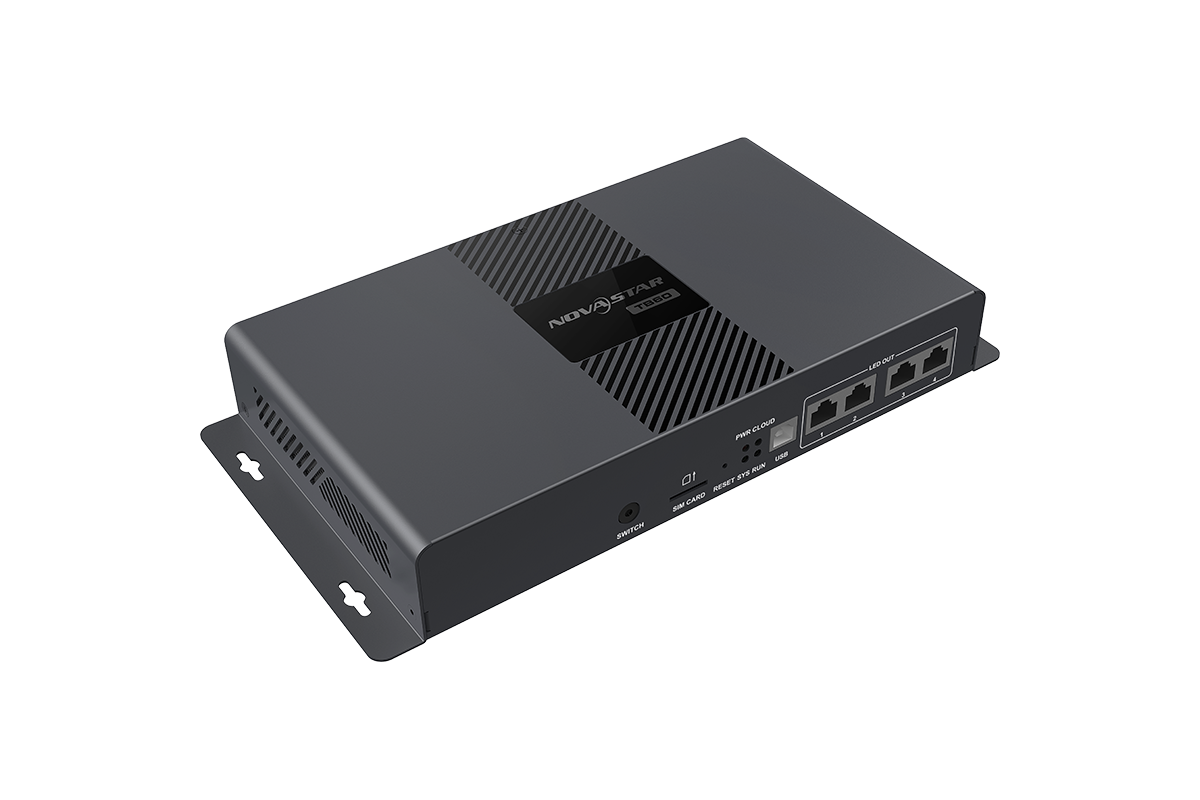

The TB60 is the third generation of multimedia player created by NovaStar for full-color LED displays. It integrates playback and sending capabilities, allowing users to publish content and control LED displays with a PC, mobile phone, or tablet. The TB60 replaces the TB8 as the recommended multimedia player for its class.
Thanks to its reliability, ease of use, and intelligent control, the TB60 becomes a winning choice for commercial LED displays and smart city applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, shelf displays, and more.
Working with NovaStar's cloud-based publishing and monitoring, the TB60 enables users to manage LED displays from an Internet-connected device anywhere, anytime.
Note: The NovaStar™ TB8 is discontinued, with the TB60 now being its replacement with comparable features.
Synchronization display
Powerful processing capability
All-round control plans
Wi-Fi AP and Wi-Fi STA
Synchronous playback across multiple screens
Support for 4G modules (sold separately)
2.3M pixel capacity
16 GB of internal storage
Quad-core ARM A55 processor @1.8 GHz
1x 4K video playback or 2x 1080p video playback
1 GB of onboard RAM
1x SIM card slot
1x USB 3.0 (Type A) port
2x Gigabit Ethernet outputs (LED out)
2x Sensor connections
1x HDMI 1.4 in/out connectors
1x Wi-Fi antenna connector
1x Gigabit Ethernet port (LAN/PC)
2x GPS & 4G antenna connectors (COM1 & COM 2)
1x Audio Out
3-year warranty
10.8" L x 5.5" W x 1.6" H
2.7 lbs
