NovaStar™ VX400 2.9M pixels (HDMI 1.3 / DVI / 3G-SDI + Loop, 10G OPT)

NovaStar™ VX400

$1,279.00

SKU: 124431

Fast, Free Shipping on Orders $99+
- +
Add to Cart
Where Else to Buy

Suggested Products

3.9mm Outdoor, NationStar 1921 LEDs

Learn More

6.5M pixels (HDMI 1.4 / DVI / 3G-SDI + Loop, 10G OPT)

Learn More

3.9mm Outdoor, NationStar 1921 LEDs

Learn More

3.9M pixels (3G-SDI, HDMI, DVI + Loop, USB)

Learn More

All-in-One Controller

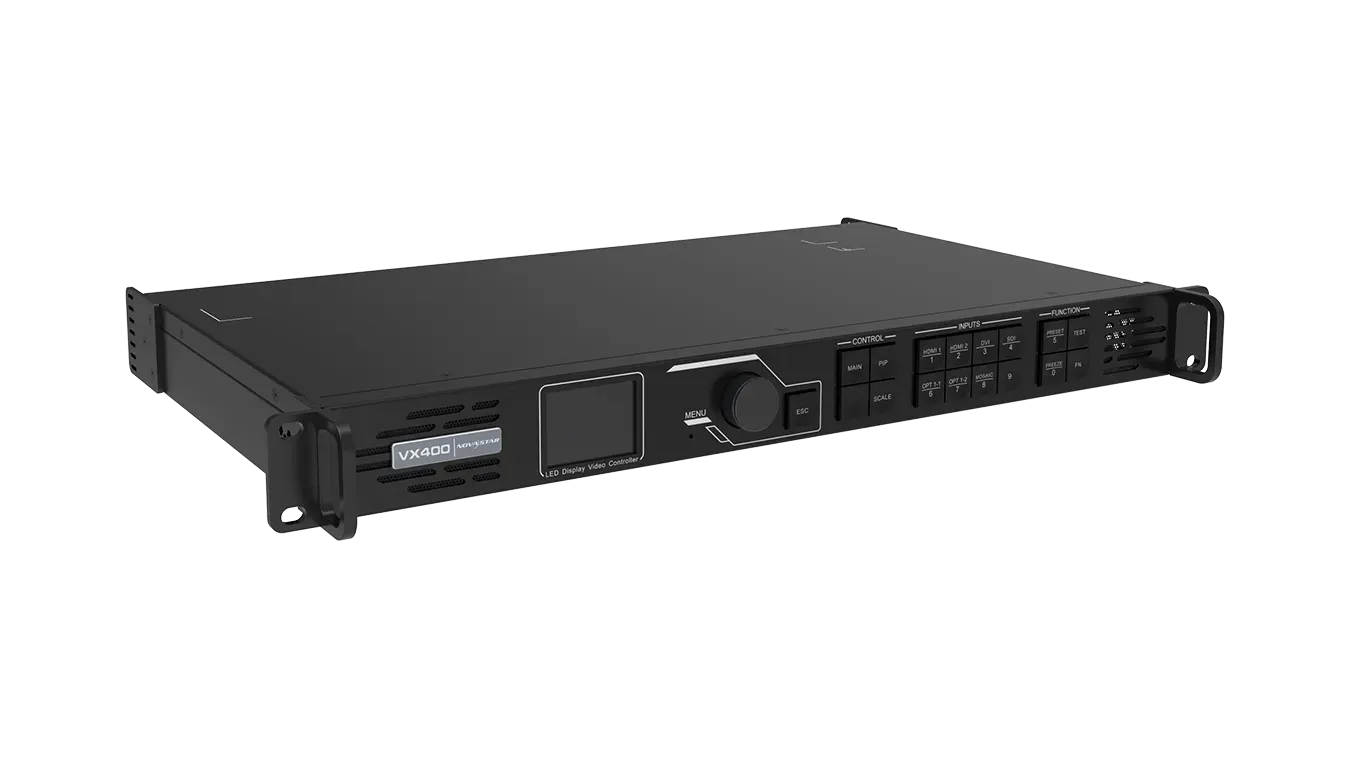

The VX400 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video control, fiber conversion, and bypass working modes. A VX400 unit can drive up to 2.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8,192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

Highly Versatile

The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more to present you with an excellent image display experience. It can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

Product Summary

Controller & Processor

The VX400 is a 4-port 2-in-1 video controller that combines video processing and video control functions. It can be widely used in the field of medium to high-end rental, stage control systems and fine-pitch LED screens.

Specs

Overview

Loading capacity: 2.9m pixels

Layers: 2

Mosaic input source supported

Audio input and output

Low latency

Output synchronization

Connectors

2x HDMI 1.3 + LOOP In

2x DVI (HDMI 1.3) + LOOP In

1x 3G-SDI + LOOP In

4x Gigabit Ethernet outputs

1x 10G OPT port

1x HDMI 1.3 (monitor)

1x RJ45 Ethernet (PC)

1x USB Type A (cascading)

1x USB Type B (PC)

Power

100-240VAC, 50-60 Hz Power consumption: 28W, 1.5A

Warranty

3-year warranty

Dims & Weight

19" L x 13.9" W x 2" H

13.9 lbs
