NovaStar™ VX6S

SKU:

124191

1844.00

  • 3.9 million pixel max loading capacity video output
  • 7 input connectors: 2Ã? 3G-SDI, 2Ã? HDMI1.3, 2Ã? DVI, and 1Ã? USB
  • Supports 3Ã? layers and 1Ã? OSD
  • 3.9 million pixel max loading capacity video output
  • 7 input connectors: 2Ã? 3G-SDI, 2Ã? HDMI1.3, 2Ã? DVI, and 1Ã? USB
  • Supports 3Ã? layers and 1Ã? OSD

No items found.

Options

No items found.

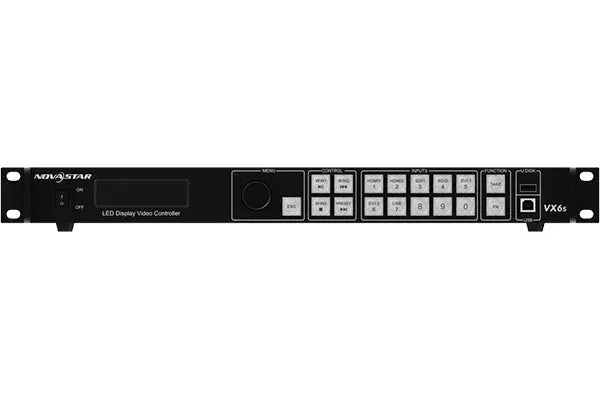

All-In-One Video Controller

The VX6s integrates sending card functions with video processing. Designed with powerful video processing capability, it supports 7 video inputs and 6 Gigabit Ethernet outputs.

Powerful Processing

Based on the powerful FPGA processing platform, the VX6s supports multiple switching effects, such as quick seamless switching and fade, providing flexible screen control experience and outstanding video presentations.

Tech Specs

All-In-One Video Controller

The VX6s integrates sending card functions with video processing. Designed with powerful video processing capability, it supports 7 video inputs and 6 Gigabit Ethernet outputs.

Based on the powerful FPGA processing platform, the VX6s supports multiple switching effects, such as quick seamless switching and fade, providing flexible screen control experience and outstanding video presentations.

Certifications

Optical
Control
Movement
Power & Current
Dimensions

1.8" x 10.8" x 19"

6

lbs

General Specs

Supports quick and advanced screen configurations

Switches the PVW to PGM

Supports PGM preview in the switcher mode

Supports input resolution adjustment and input source backup

Supports screen brightness adjustment

Multiple VX6s units can be cascaded

Automatically scales the image to fit the whole screen

The maximum video output width is 4096 pixels

16 user presets can be created and saved as templates

Intuitive OLED screen and clear button i

Connectors
Hang Time

/10

Density

/10

Rigging & Application
Tech Specs

Inputs: 2 x 3G-SDI, 2 x HDMI1.3, 2 x DVI, 1 x USB

Outputs: Ethernet port x 6

Loading Capacity: 3.9 million pixels, the maximum pixel CLK is 165MHz

Video Loop: DVI LOOP, SDI LOOP

Video Monitor: VGA OUT, DVI OUT

Communication Mode: USB/LAN

Image Mosaic, Crop Settings, PIP

Power: Emerson power supply

Certification: CE, ROHS, FCC, UL, EAC
