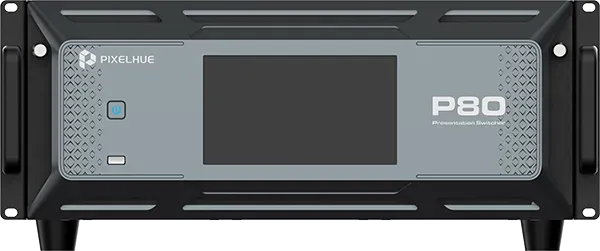

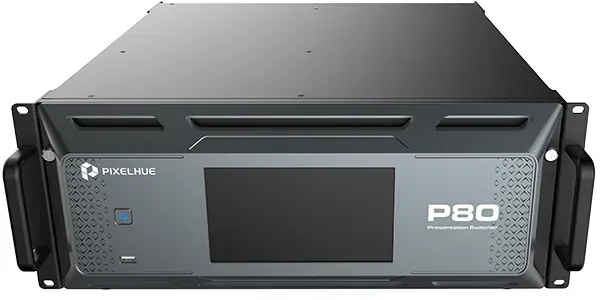

The P80 is a high-performance presentation switcher built to drive up to 20x 4K inputs with precise, real-time control over every screen and layer. It runs real 4K60p 4:4:4 10-bit internal processing on an FPGA-based architecture, with up to 8x 4K mixing main layers, 4x 4K mixing PIP layers, and 256 saveable presets. The unit offers dual independent multiviewer outputs, full-link HDR conversion, flexible HDMI 2.0/DP 1.2/12G-SDI connectivity, an SDI matrix, and Dante audio networking. Control is available via the onboard 7-inch touchscreen, the U5/U5 Pro event controllers, PixelFlow software, or Stream Deck integration. It's designed for mission-critical live events, broadcasts, and permanent video wall installations that demand reliability and image quality.

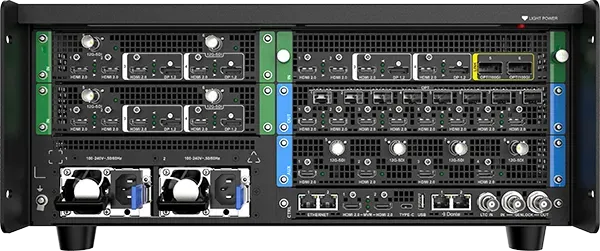

Inputs — 12x fixed 4K concurrent inputs (4x HDMI 2.0, 4x HDMI 2.0/DP 1.2, 4x 12G-SDI); HDMI 2.0 up to 4096×2160@60Hz 8-bit 4:4:4 with HDR10/HLG/SDR, HDCP 2.2/1.4, 8-channel embedded audio; DP 1.2 up to 4096×2160@60Hz 10-bit 4:4:4, HDCP 2.2/1.3; 12G-SDI supports ST-2082/2081/424/292/259, up to 4096×2160@60Hz 10-bit 4:2:2, interlaced supported.
Main Outputs — 8x HDMI 2.0 (up to 4x 4K copy mode or 8x DL split mode), 8x 10G SFP optical copy ports; HDMI 2.0 up to 4096×2160@60Hz, 8/10/12-bit, YCbCr/RGB, HDR10/HLG/SDR, HDCP 2.2/1.4.
Flex Outputs — 4x HDMI 2.0, configurable as independent or edge-blended screens with multiviewer, transitions, AOI, virtual pixels; up to 4x 4K mixing PIP layers and 4x still BKG; same HDMI 2.0 specs as main outputs.
SDI Matrix — 4x 12G-SDI matrix outputs mapping any input/MVR/PGM/flex source; compatible with HD/3G/6G-SDI, 8-channel embedded audio, no bit depth/color space settings.
Dante Audio Networking — Dual redundant Gigabit Ethernet (AES67), audio de-embed/embed on every I/O, 64x64 Dante channels @48kHz.
Multiviewer — 2x HDMI 2.0 for monitoring all sources/PVW/PGM; independent (2x DL) or copy mode (1x 4K + 1x copy); customizable layout templates and window styling.
Ethernet — 2x Gigabit Ethernet ports (primary/backup, shared IP) for control and input view.
Genlock — Sync signal input and output (with loop-through).
Screens — Independent or edge-blended widescreens; up to 4x 4K main screens and 4x flex screens; multi-screen mosaic, edge blending, bezel compensation, virtual pixel config, AOI, custom test patterns.
Layers — Up to 8x 4K mixing main layers; sources from inputs, MVR, PGM, or local images; repositioning, Z-order, naming, real-time resource display; effects include DSK, mask, crop, flip, cut & fill, border, shadow; up to 256 layer presets.
Presets — Up to 256 presets; relative and complete preset types; configurable transition duration and source; loadable to PVW or PGM.
BKG — Stills imported or captured from inputs/PGM; one dedicated BKG per PGM output (up to 4); up to 1GB storage; PNG/BMP/JPG/JPEG supported; auto-scales maintaining aspect ratio.
Transition & Effects — Take/Cut/T-bar transitions; Copy/Swap modes; 0.1–10s customizable duration; fade in/out; screen freeze and FTB.
PixelFlow Software — Long-term stable operation; visualized UI adaptive to U5/U5 Pro/PC; one-click button skin changes; encoder/fader control; offline simulator.
Processing Capability — FPGA-based architecture; as low as 1-frame latency; BT.601/709/2020/DCI-P3 color space support; free SDR/HDR10/HLG conversion; smart/chroma/luma key DSK; HDCP 1.3/1.4/2.2 compatible.
