SKU:
124709
7400.00
Options
The S16 supports 4K input and output, so cameras and displays run at full resolution without conversion. Adaptive inputs accept 4K and lower-resolution sources, and output scaling covers UHD and HD with custom resolution options.
The S16 connects directly to major streaming platforms with up to four simultaneous RTMP streams. A 1080p60 USB output covers live streaming and online editing without extra hardware.
The S16 supports 4K input and output, so cameras and displays run at full resolution without conversion. Adaptive inputs accept 4K and lower-resolution sources, and output scaling covers UHD and HD with custom resolution options.
The S16 connects directly to major streaming platforms with up to four simultaneous RTMP streams. A 1080p60 USB output covers live streaming and online editing without extra hardware.

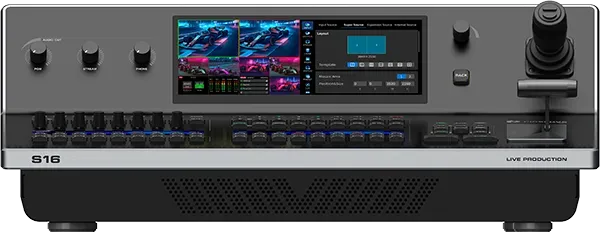

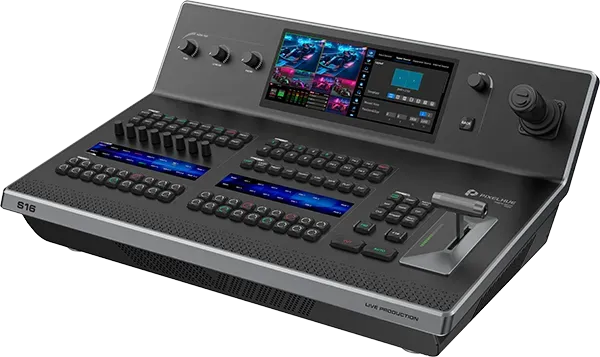

The S16 is a portable live production switcher built into a single control panel, supporting up to 16 SDI and 4 HDMI inputs along with UVC/RTMP output, AUX outputs, and a full layer toolkit of 4 upstream keyers, 2 downstream keyers, SuperSource, and BKGD. It handles a complete 4K workflow with adaptive inputs and scalable UHD/HD outputs, and includes built-in streaming (up to 4 simultaneous RTMP feeds), recording, an audio mixer, and a multiviewer. A 10.25-inch LCD provides on-board monitoring and menu-driven control, paired with a tactile control surface featuring knobs, faders, a T-bar, and a joystick. It's designed for small venues, corporate events, houses of worship, education, esports, freelancers, and broadcast vans.

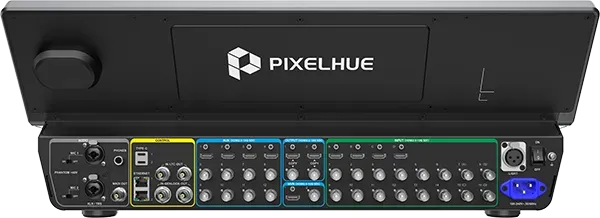

Connectivity and Performance
Input: 16x 12G-SDI + 4x HDMI 2.0 (choose 16 from 20)
Output: 2x HDMI 2.0/12G-SDI (copy)
Multiviewer: 1x HDMI 2.0, 1x 12G-SDI
AUX: 8x 12G-SDI + 4x HDMI 2.0
Streaming: 1x USB 3.0 (Type-C) up to 1080p@60Hz, 4x RTMP streaming
Audio: Input 2x XLR/TRS (6.35mm); Output 2x XLR + 1x 6.35mm TRS analog monitoring + 2x Dante digital audio (optional)
Layer: 1x BKGD, 4x upstream keyers, 2x downstream keyers, 1x SuperSource
Transition: MIX, DIP, WIPE
Power Connector: 100–240V~, 10A, 50/60Hz
Max Consumption: 175 W
13kg
lbs
/10
/10
1x Power cable
1x HDMI cable
1x Cat5e cable
1x Gooseneck light
1x Quick Start Guide
1x Safety Manual
1x Certificate of Approval
1x Customer Letter
