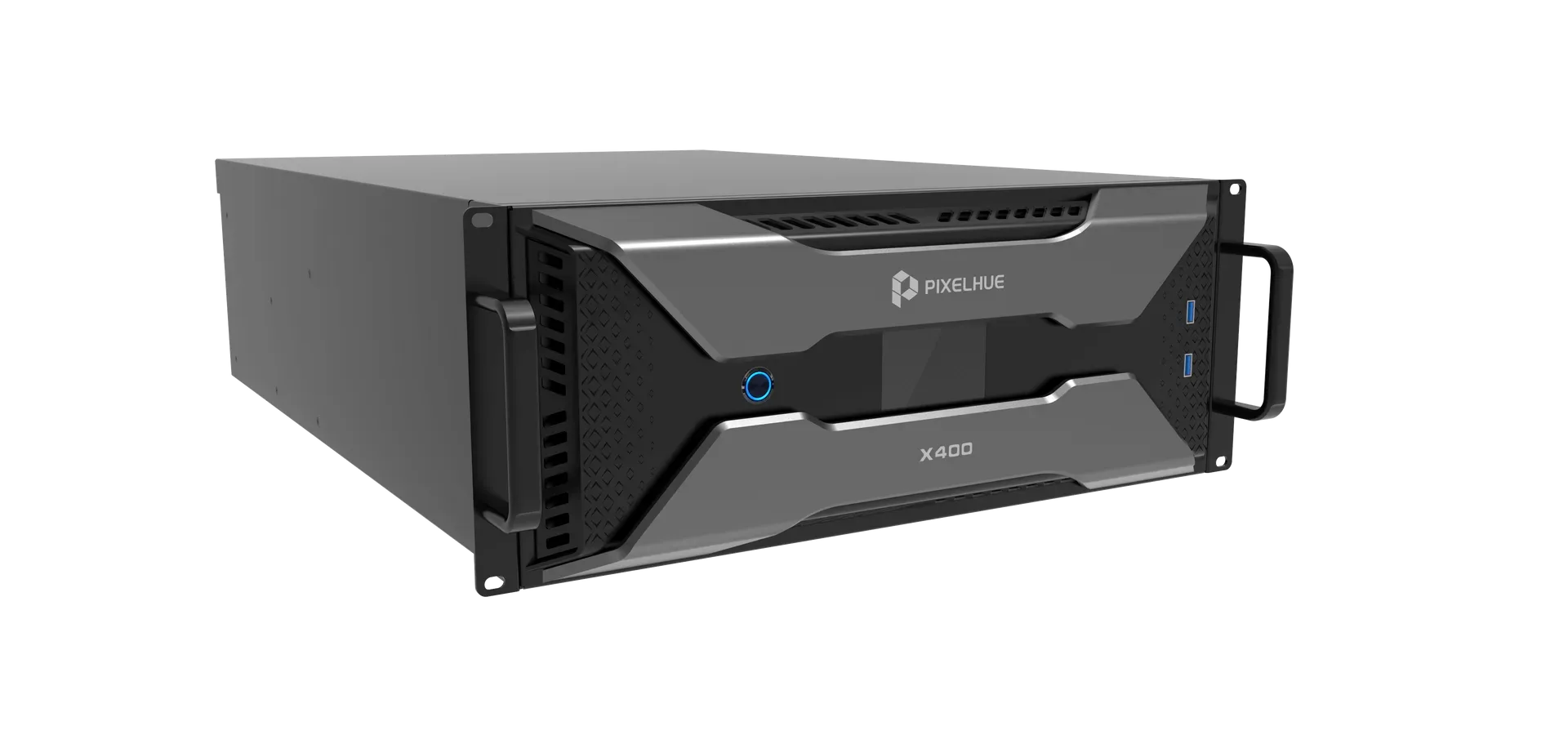

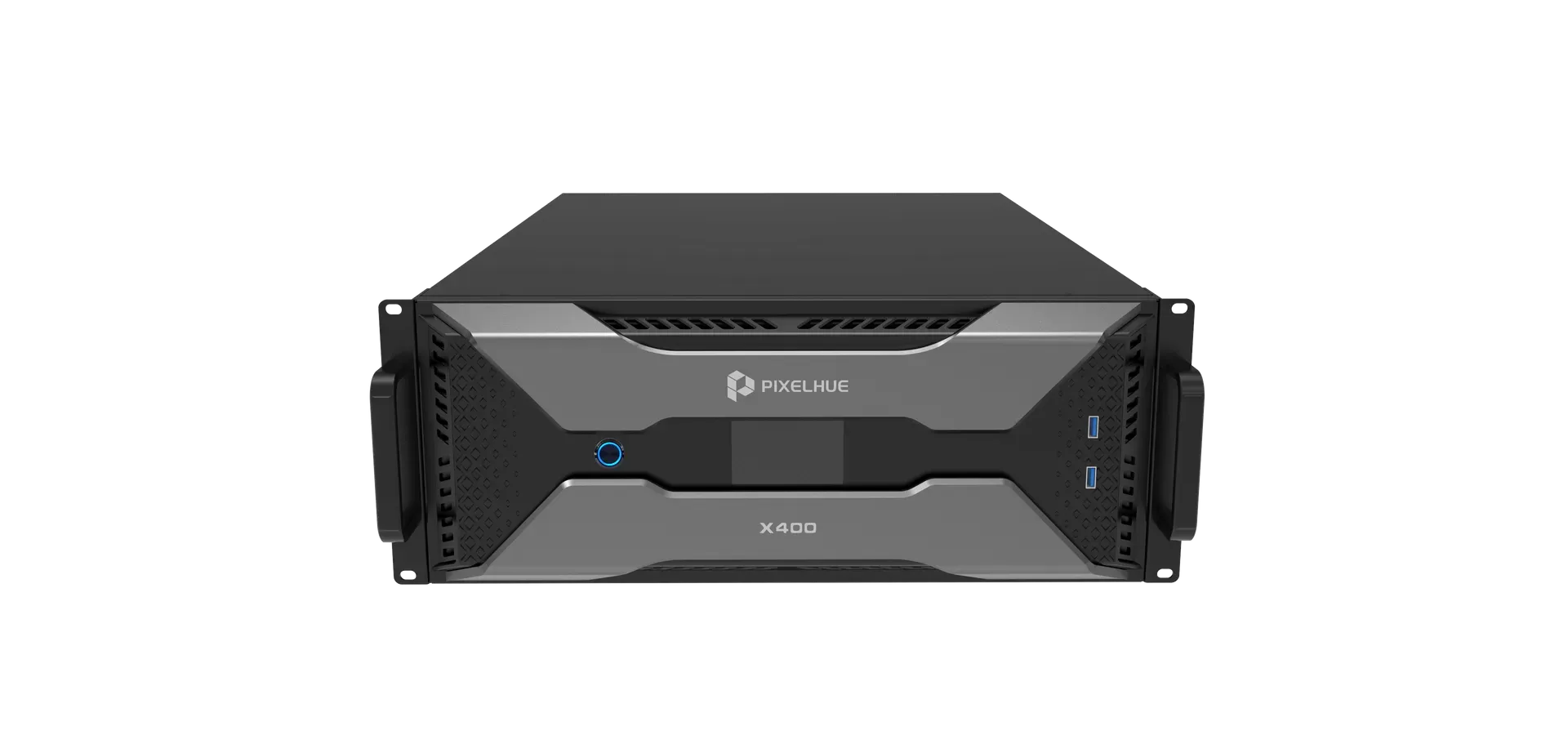

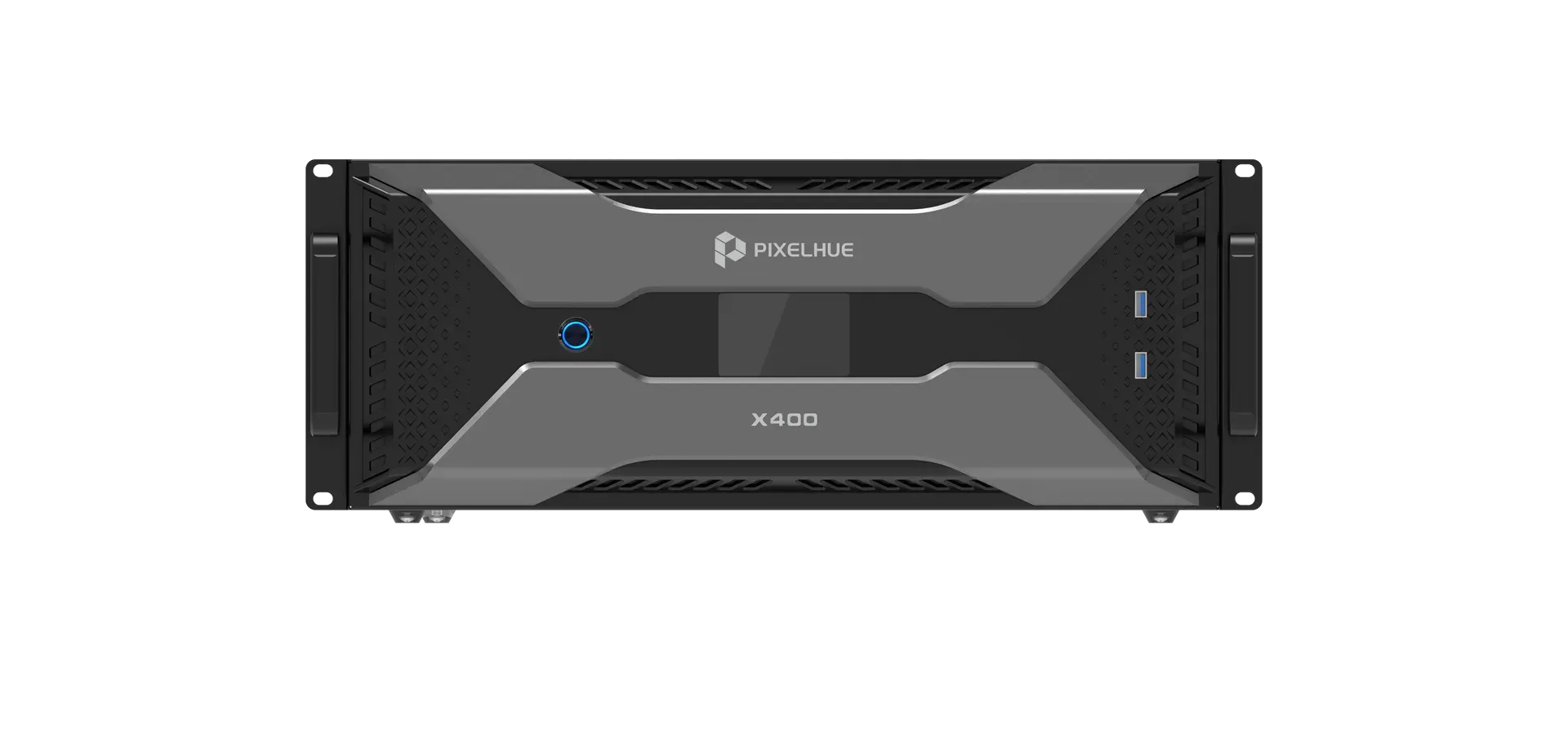

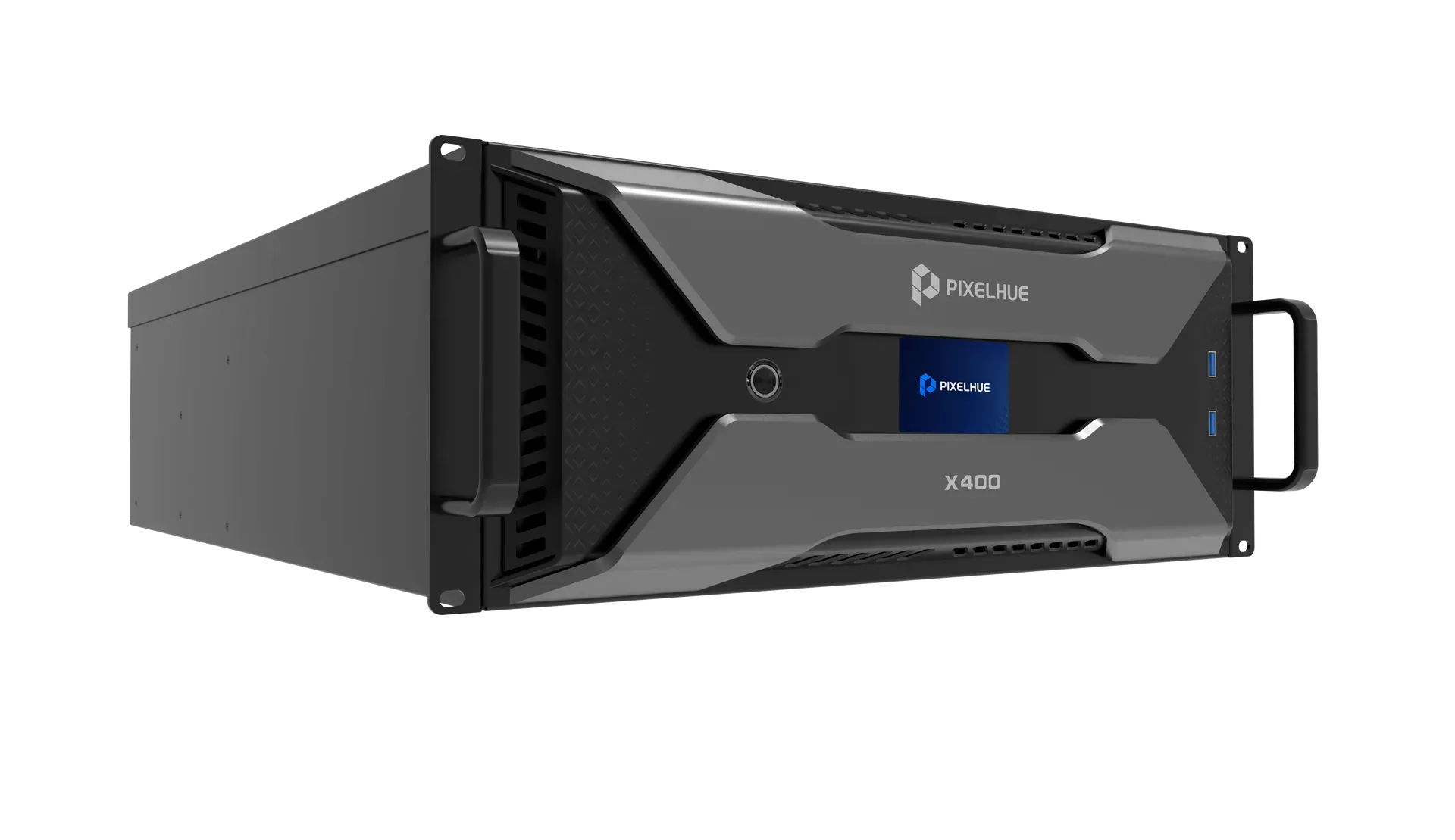

The X400 is a modular media server built on a server-class motherboard with a high-performance graphics card, supporting up to 2 input cards and 4 output cards for up to 6x 4K or 24x 2K mosaic outputs from one unit. It decodes 8K@60fps UHD video and plays multiple 4K@60fps streams smoothly across a wide range of codecs and formats. Dual SSDs, dual OS, dual authorization, and frame-sync technology with seamless primary/backup switching keep mission-critical shows running reliably. The built-in Pilot MS3 software handles playback and real-time editing with unlimited layers and programs, irregular-shaped slices, and a fully customizable, visual UI.
Software (Pilot MS3)
Playback and real-time editing of video, pictures, audio, web pages, capture devices, and NDI inputs; multiple playback modes (single program, single media, media collection, cross-program, jump playback); unlimited layers and programs; irregular-shaped slices; visualized management of slices/programs/playback/inputs; flexible mosaic; auto preview and preview editing; media optimization and image quality adjustment; mirroring, stretching, cropping; crossfade and cut transitions; decoding of mainstream video formats; output mapping/markings; automatic startup and playback; project file management and packaging.
Hardware
8K or multi-4K hardware decoding/rendering; plug-in modular design; frame sync technology; seamless primary/backup switching; infinite device cascading via Genlock; EDID lock; intelligent thermal management; status/fault indication on front panel; XLR audio I/O; TCP/UDP central control; 4U rack-mountable; industrial ruggedized design.
Configuration
1x HDMI 1.4 monitoring connector for software UI; dual SSD with dual OS; dual authorization (dongle + license).
Interactive UI
Fully visualized, customizable graphical UI; UI lock for unattended operation.
Performance
Capability: 1x 8K@60fps, 4x 4K@60fps / 6x 4K@30fps, or 15x 2K@30fps simultaneous playback; unlimited layers.
Outputs: 8192×1080@60Hz / 4096×2160@60Hz or 2048×1152@60Hz output cards; 6x 4K or 24x 2K mosaic; 4:4:4 10-bit color; Genlock and frame sync card.
Inputs: 1920×1200@60Hz or 4096×2160@30Hz input cards; 4x 2K or 4x 4K inputs; NDI, streaming, and web page inputs.
Audio: XLR (1x in, 2x out L/R); 1x 3.5mm in, 1x 3.5mm out; formats mp3, aac, flac, amr, ape, wav, wma, ogg.
Control: Built-in Pilot MS3; TCP/UDP central control; 1x HDMI 1.3 UI connector; 2x USB front, 4x USB rear.

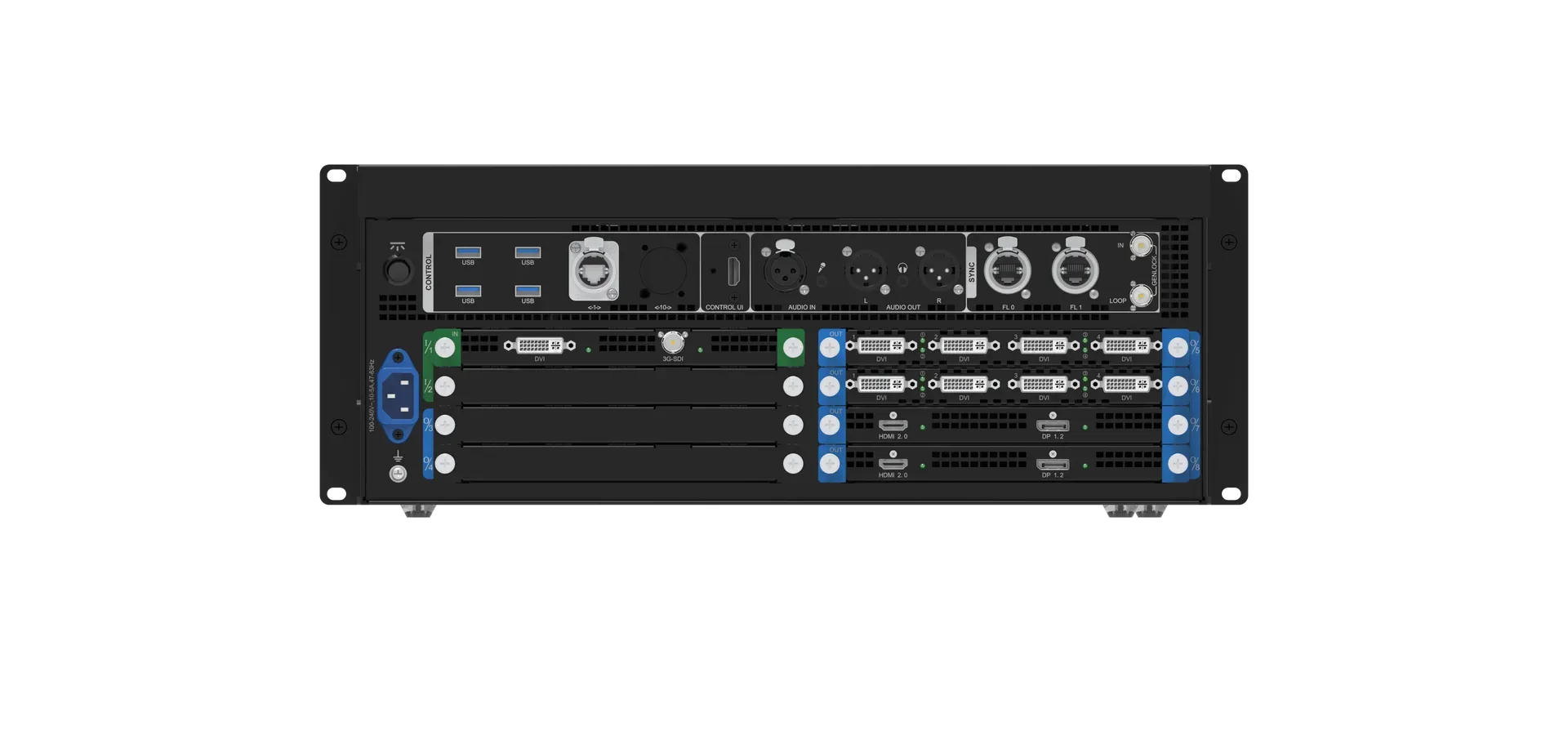

Modular Input Cards
4K Input Card: 2x HDMI 1.4 (backward compatible with 1.3), max 4096×2160@30Hz per connector, 2x simultaneous 4K30 inputs, HDCP 2.2.
2K Input Card: 1x DVI (max 1920×1200@60Hz, min 800×600@60Hz, interlaced supported); 1x 3G-SDI (backward compatible HD/SD-SDI, ST-424/292/259, max 1920×1080@60Hz, interlaced supported).
Modular Output Cards
4K Output Card: 1x HDMI 2.0 + 1x DP 1.2 (same content), max 8192×1080@60Hz / 4096×2160@60Hz, HDCP 2.2, mosaic of same-type connectors.
SL-DVI Quad Output Card: 4x DVI, max 2048×1152@60Hz per connector, max width 2560px, max height 2560px, 2x2 mosaic default.
2K Output Card: 4x HDMI 1.3, max 2048×1152@60Hz per connector, max width 2560px, max height 2560px, 2x2 mosaic default.
