Raven™

SKU:

124676

300.00

  • Art-Net and sACN DMX over ethernet.
  • Up to two universes of DMX/RDM output with extender.
  • Configuration and DMX control via Bluetooth.
  • Power via USB-C or PoE.
  • DHCP or static IPv4 network configuration.
  • Data failsafe mode including scene recording.
  • HTP or LTP merging of two network sources.
  • Supports unicast or multicast E1.31 packets.

  • Art-Net and sACN DMX over ethernet.
  • Up to two universes of DMX/RDM output with extender.
  • Configuration and DMX control via Bluetooth.
  • Power via USB-C or PoE.
  • DHCP or static IPv4 network configuration.
  • Data failsafe mode including scene recording.
  • HTP or LTP merging of two network sources.
  • Supports unicast or multicast E1.31 packets.

Options

No items found.
Add to Cart
›
Find a Reseller ›

Backed by our 2-year extendable warranty

Backed by our 3-year extendable warranty

Backed by our 7-year warranty

Backed by our 2-year warranty

Backed by our 6 month warranty

Backed by our 90 day warranty

Backed by our 1-year warranty

Backed by our limited lifetime warranty

At Full

Create + Control + Test
all with your mobile device.

Prepare to Soar

Configure, test, and control in wireless or wired mode with Bluetooth or RJ45 ethernet all powered via PoE (power over ethernet).

Extended Wingspan

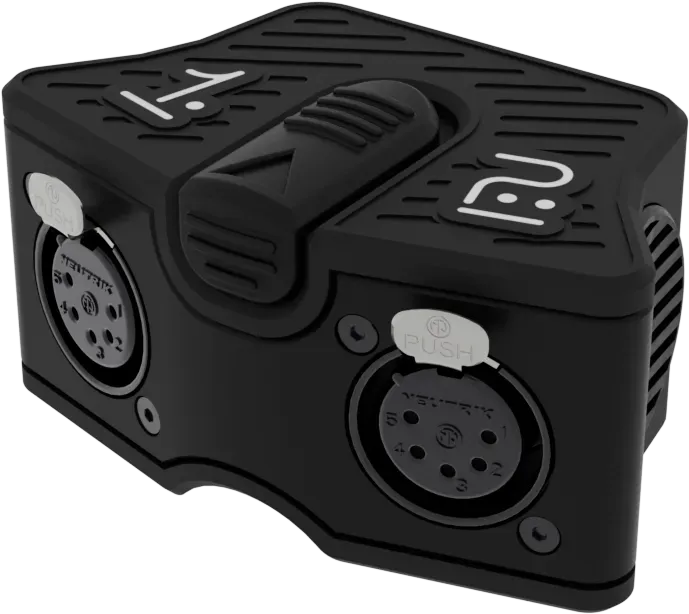

Up to two universes of control (1,024 channels) with included Universe Extender.

Natively Grown

Designed, developed and assembled at our HQ in Wisconsin by actual human beings.

Prepare to Soar

Configure, test, and control in wireless or wired mode with Bluetooth or RJ45 ethernet all powered via PoE (power over ethernet).

Extended Wingspan

Up to two universes of control (1,024 channels) with included Universe Extender.

This product is backed by our

2 Year - Extendable

warranty.

Learn more here.

FAQs

What does the Raven do?
Control and configure your lights over Art-Net/sACN with Bluetooth or PoE network connection.
What's PoE?
Power over ethernet. Without a PoE compatible router or injector the Raven is powered via a USB-C cable. With PoE, both data and power are delivered via a typical ethernet cable.
What's Art-Net?
Art-Net is a communication protocol used to send DMX512 lighting control data over a standard Ethernet (CAT5/CAT6) network.
What are some use cases for the Raven?
Permanent install setups really benefit from the Raven's features. It provides the stability of a hardwired Ethernet setup with the flexibility and convenience of Bluetooth control. The Raven is perfect for configuring and testing a new rig. Assign addresses, set channel modes, and test fixture via RDM + Raven.
How does At Full work with the Raven?
Although many setups already have a dedicated console or control system already, At Full with Raven works just like a stingray. You just pair the Raven via At Full's Configure page and you're ready to go.
What does 'Made in Wisconsin' mean for the Raven?
We've significantly improved our manufacturing processes, and the Raven is the natural progression of that work. The housing, software, and hardware were all designed and assembled at our Wisconsin HQ.

Tech Specs

The Rundown

  • Art-Net and sACN DMX over ethernet.
  • Up to two universes of DMX/RDM output with extender.
  • Configuration and DMX control via Bluetooth.
  • Power via USB-C or PoE.
  • DHCP or static IPv4 network configuration.
  • Data failsafe mode including scene recording.
  • HTP or LTP merging of two network sources.
  • Supports unicast or multicast E1.31 packets.

Summary

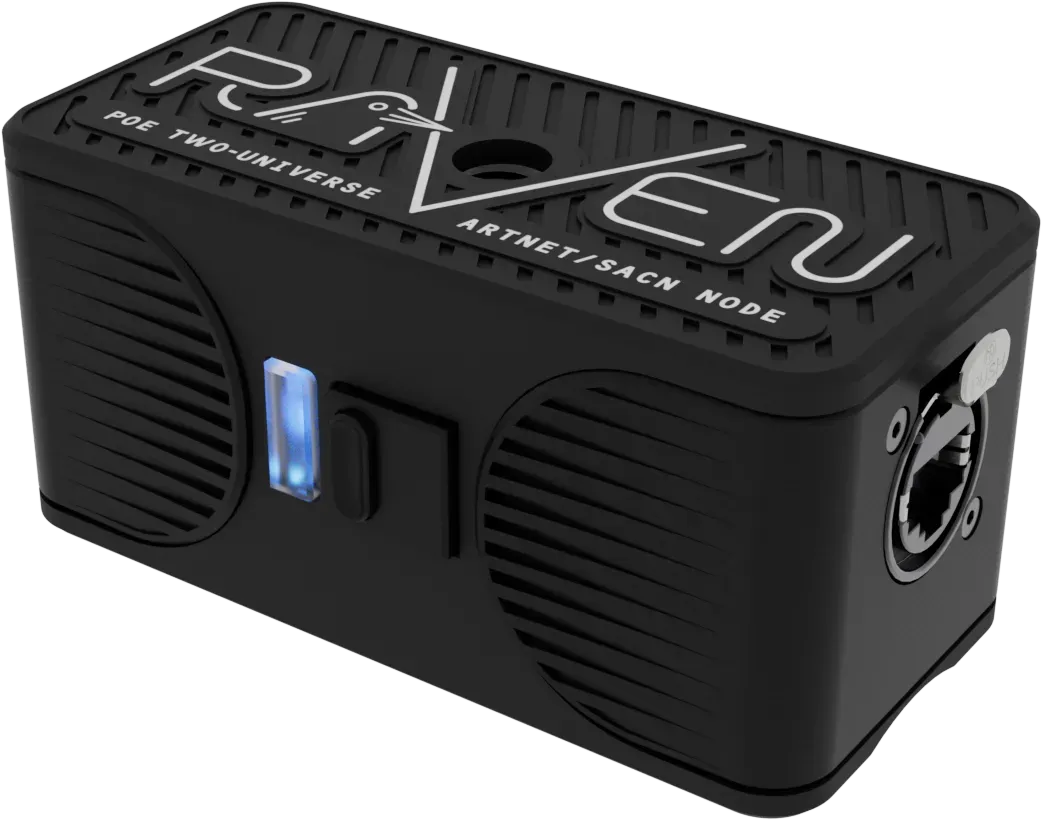

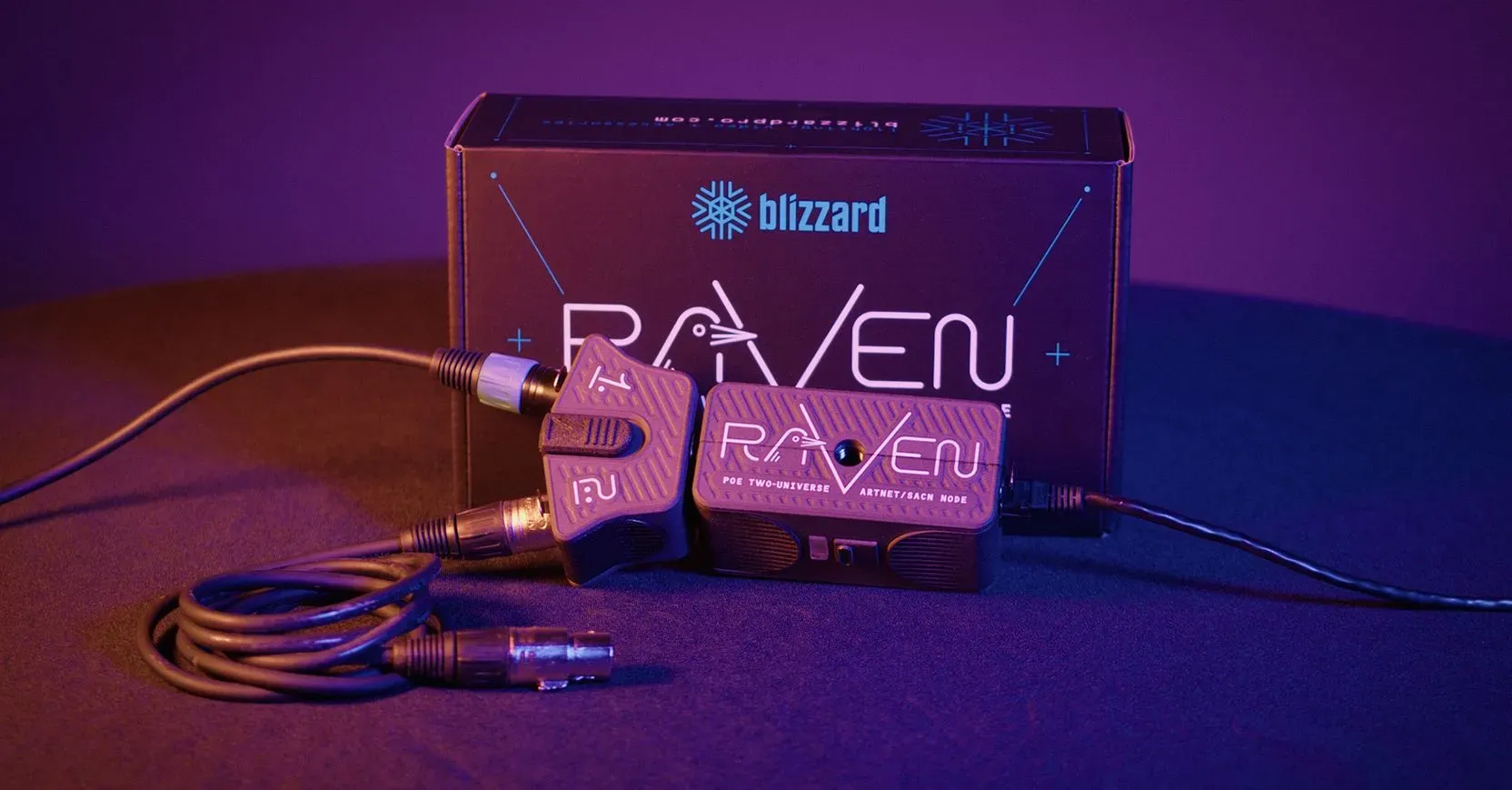

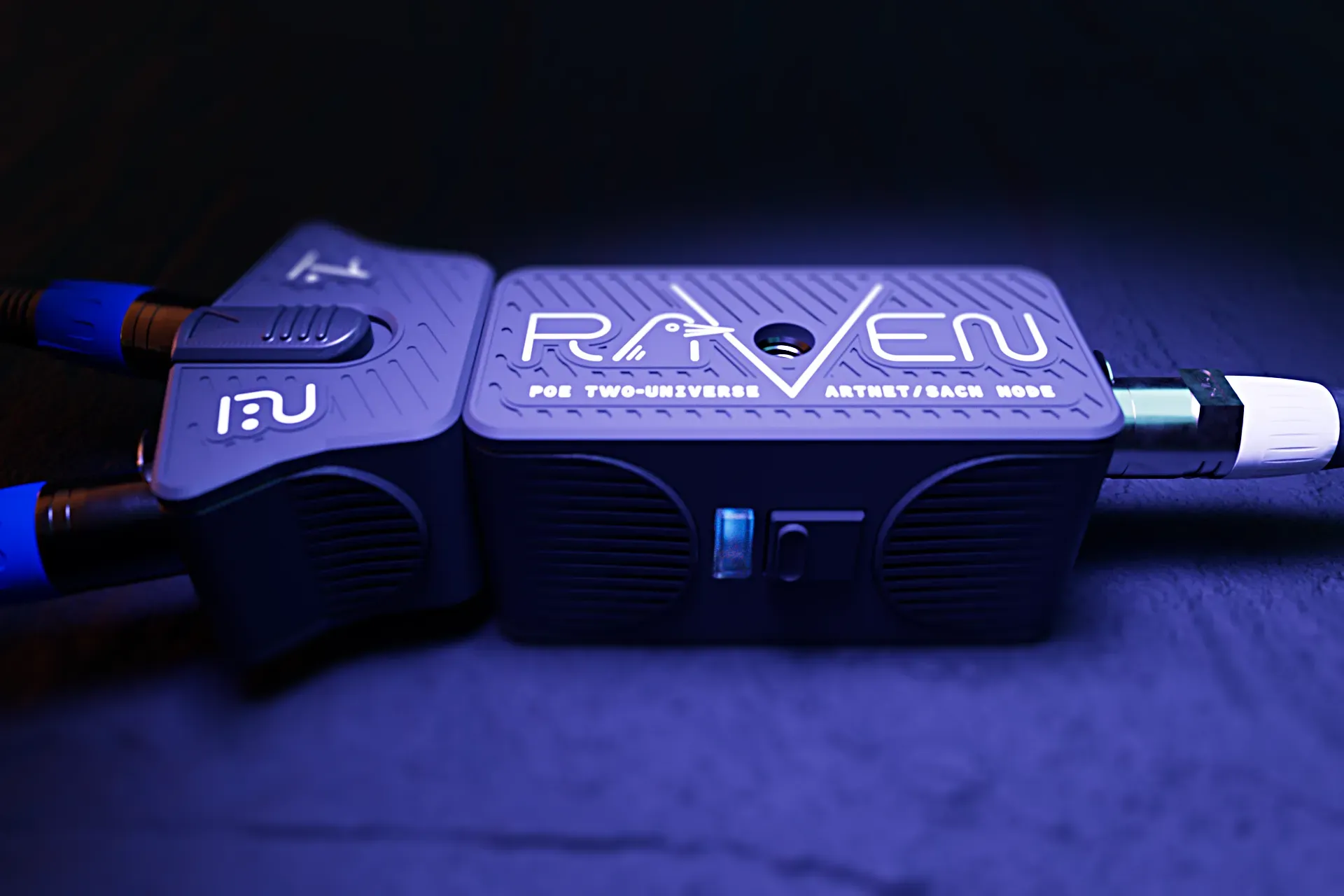

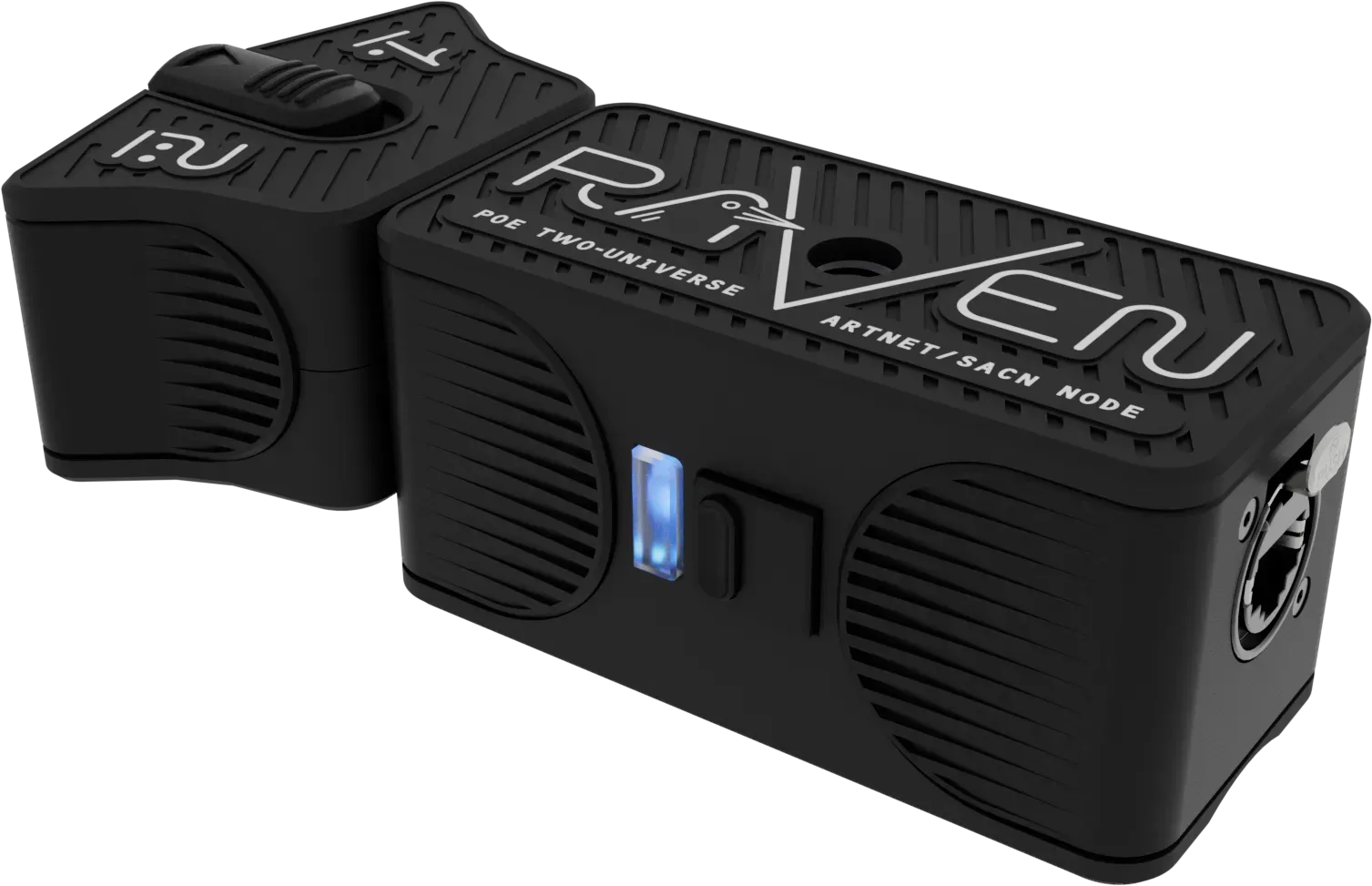

The Raven is a two-universe Art-Net/sACN node with wired, PoE-compatible network connection or Bluetooth wireless operation. Power it via the included USB-C cable or through PoE. Connect a 5-pin XLR cable for single universe operation, or use the included Universe Extender to control two universes at once.

Certifications

Optical
Control
Movement
Power & Current
Dimensions

2" x 3.25" x 6"

lbs

General Specs
Connectors
Hang Time

/10

Density

/10

Rigging & Application
Tech Specs
Wireless Info
In the Box

Downloads & Manuals

Connect with
an expert

Ready to set the stage with unforgettable lighting? Get in touch to explore our LED lighting solutions.
