Stiletto™ Z6
Ultra-Sharp 6* 4-In-1 RGBW 15W LEDs + Zoom
Stiletto™ Z6
Ultra-Sharp 6* 4-In-1 RGBW 15W LEDs + Zoom
$629.99
• 6x multi-chip 4-in-1 RGBW 15W LEDs
• 6.5°-60° degree zoomable beam angle
• 360°/540° pan, 270° tilt (8/16-bit)
• Four user selectable dimming curve modes via DMX
• Smooth 0-100% dimming, flicker free
• Built-in automated programs via master/slave
• Built-in sound activated programs
• USITT DMX-512 (15-channels)
• 3-pin DMX In/Out
• 4-button menu with LCD display
• powerCON® compatible AC power In/Out connectors
Fast, Free Shipping on Orders $99+
Discontinued
Where Else to Buy
Tested for Quality
Overview
Specs
Downloads
Photometric
Color Mixing Magic

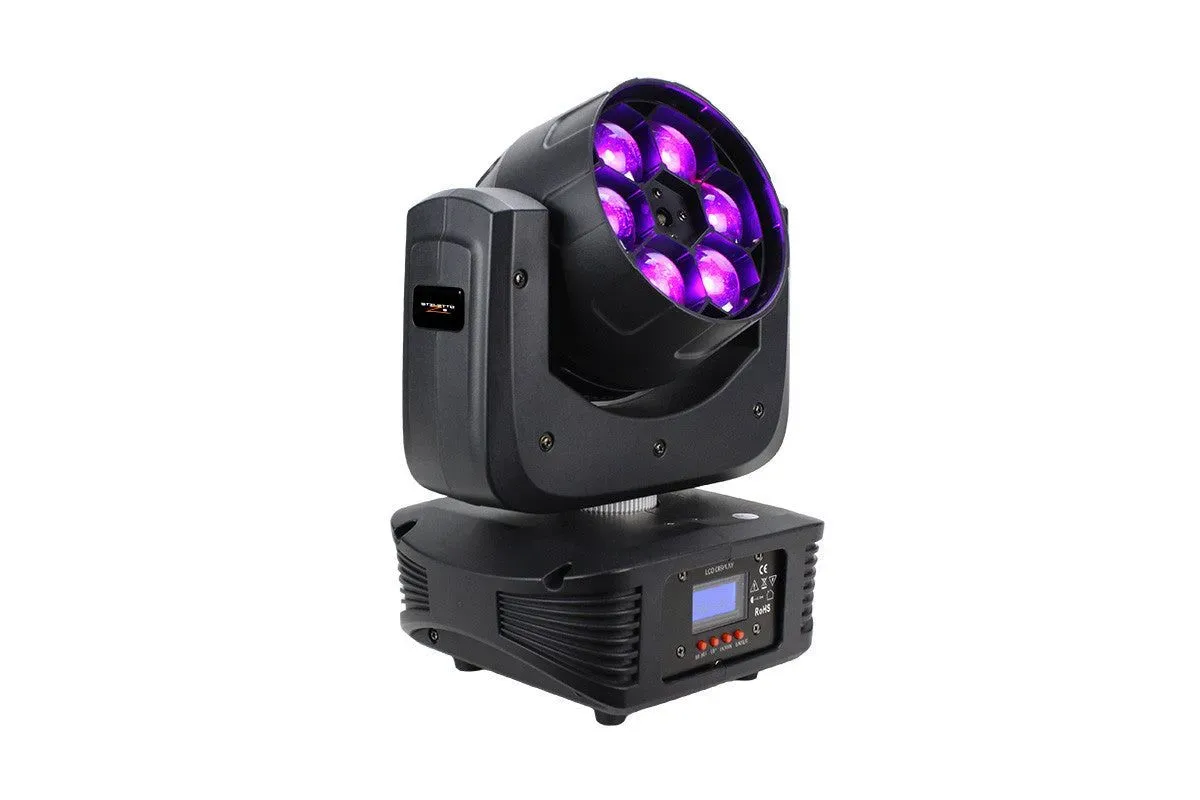

Meet Stiletto™ Z6, our super bright moving head capable of mixing RGBW colors beautifully from a wide 60° throw to a tight 6.5° beam and everything in between. Its 6x multi-chip 4-in-1 RGBW 15W LEDs and fast, precise user selectable 360°/540° pan and 270° tilt make Stiletto™ Z6 a super aerial performer in a tiny, lightweight package. In short, this is your classic overachiever.
Packed With Goodies
The Stiletto™ Z6 has 4 flicker-free, user-selectable 32-bit dimming curve modes at your disposable directly from the control panel or via DMX for smoother (and slower) dimming capabilities. This fixture also comes equipped with an easy-to-use 4-button LCD control panel, attractive housing (it's got all the right curves), industry standard powerCON® compatible power In/Out connections, 3-pin DMX In/Out jacks, and a single secure quarter-turn “Omega” quick connect type clamp bracket.
Main Features
• 6x multi-chip 4-in-1 RGBW 15W LEDs
• 6.5°-60° degree zoomable beam angle
• 360°/540° pan, 270° tilt (8/16-bit)
• Four user selectable dimming curve modes via DMX
• Smooth 0-100% dimming, flicker free
• Built-in automated programs via master/slave
• Built-in sound activated programs
• USITT DMX-512 (15-channels)
• 3-pin DMX In/Out
• 4-button menu with LCD display
• powerCON® compatible AC power In/Out connectors
Product Specifications
![]()
Optical
Light source: 6x multi-chip 4-in-1 RGBW 15W LEDs
6.5°-60° degree zoomable beam angle
Luminous Intensity: 14,404 Lux @ 2m (narrow), 2,410 Lux @ 5m (narrow), 588 Lux @ 2m (wide)
![]()
Movement
360°/540° pan (8/16-bit)
270° tilt (8/16-bit)
![]()
Weight & Dims
Width: 9.5 inches (24.1 cm)
Depth: 7 inches (17.8 cm)
Height: 12 inches (30.5 cm)
Weight: 9.9 lbs (4.5 kg)
![]()
Control
USITT DMX-512
DMX channels: 15 channels
Input: 3-pin XLR Male
Output: 3-pin XLR Female
Operating Modes: DMX512, Master/Slave, Auto, Sound Active, Standalone
![]()
Power & Current
AC 100-240VAC, 50-60 Hertz
Power Consumption: 81W, 1.13A, PF: .61
![]()
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs
