This product has been discontinued.

SwitchBlade™ Flip

SKU:

124661

999.99

  • Dual-face hybrid beam / wash / pixel moving head
  • 4x 60 W RGBW 4-in-1 LEDs (2.5° to 28° motorized zoom)

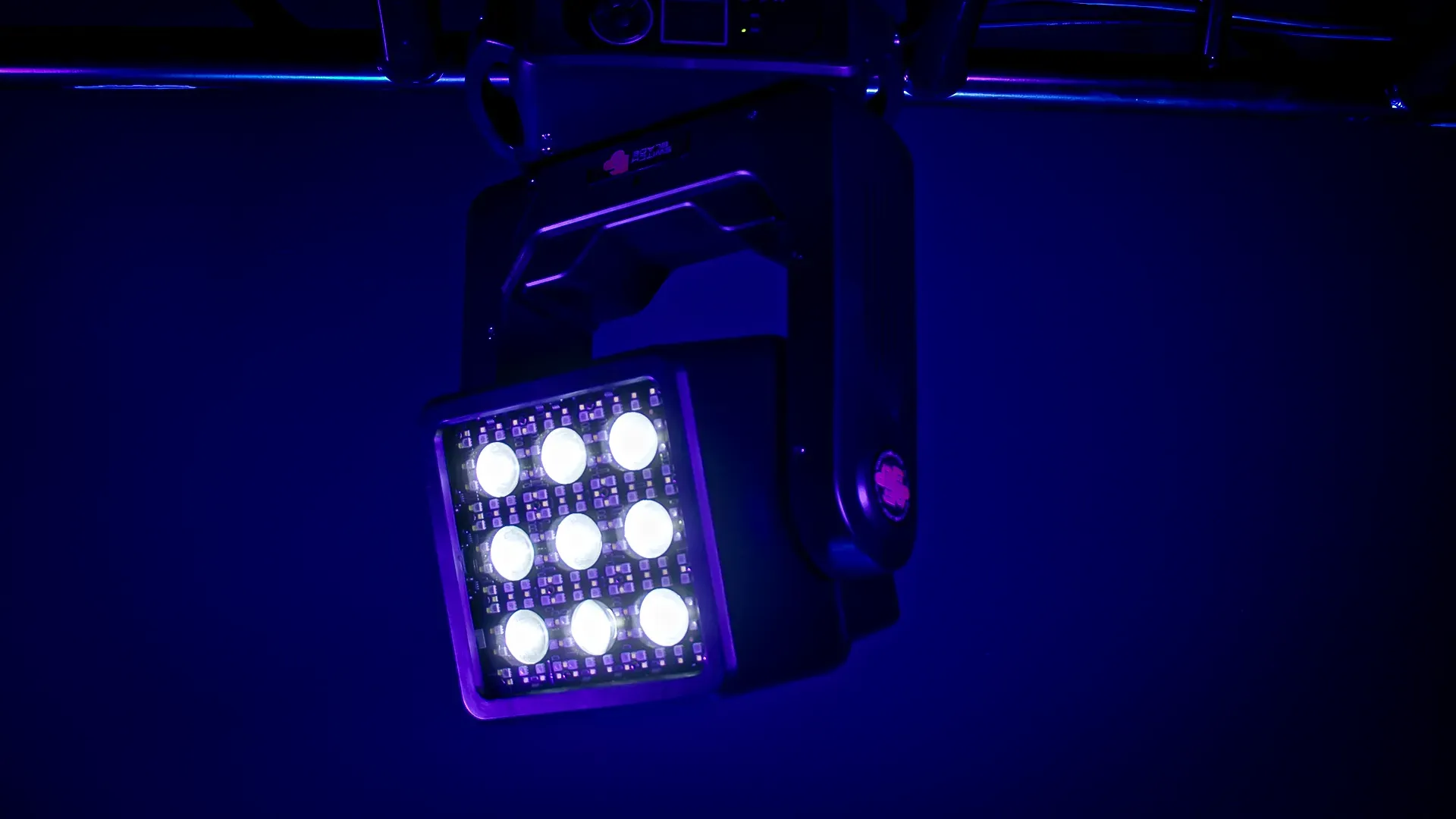

  • 9x 10 W Cool White LEDs (3.5° beam, 10,000 K CCT)

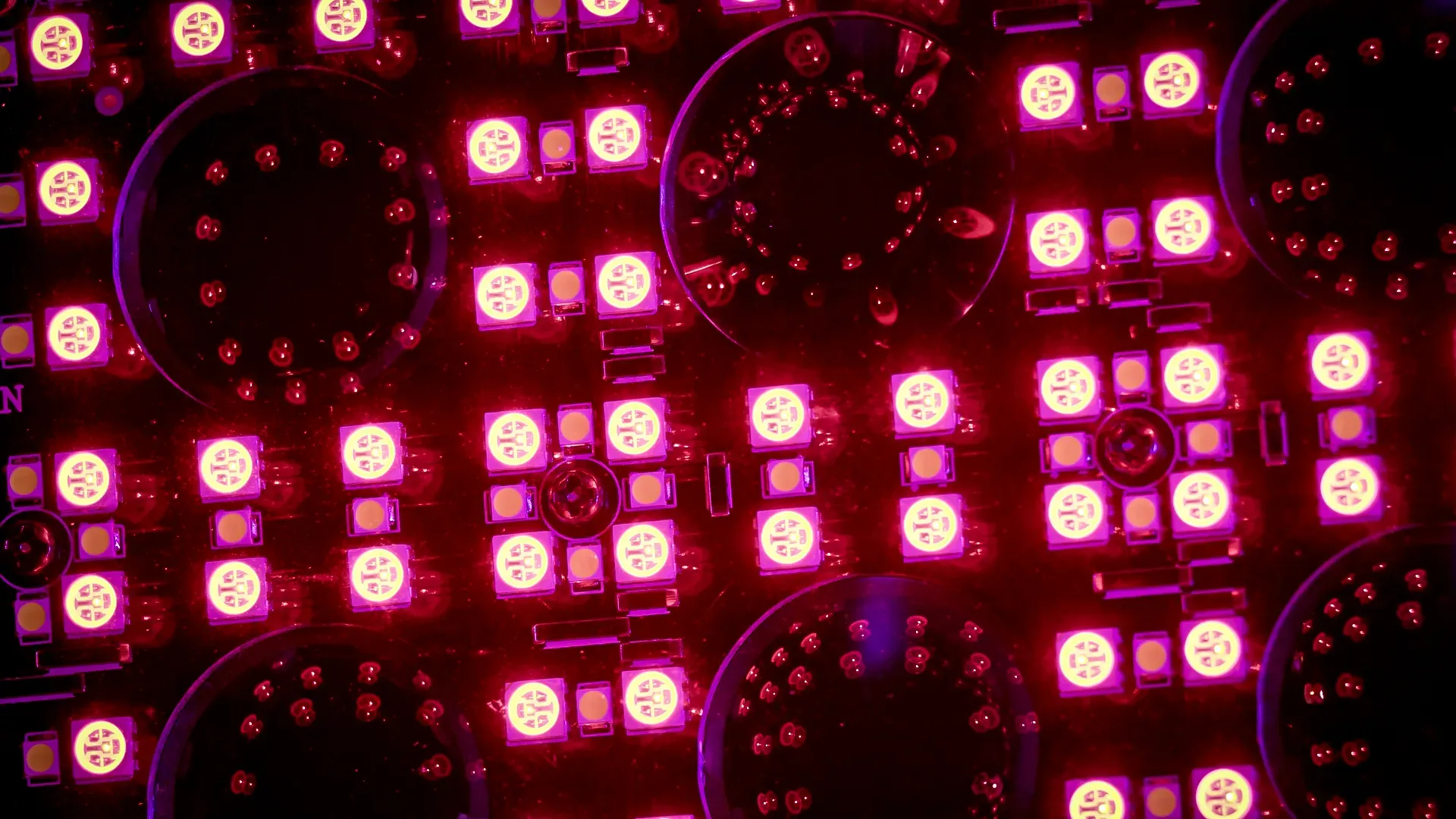

  • 108x 0.5 W RGB 5050 SMD LEDs
  • 96x 3 W Cool White SMD LEDs (10,000 K CCT)
  • Infinite pan (540°) and tilt (270°) with 8–16 bit resolution
  • Pixel-mappable front and rear LED zones
  • 0–30 Hz strobe effects with speed and background control
  • DMX channel modes: 20 / 34 / 93
  • DMX512, Master / Slave, Auto, and Sound Active modes
  • PowerCON© TRUE1 power input
  • 5-pin DMX in / out connectors
  • 5-button LCD menu with intuitive navigation
  • 2-year limited warranty
  • Dual-face hybrid beam / wash / pixel moving head
  • 4x 60 W RGBW 4-in-1 LEDs (2.5° to 28° motorized zoom)
  • 9x 10 W Cool White LEDs (3.5° beam, 10,000 K CCT)
  • 108x 0.5 W RGB 5050 SMD LEDs
  • 96x 3 W Cool White SMD LEDs (10,000 K CCT)
  • Infinite pan (540°) and tilt (270°) with 8–16 bit resolution
  • Pixel-mappable front and rear LED zones
  • 0–30 Hz strobe effects with speed and background control
  • DMX channel modes: 20 / 34 / 93
  • DMX512, Master / Slave, Auto, and Sound Active modes
  • PowerCON© TRUE1 power input
  • 5-pin DMX in / out connectors
  • 5-button LCD menu with intuitive navigation
  • 2-year limited warranty

Options

No items found.
Add to Cart
›
Find a Reseller ›

Backed by our 2-year extendable warranty

Backed by our 3-year extendable warranty

Backed by our 7-year warranty

Backed by our 2-year warranty

Backed by our 6 month warranty

Backed by our 90 day warranty

Backed by our 1-year warranty

Backed by our limited lifetime warranty

Flip the Script

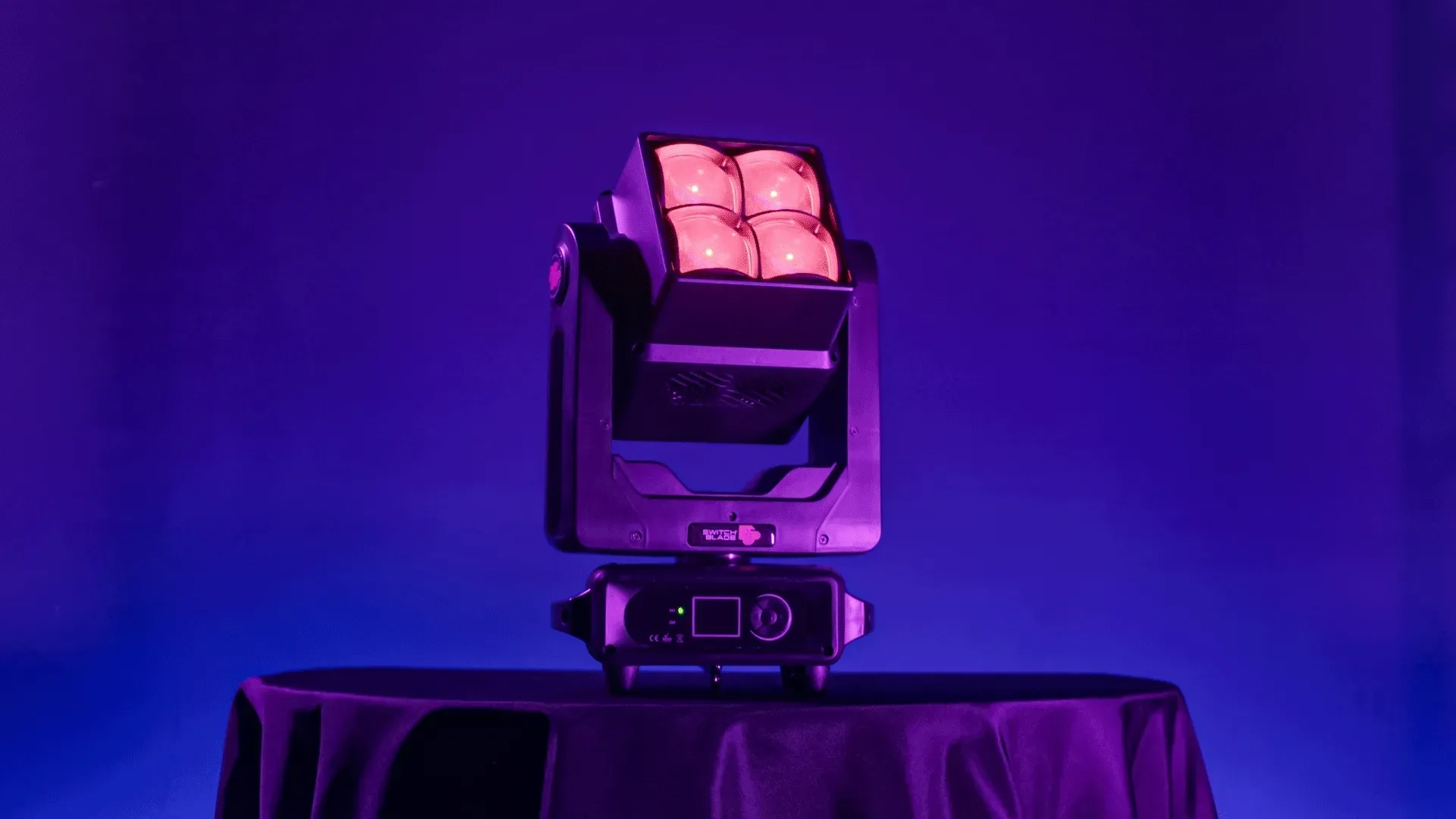

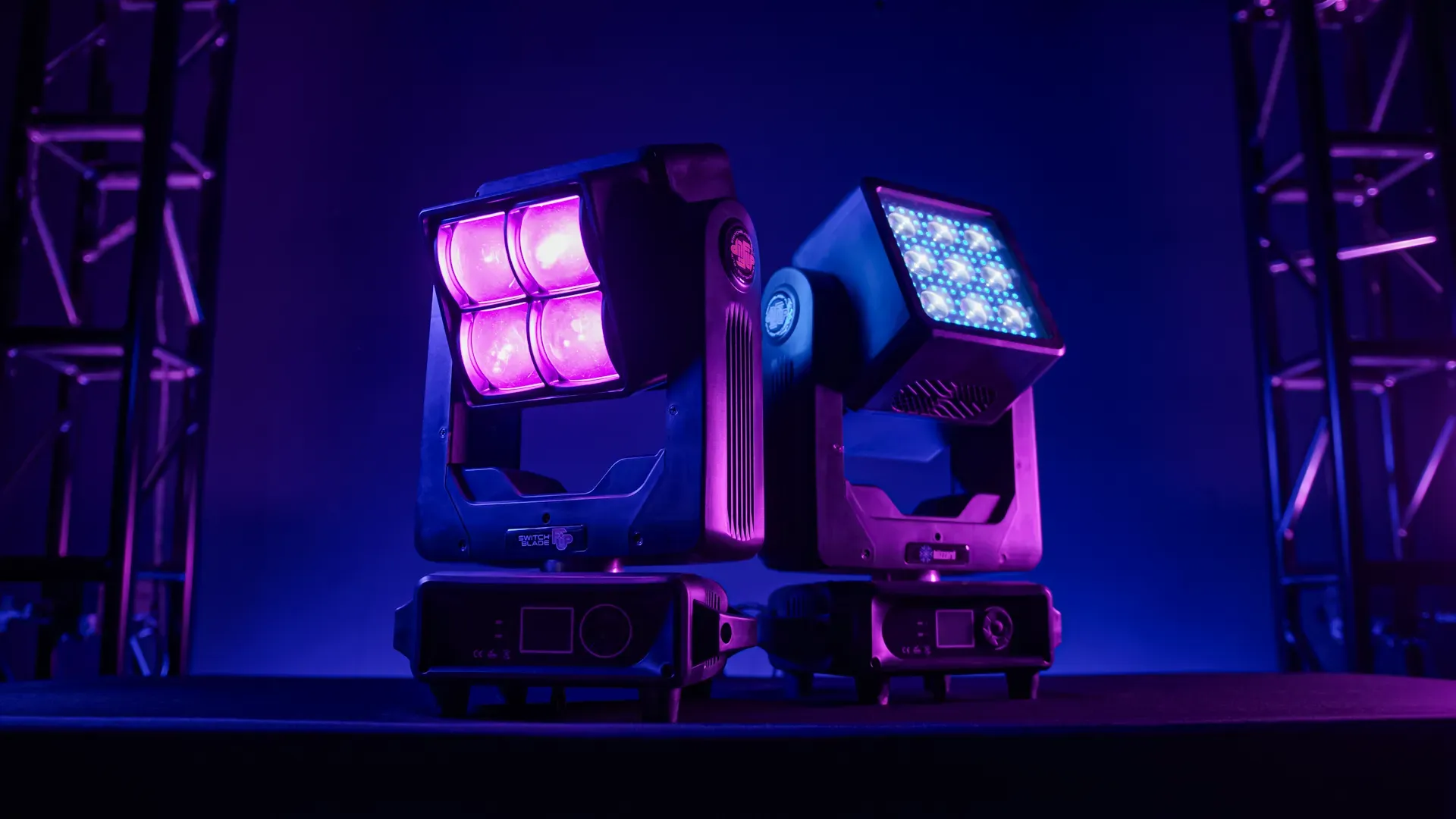

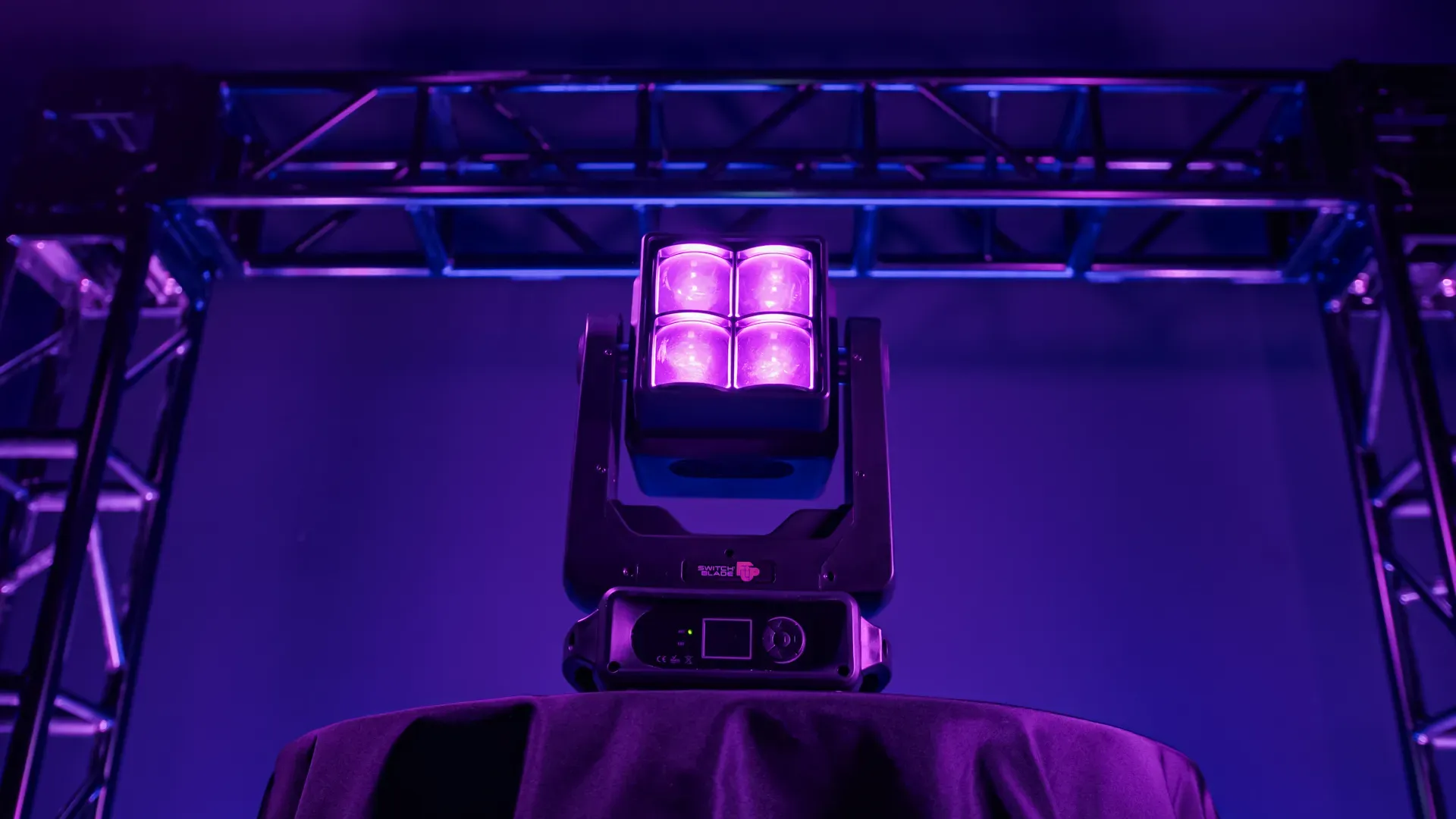

SwitchBlade™ Flip rewrites what a moving head can do. Two faces, one fixture, beam precision on one side, pixel chaos on the other. Spin it, map it, and flip the entire room without missing a beat.

∞

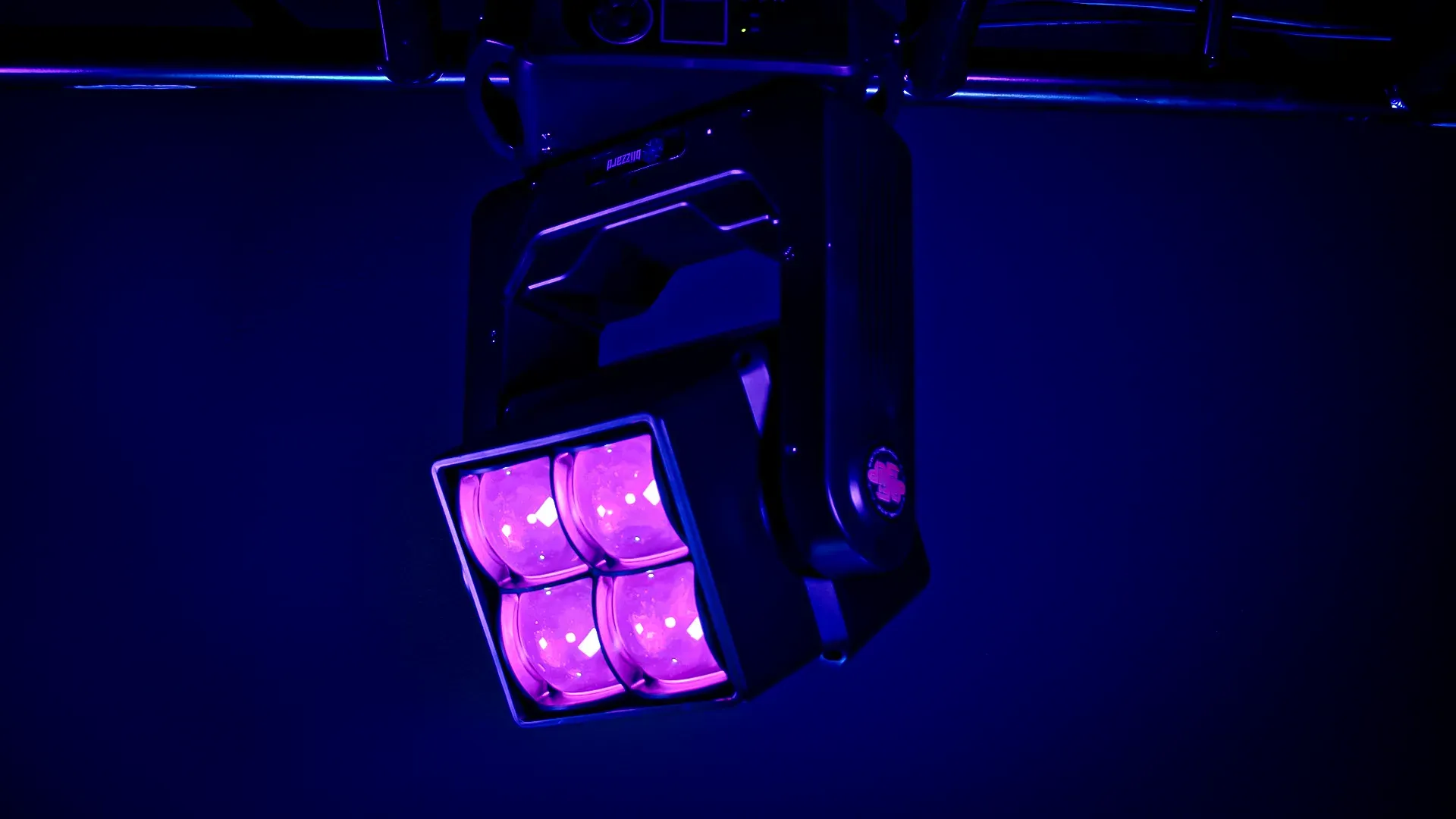

With infinite pan and tilt, SwitchBlade™ Flip moves like no other. It cuts through haze with razor sharp RGBW beams or bathes the crowd in soft white wash, all from a fixture that never runs out of direction.

Address the Situation

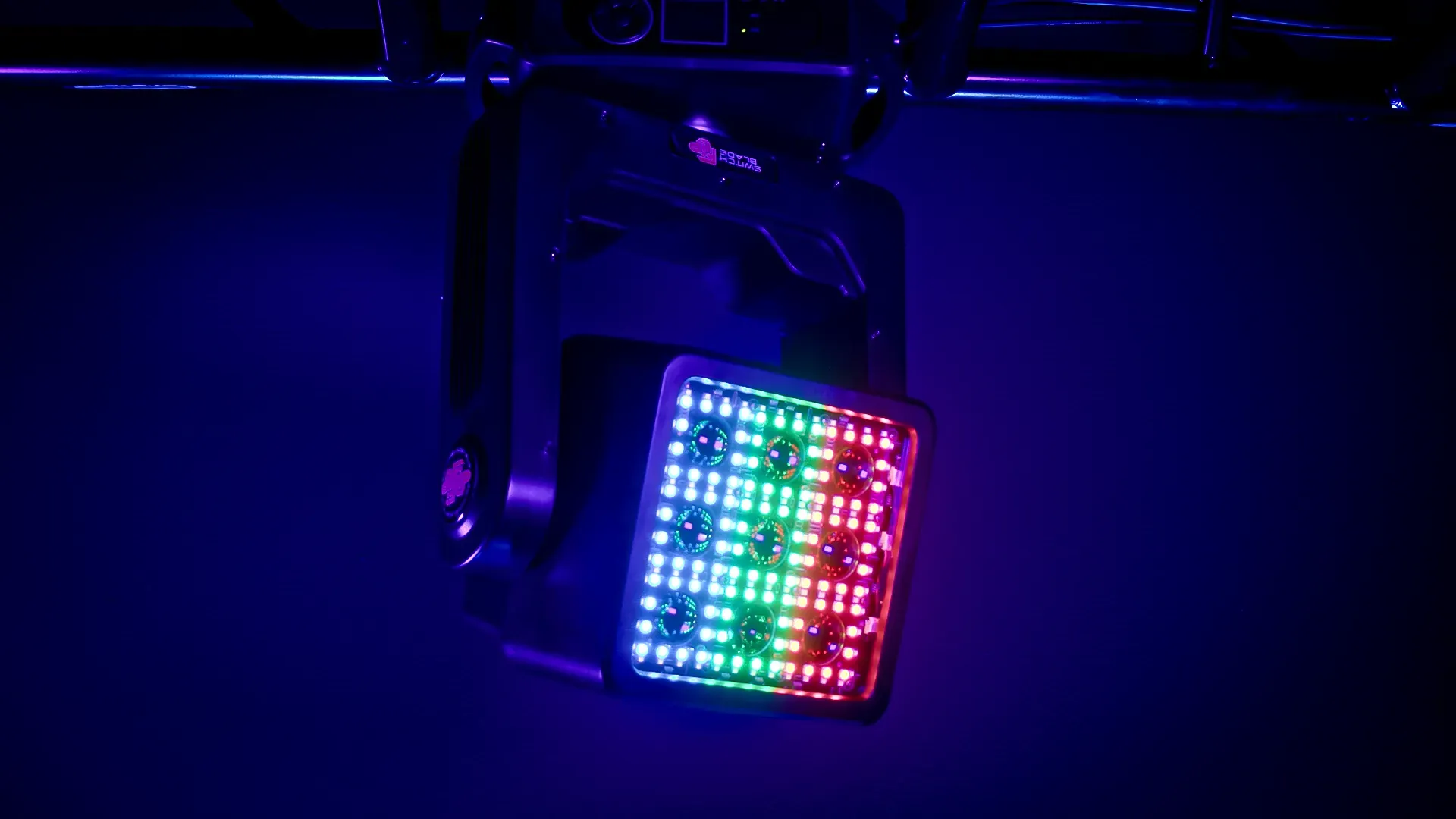

Every LED is addressable, every color is yours. Design patterns, chases, and graphics that dance with the music using SwitchBlade™ Flip’s 93-channel pixel mapping mode.

Flip the Script

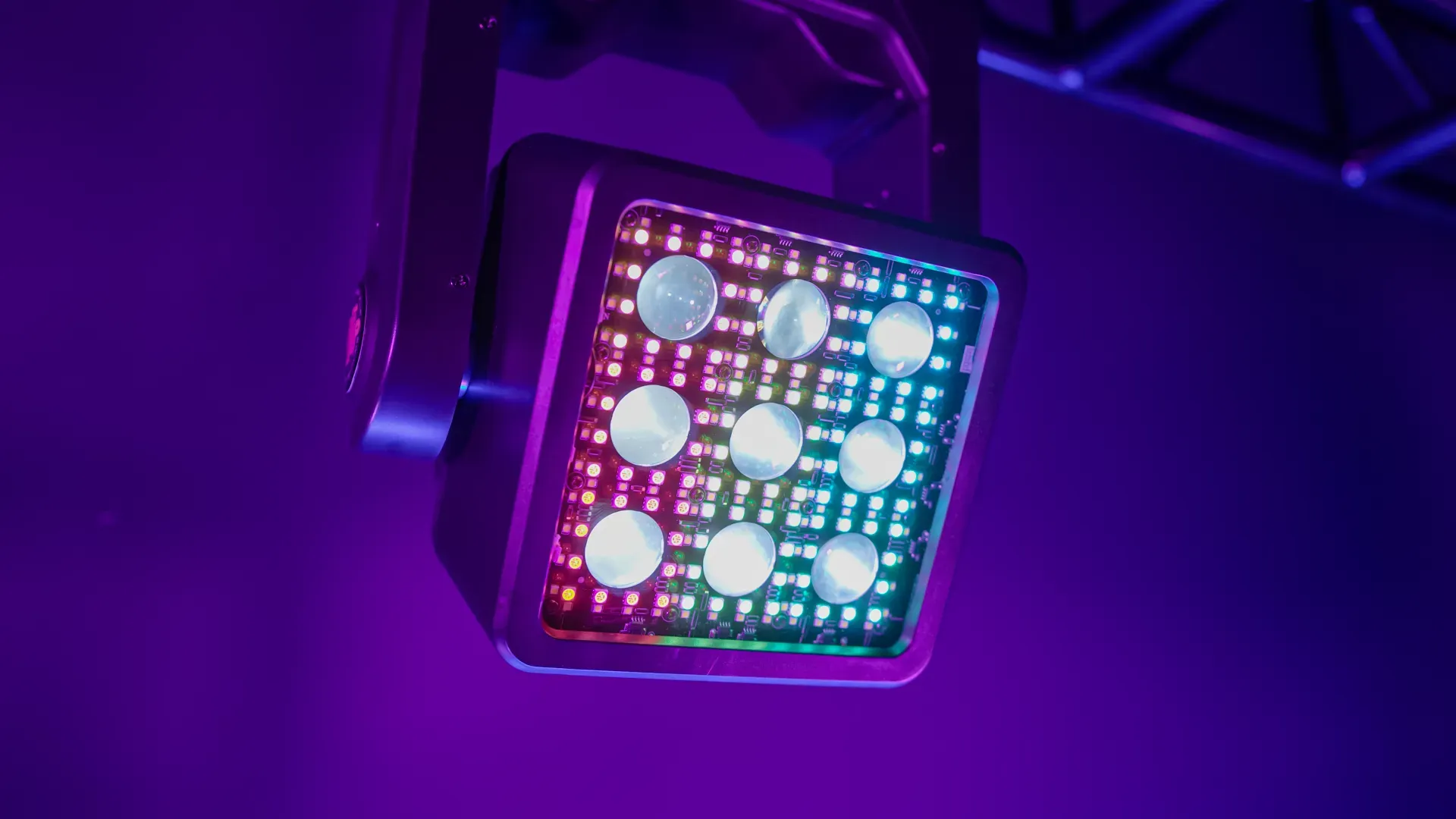

SwitchBlade™ Flip rewrites what a moving head can do. Two faces, one fixture, beam precision on one side, pixel chaos on the other. Spin it, map it, and flip the entire room without missing a beat.

∞

With infinite pan and tilt, SwitchBlade™ Flip moves like no other. It cuts through haze with razor sharp RGBW beams or bathes the crowd in soft white wash, all from a fixture that never runs out of direction.

This product is backed by our

2 Year - Extendable

warranty.

Learn more here.

Tech Specs

The Rundown
  • Dual-face hybrid beam / wash / pixel moving head
  • 4x 60 W RGBW 4-in-1 LEDs (2.5° to 28° motorized zoom)
  • 9x 10 W Cool White LEDs (3.5° beam, 10,000 K CCT)
  • 108x 0.5 W RGB 5050 SMD LEDs
  • 96x 3 W Cool White SMD LEDs (10,000 K CCT)
  • Infinite pan (540°) and tilt (270°) with 8–16 bit resolution
  • Pixel-mappable front and rear LED zones
  • 0–30 Hz strobe effects with speed and background control
  • DMX channel modes: 20 / 34 / 93
  • DMX512, Master / Slave, Auto, and Sound Active modes
  • PowerCON© TRUE1 power input
  • 5-pin DMX in / out connectors
  • 5-button LCD menu with intuitive navigation
  • 2-year limited warranty
Summary

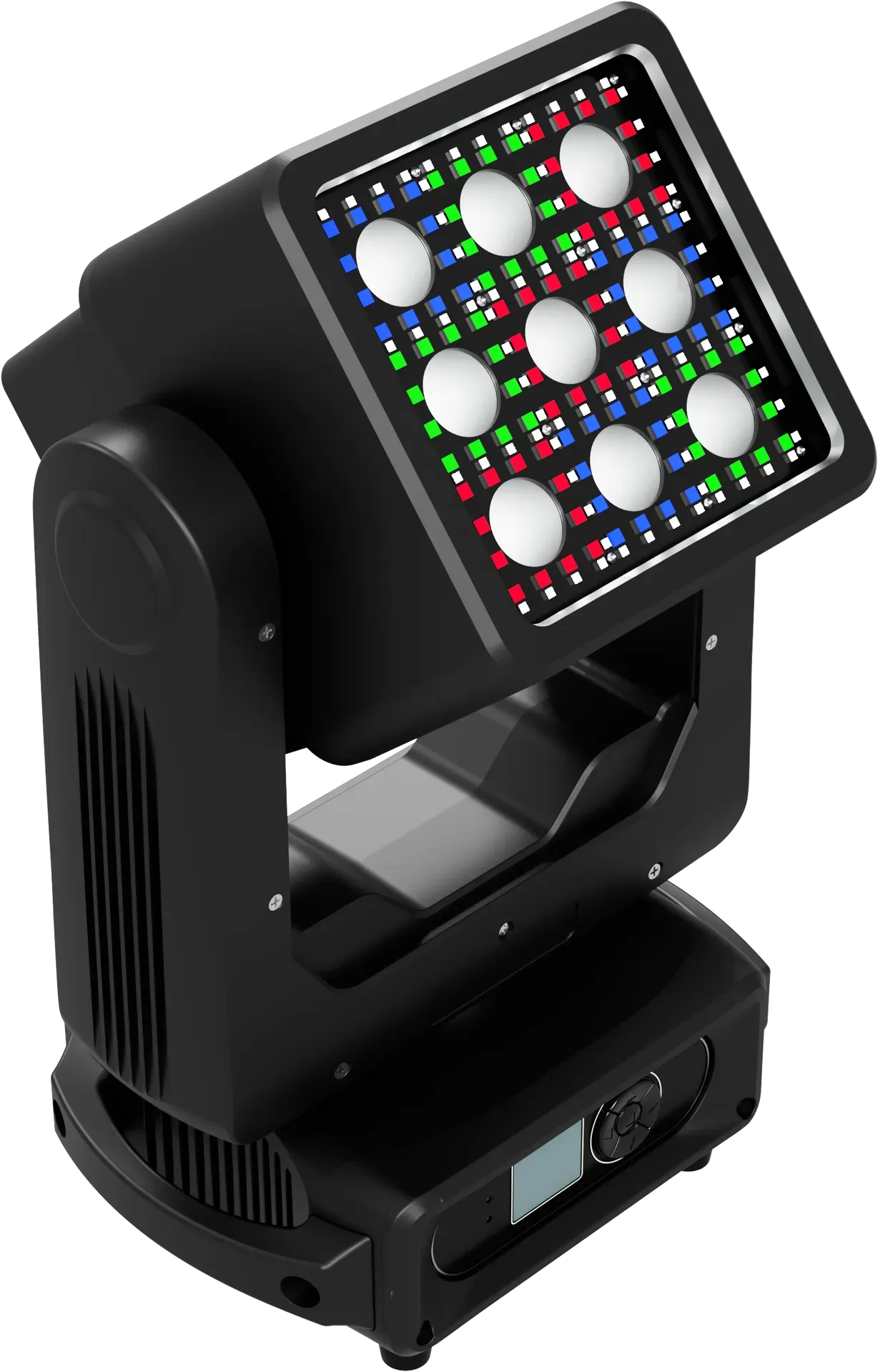

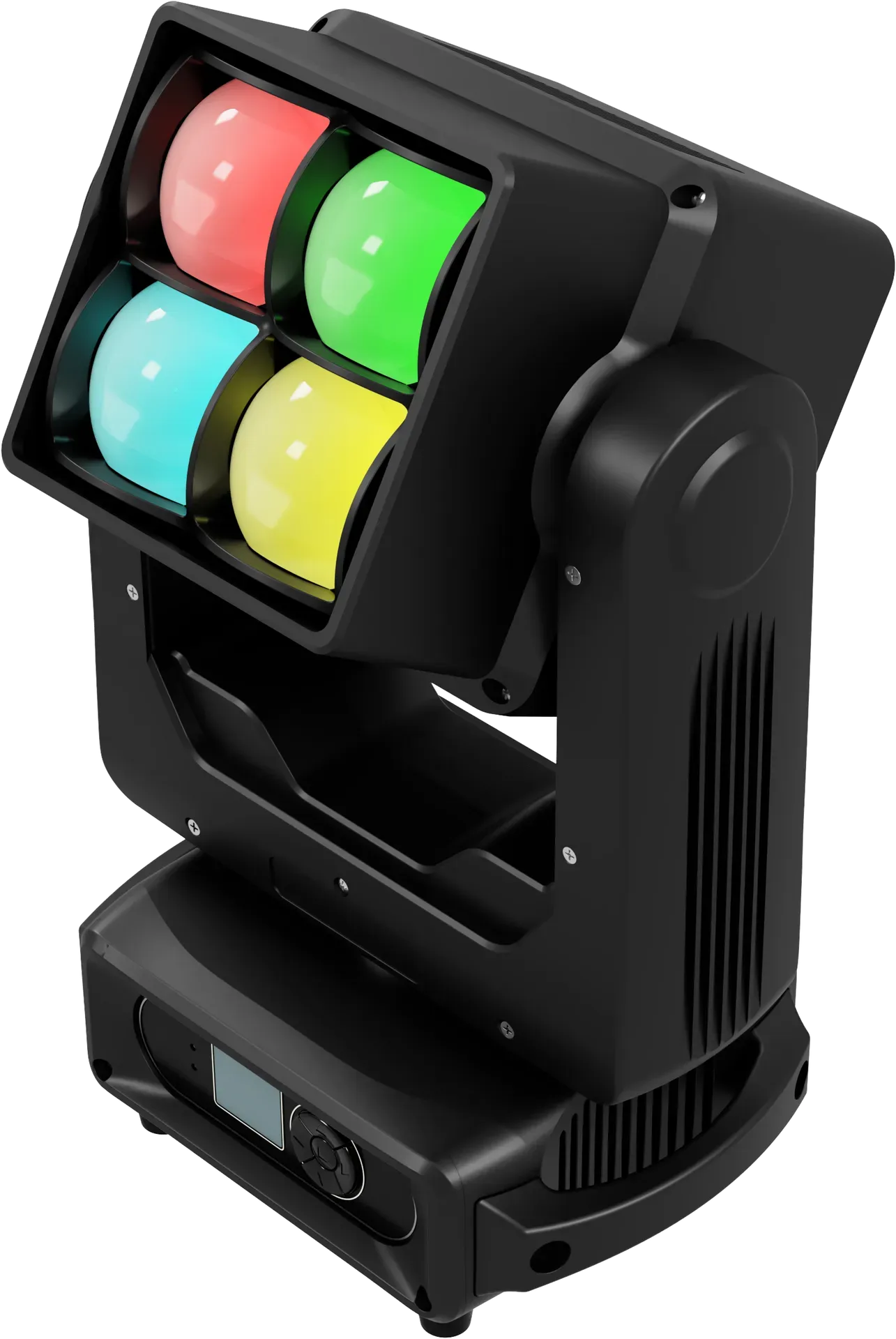

SwitchBlade™ Flip brings dual-sided creativity to your rig. One side delivers tight RGBW beams with motorized zoom, while the other side fires cool-white pixels for crisp eye-candy effects. Combined with infinite pan / tilt, multi-zone pixel mapping, and high-speed movement, it’s built for designers who want their looks to move, shift, and evolve mid-show without swapping fixtures.
Certifications

Optical

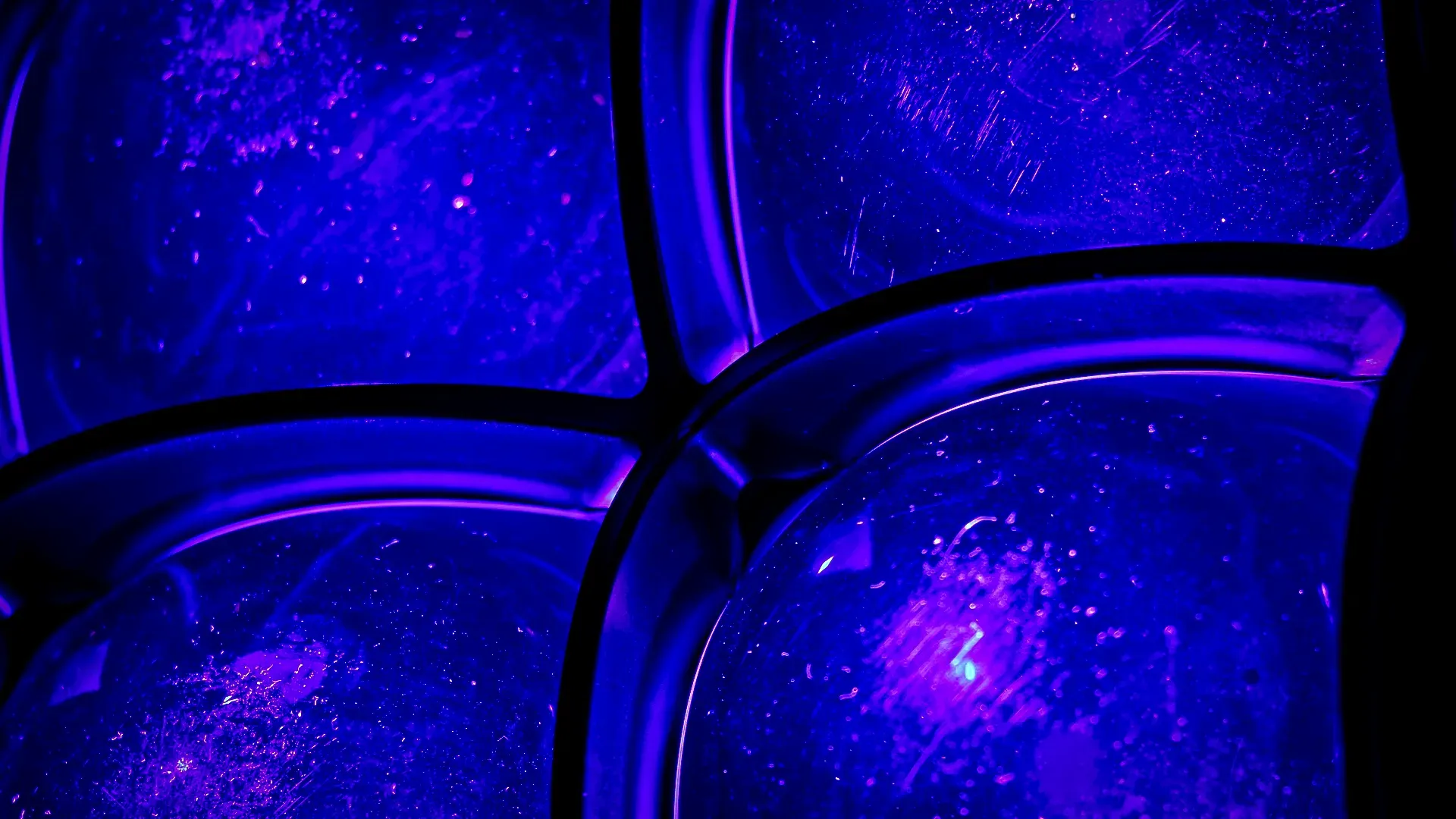

  • 4x 60W RGBW 4-in-1 LEDs (3.9° – 28° zoom)

  • 9x 10W Cool White LEDs (3.5° beam, 10,000 K CCT)

  • 108x 0.5W RGB 5050 SMD LEDs

  • 96x 3W Cool White SMD LEDs (10,000 K CCT)

    • Control

  • Protocol: USITT DMX-512 / RDM

  • DMX Channels: 20 / 34 / 93

  • Interface: 5-Button LCD Menu

  • Modes: DMX, Master / Slave, Auto, Sound Active

    • Movement
    Power & Current

  • Voltage: AC 100 – 240 V, 50 / 60 Hz

  • Power: 370 W (3.26 A, PF 0.99)

  • Fuse: 10 A, 250 V

  • Max Ambient Temp: 104 °F

    • Dimensions

    19.4" x 7.8" x 11.4"

    22.8 lbs

    lbs

    General Specs
    Connectors

  • DMX In / Out: 5-Pin XLR Male / Female

  • Power: PowerCON© TRUE1 In / Out

  • Mount: Dual Omega Brackets + Safety Cable Rigging Point

    • Hang Time

    /10

    Density

    /10

    Rigging & Application
