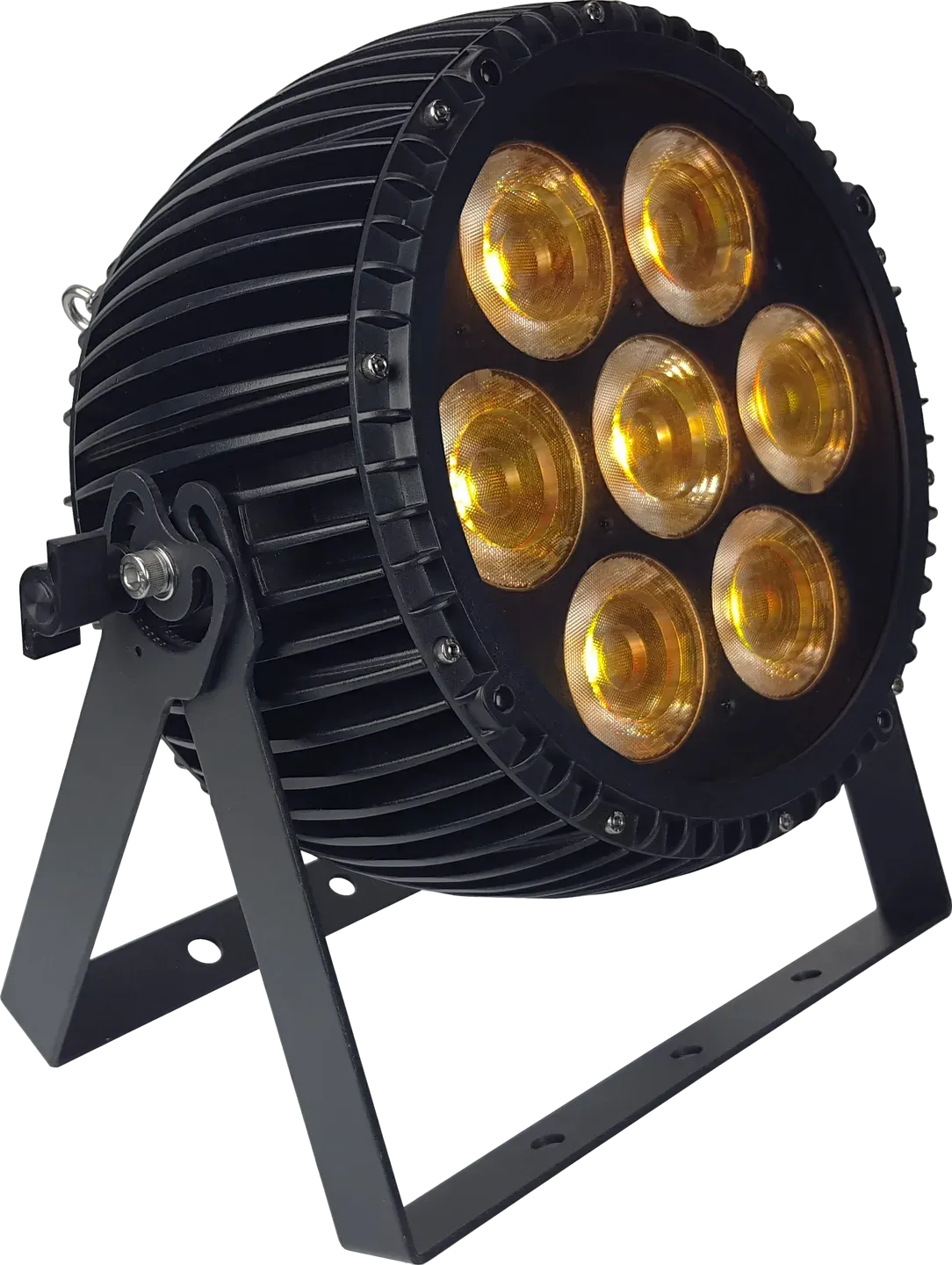

TOURNado™ WiMAX 7

7* 25W RGBAW+L+UV LED IP65 Rated PAR

$999.99

TOURNado™ WiMAX 7 Buy

More Lightning for your Thunder

The TOURnado™ WIMAX 7 offers super bright RGBAW+UV+Lime color mixing from 7x 25W 7-in-1 LEDs with 25° optics. Adding lime can deliver a better CRI for warmer, more lifelike skin tones. It is also IP65 outdoor rated, and sports a larger natural convection cooled cast aluminum housing than previous models. Its tempered glass lens is watertight, and the back has outdoor rated 3-pin XLR data and AC power input/output connectors with rubber seals.

Unleash the Storm

All TOURnado™ WIMAX fixtures come equipped with a built-in W-DMX™ receiver for ultra-stable wireless capability (500+ meters), plus an easy-to-use 4-button OLED control panel which gives users total control of master/slave settings, 5 auto modes, custom programs (up to 3* 20 scene programs), fade, strobe, manual color adjustments, multiple user-selectable 32-bit dimming modes and more.

Main Features

* 7x 25W RGBAW+Lime+UV 7-in-1 LEDs * IP65 rated outdoor LED fixture * OLED control menu with 4x touch sensitive buttons * 25-degree beam angle * Built-in wireless W-DMX™ receiver * Built-in color & chase macros via DMX * Built-in automated programs via master/slave * Color mixing ability in standalone mode * 7/9/13-channel DMX profiles w/32-bit dimming * Convection cooled cast aluminum housing * Dual mounting brackets for positioning flexibility * Flicker-free constant-current LED driver * IP rated locking power and 3-pin DMX connections * Dimensions: 14x6.7x13.3 inches (355x172x337 mm) * Weight: 17.0 lbs (7.7 kg)

Product Specifications

Optical


Light Source: 7* high output 25-watt RGBAW+L+UV LEDs

25° beam angle

Flicker-free LEDs

Luminous Intensity: 4,651 Lux (432.1 fc) @ 2.5m | 1,185 Lux (110.1 fc) @ 5m

Wireless Receiver


Wireless W-DMX™

Transmission band: 2.4Ghz ISM (2.4-2.525Ghz)

Channels: 512

Receiver sensitivity: -94dBm

Control


Protocol: USITT DMX-512

7/9/13-channel DMX modes

Standalone, master/slave, DMX modes

IP65 Seetronic 3-pin DMX input/output

4-button OLED control menu display

Power & Current


100-264VAC, 47-63 Hz

Power Consumption: 137W, 1.16A, PF: .99

Warranty


2-year limited warranty, does not cover malfunction caused by damage to LEDs

cETLus certified

Downloads

  • Cutsheet

    Download

    tournado-wimax-7_cutsheet.pdf

  • Manual
    Rev A

    Download

    tournado-wimax-7_manual_rev_a.pdf
