This product has been discontinued.

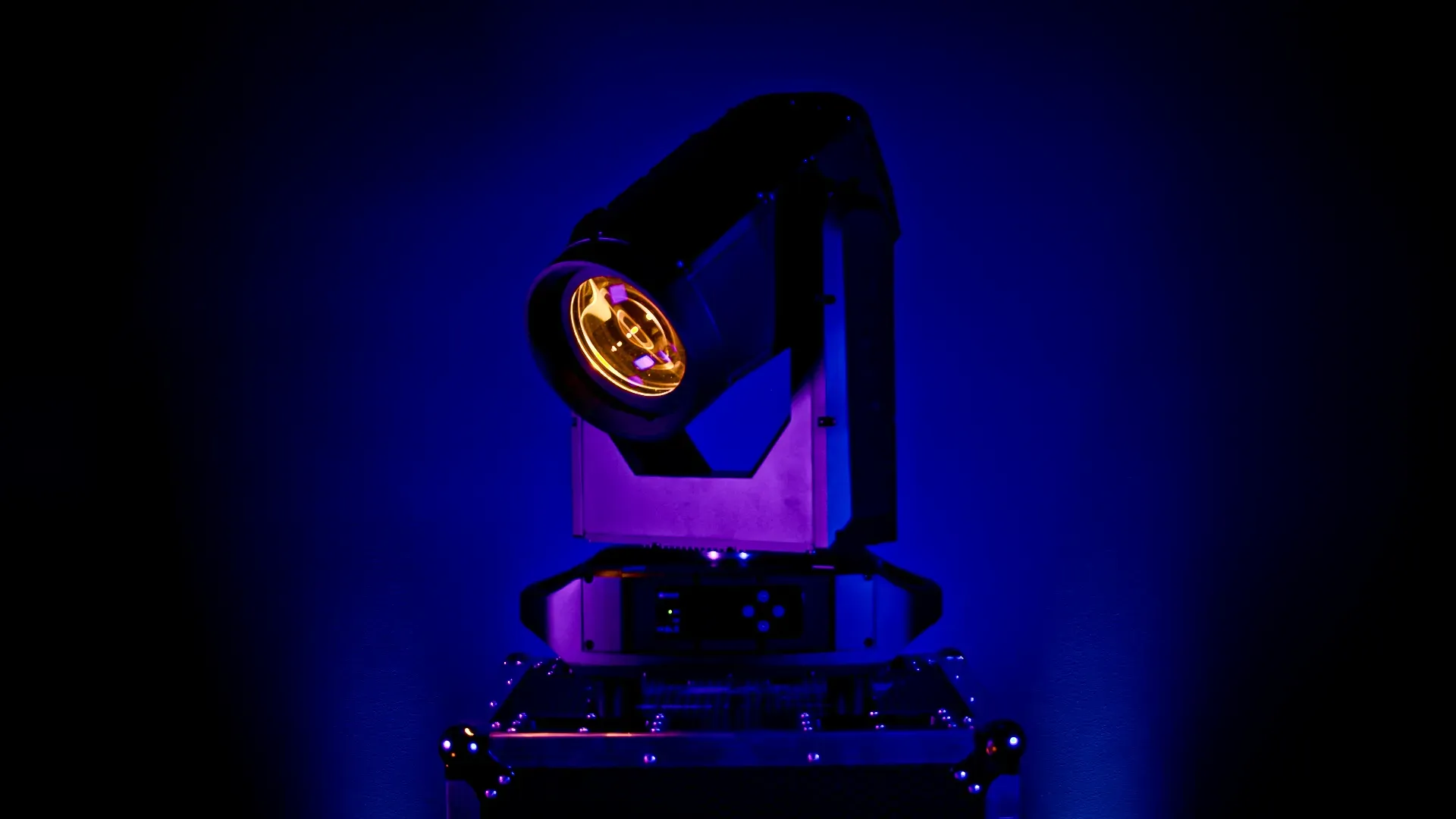

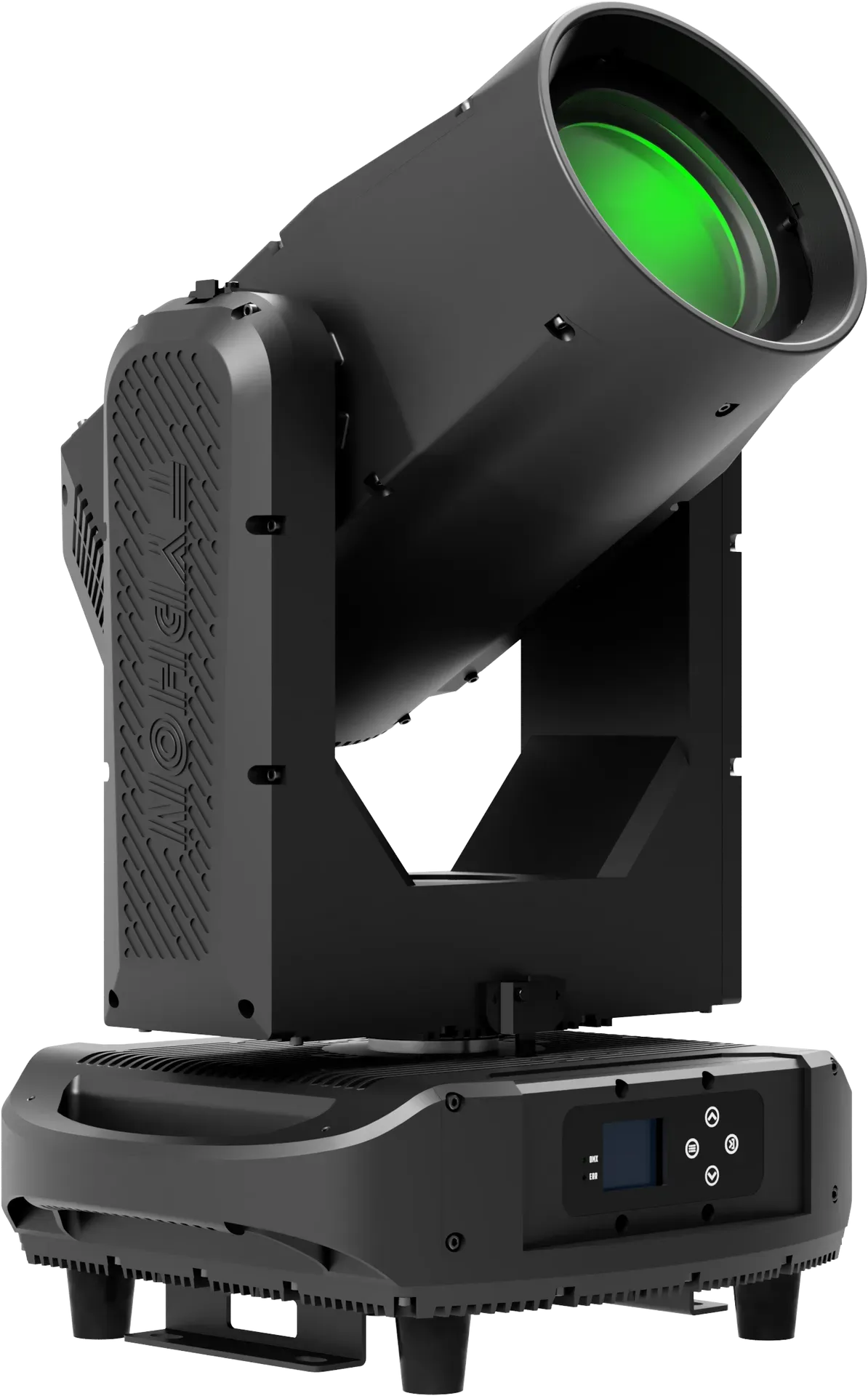

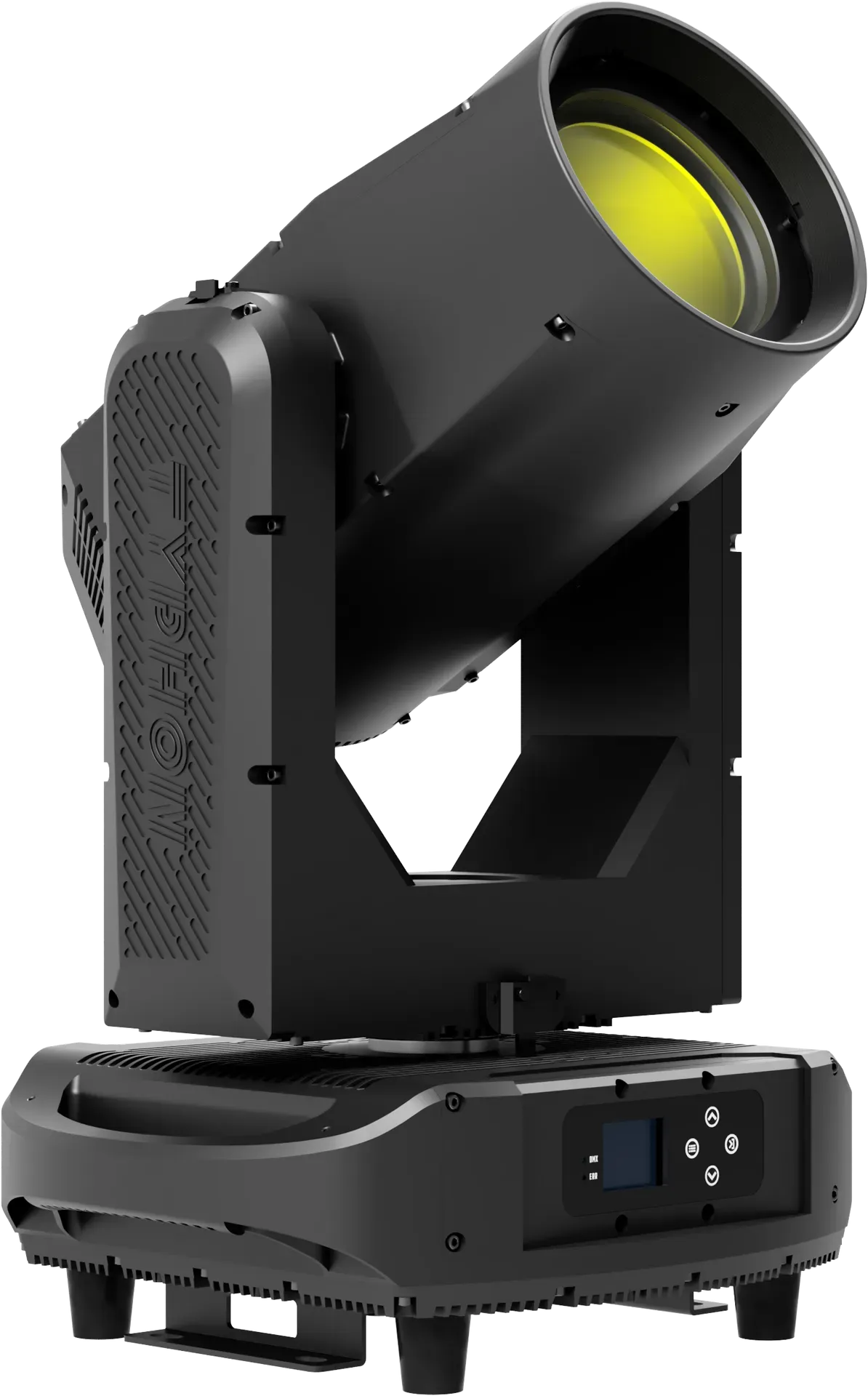

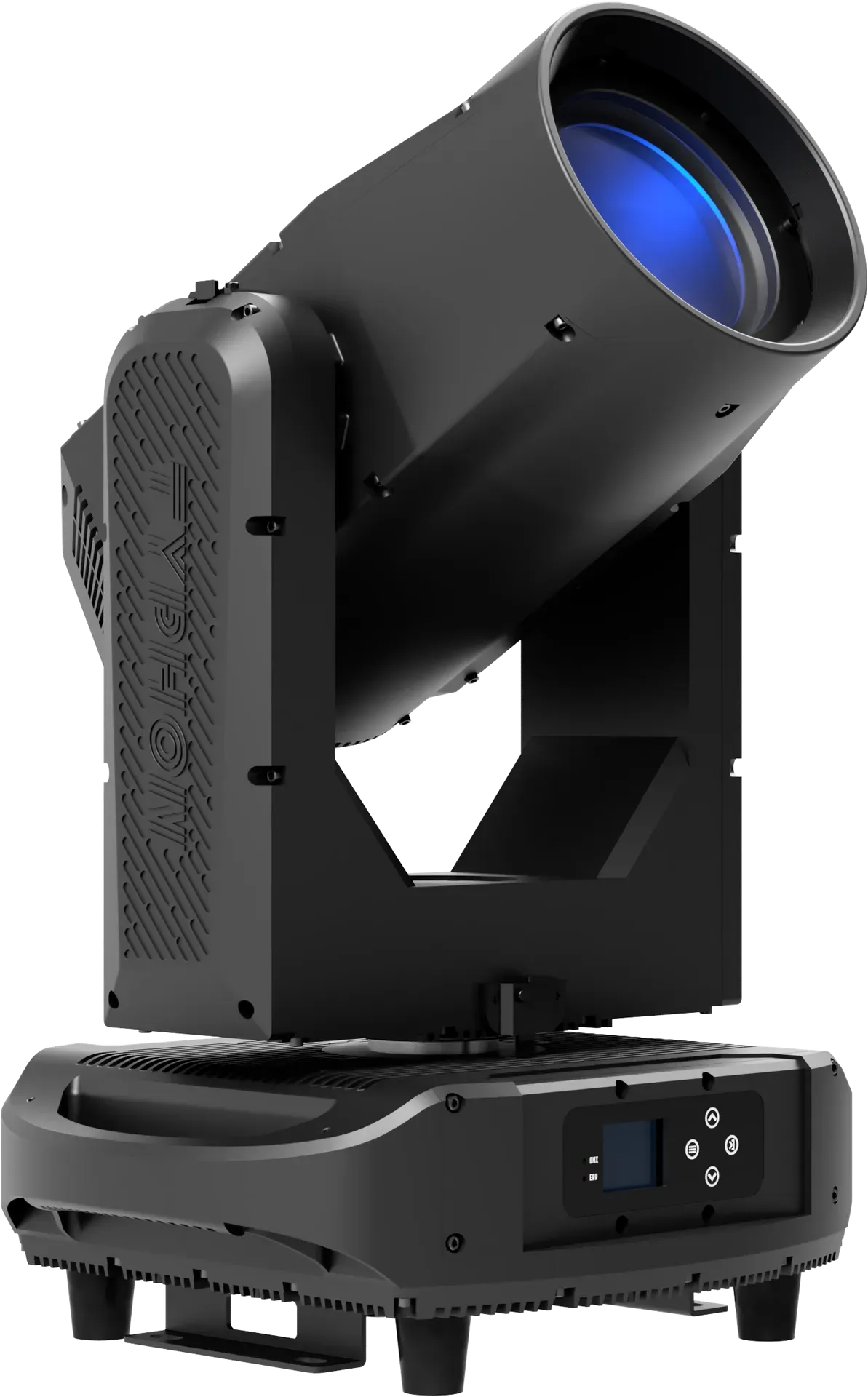

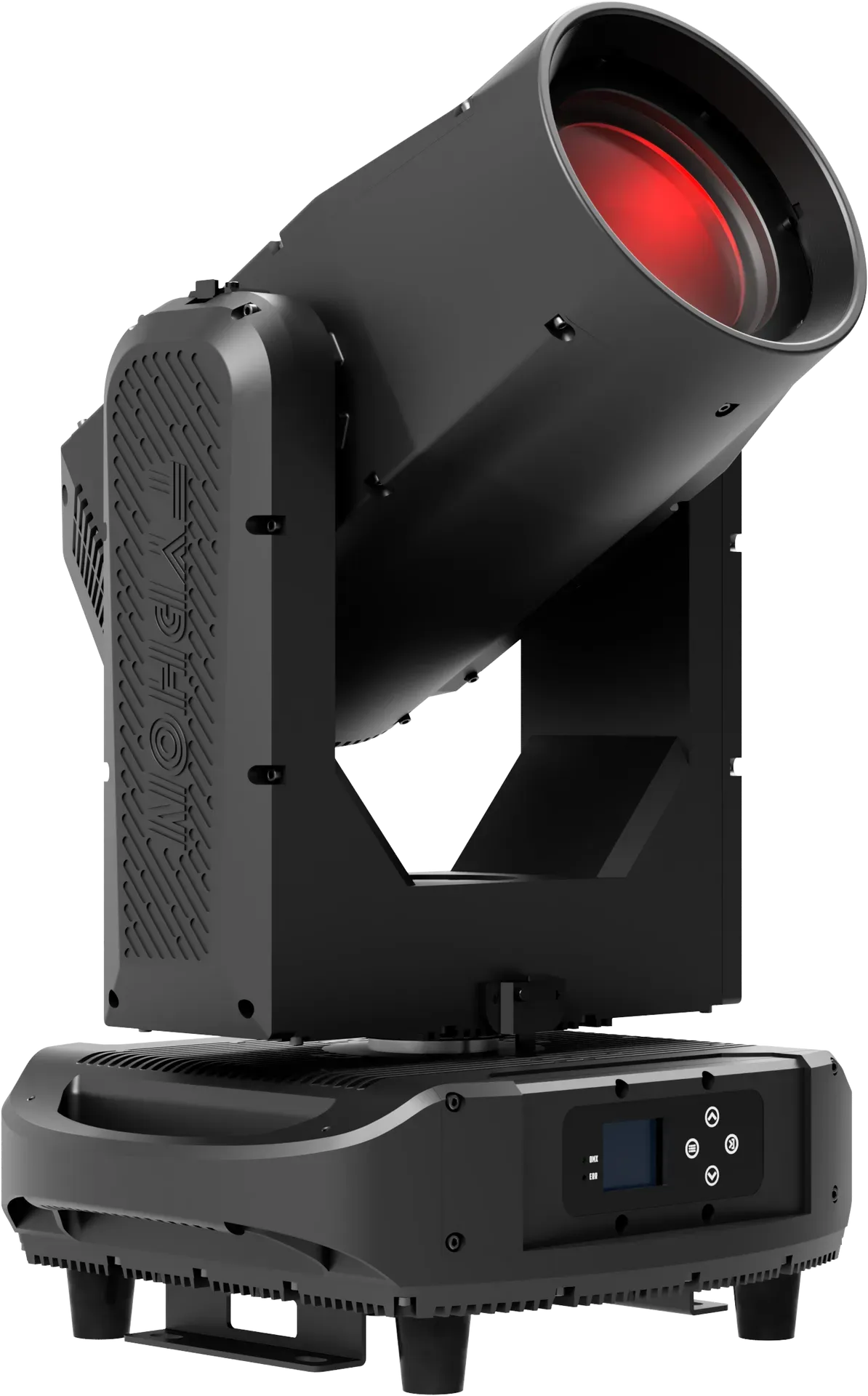

Typhon™ IP BSW 400

SKU:

124666

3900.00

  • IP66 rated beam spot wash LED moving head
  • 400W white LED, 6800K, 20,000 hr life
  • CMY mixing with CTO adjustment
  • 8 color plus open color wheel
  • Rotating gobo wheel with 7 gobos plus open
  • Static gobo wheel with 10 gobos plus 2 beam reducers plus open
  • Linear 3 to 38 degree zoom
  • Motorized focus and frost effect
  • Dual rotating prisms, 3 facet and 4 facet
  • 0 to 30 Hz strobe with pulse and random effects
  • Pan 540 degrees and tilt 270 degrees with 8 or 16 bit resolution
  • Protocols: DMX512 and RDM
  • 23 channel mode
  • TFT LCD interface with touch buttons
  • PowerCON© TRUE1 compatible In/Out
  • Temperature rated for up to 104°F (40°C) ambient
  • 2-year limited warranty
  • IP66 rated beam spot wash LED moving head
  • 400W white LED, 6800K, 20,000 hr life
  • CMY mixing with CTO adjustment
  • 8 color plus open color wheel
  • Rotating gobo wheel with 7 gobos plus open
  • Static gobo wheel with 10 gobos plus 2 beam reducers plus open
  • Linear 3 to 38 degree zoom
  • Motorized focus and frost effect
  • Dual rotating prisms, 3 facet and 4 facet
  • 0 to 30 Hz strobe with pulse and random effects
  • Pan 540 degrees and tilt 270 degrees with 8 or 16 bit resolution
  • Protocols: DMX512 and RDM
  • 23 channel mode
  • TFT LCD interface with touch buttons
  • PowerCON© TRUE1 compatible In/Out
  • Temperature rated for up to 104°F (40°C) ambient
  • 2-year limited warranty

Options

No items found.
Add to Cart
›
Find a Reseller ›

Backed by our 2-year extendable warranty

Backed by our 3-year extendable warranty

Backed by our 7-year warranty

Backed by our 2-year warranty

Backed by our 6 month warranty

Backed by our 90 day warranty

Backed by our 1-year warranty

Backed by our limited lifetime warranty

Paint with Power

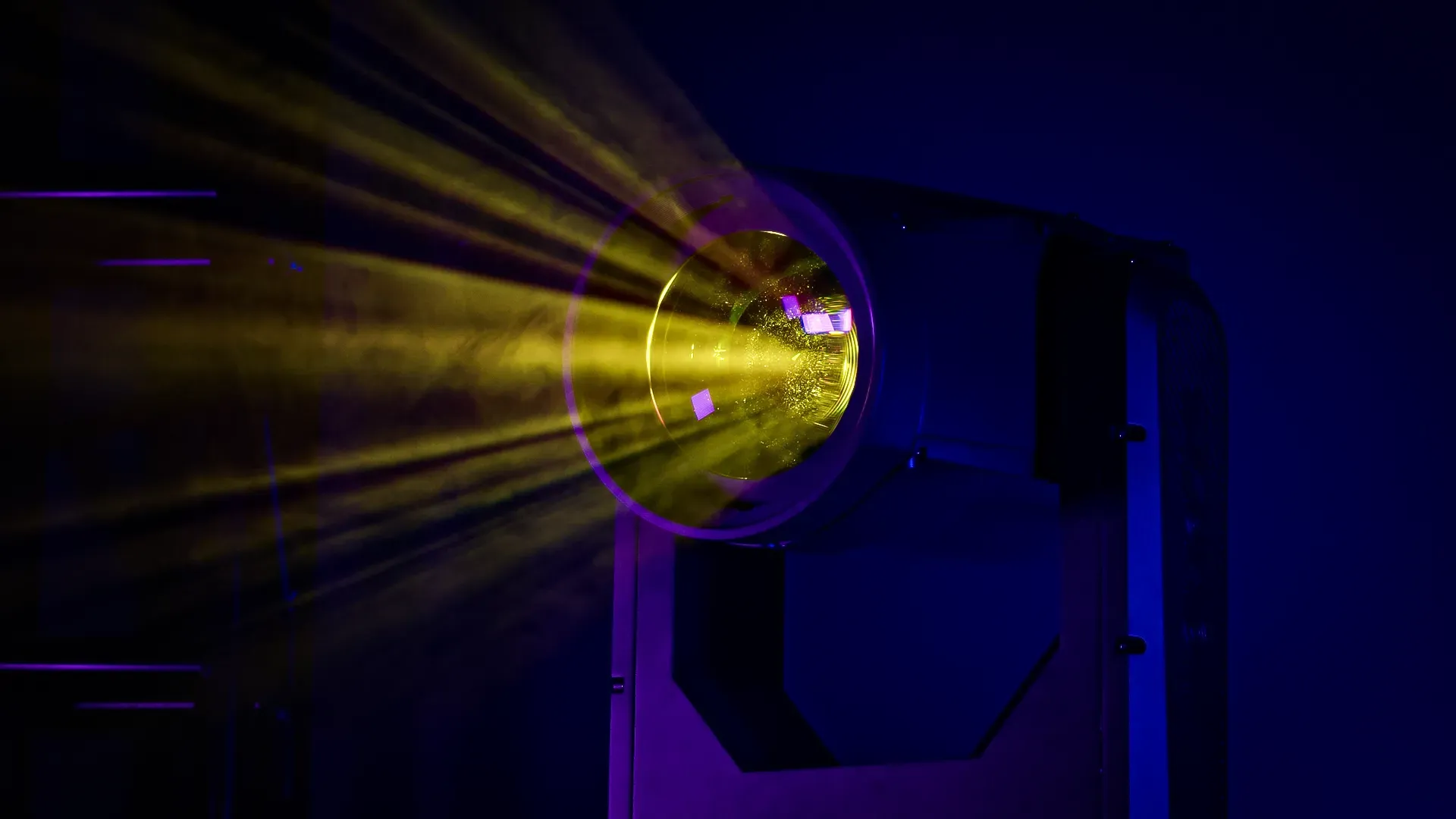

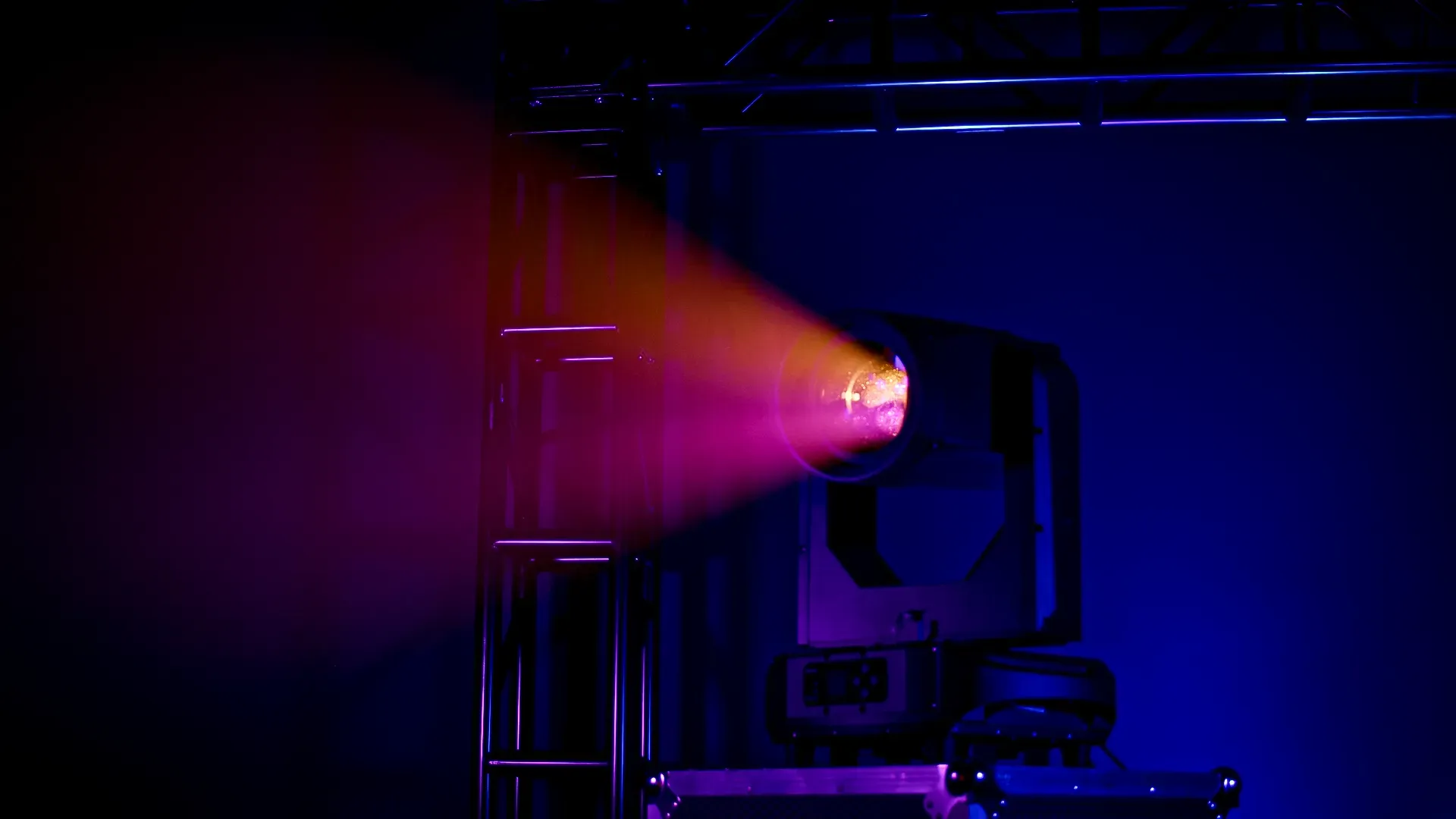

BSW 400 brings CMY color mixing, CTO shaping, and a 400W LED engine together for looks that cut through distance. Build tight beams or smooth washes with fast, precise movement and confident output.

More Tools = More Control

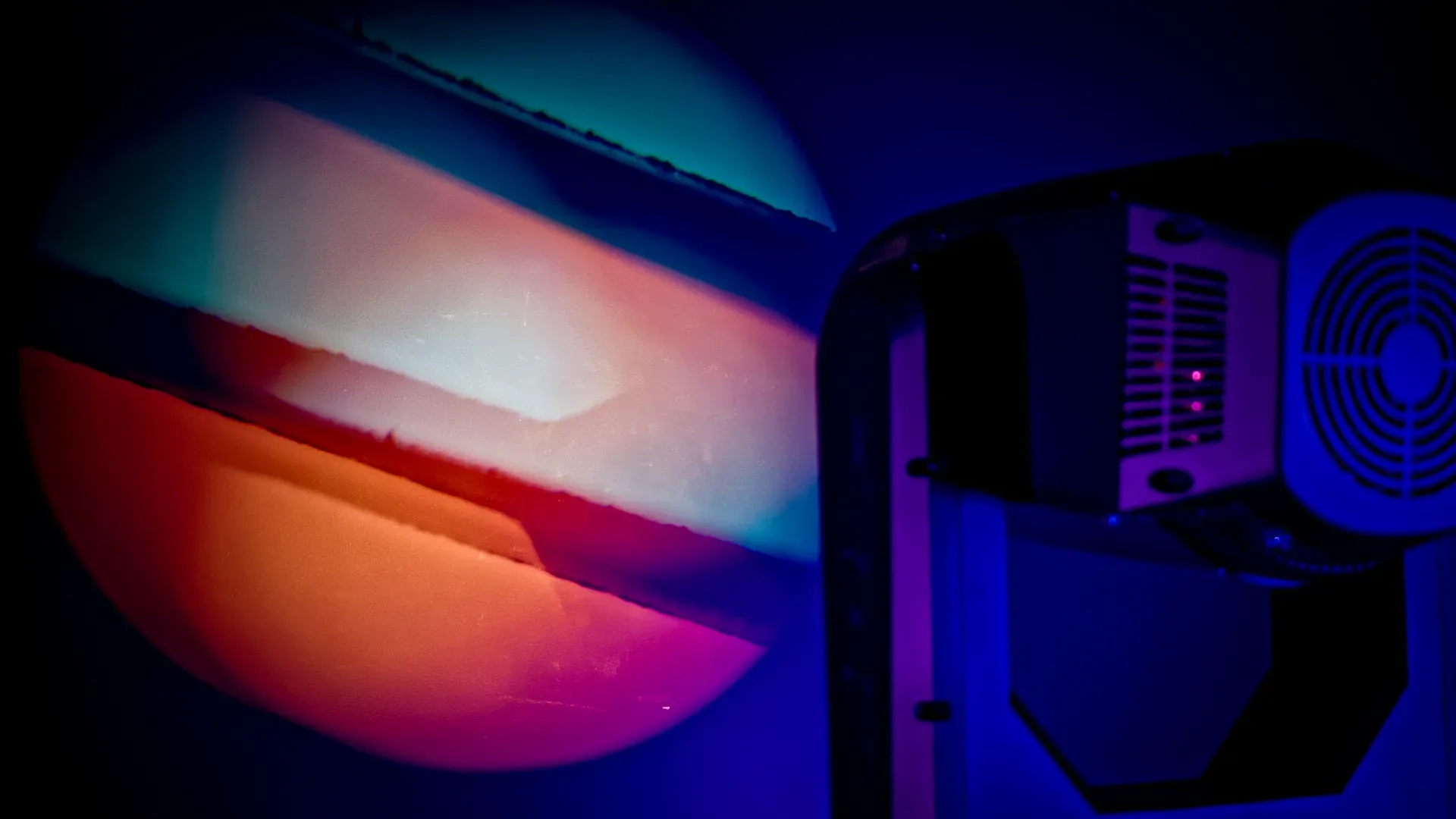

With dual gobo wheels, dual prisms, frost, focus, and a wide zoom range, BSW 400 packs a full effects toolbox into one fixture. Designers can layer texture, build depth, or sharpen details with quick response.

Ready for Weather

The IP66 enclosure protects BSW 400 from dust and moisture, giving you reliable performance on outdoor stages or permanent installs. It stays stable while delivering consistent color and movement.

Paint with Power

BSW 400 brings CMY color mixing, CTO shaping, and a 400W LED engine together for looks that cut through distance. Build tight beams or smooth washes with fast, precise movement and confident output.

More Tools = More Control

With dual gobo wheels, dual prisms, frost, focus, and a wide zoom range, BSW 400 packs a full effects toolbox into one fixture. Designers can layer texture, build depth, or sharpen details with quick response.

This product is backed by our

2 Year - Extendable

warranty.

Learn more here.

Tech Specs

The Rundown
  • IP66 rated beam spot wash LED moving head
  • 400W white LED, 6800K, 20,000 hr life
  • CMY mixing with CTO adjustment
  • 8 color plus open color wheel
  • Rotating gobo wheel with 7 gobos plus open
  • Static gobo wheel with 10 gobos plus 2 beam reducers plus open
  • Linear 3 to 38 degree zoom
  • Motorized focus and frost effect
  • Dual rotating prisms, 3 facet and 4 facet
  • 0 to 30 Hz strobe with pulse and random effects
  • Pan 540 degrees and tilt 270 degrees with 8 or 16 bit resolution
  • Protocols: DMX512 and RDM
  • 23 channel mode
  • TFT LCD interface with touch buttons
  • PowerCON© TRUE1 compatible In/Out
  • Temperature rated for up to 104°F (40°C) ambient
  • 2-year limited warranty
Summary
Typhon™ IP BSW 400 delivers a 400W white LED engine paired with a 3 to 38 degree motorized zoom that shifts from tight beam to wide wash. Designers gain CMY color mixing, an 8 color plus open wheel, CTO control, and two gobo systems including a rotating wheel with 7 gobos and a static wheel with 10 gobos plus 2 beam reducers. Dual prisms and fast 0 to 30 Hz strobe expand creative tools, while 540 degree pan and 270 degree tilt offer smooth movement with 8 or 16 bit precision. The IP66 housing and TFT LCD interface make it reliable for outdoor stages, touring projects, or permanent architectural installs.
Certifications

Optical

  • Light Source: 400W white LED, 20,000 hr life

  • Color Temp: 6800K

  • CRI: 72

  • Beam Angle: 3 to 38 degrees motorized zoom

  • Gobo Sizes: 19.7 mm outer, 13 mm inner

  • Rotating Gobos: 7 plus open

  • Static Gobos: 10 plus 2 beam reducers plus open

  • Color Wheel: 8 colors plus open with CTO

  • Prisms: 3 facet and 4 facet rotating

  • Frost: Full range filter

  • Focus: Motorized electronic

  • Strobe: 0 to 30 Hz with pulse and random modes

    • Control

  • Protocols: DMX512, RDM

  • DMX Channel Mode: 23 channel mode

  • DMX Control: 5-pin XLR In/Out

  • Pan/Tilt: 540 degrees pan, 270 degrees tilt with 8 or 16 bit resolution

  • Operating Modes: DMX, master/slave, manual, auto

  • Display: TFT LCD with touch buttons

    • Movement
    Power & Current

  • Operating Voltage: AC 100 to 240 V, 50 to 60 Hz

  • Power Consumption: 508W, 4.47A, PF 0.99

  • Max Ambient Temp: 104°F (40°C)

    • Dimensions

    62.8 lbs

    lbs

    General Specs

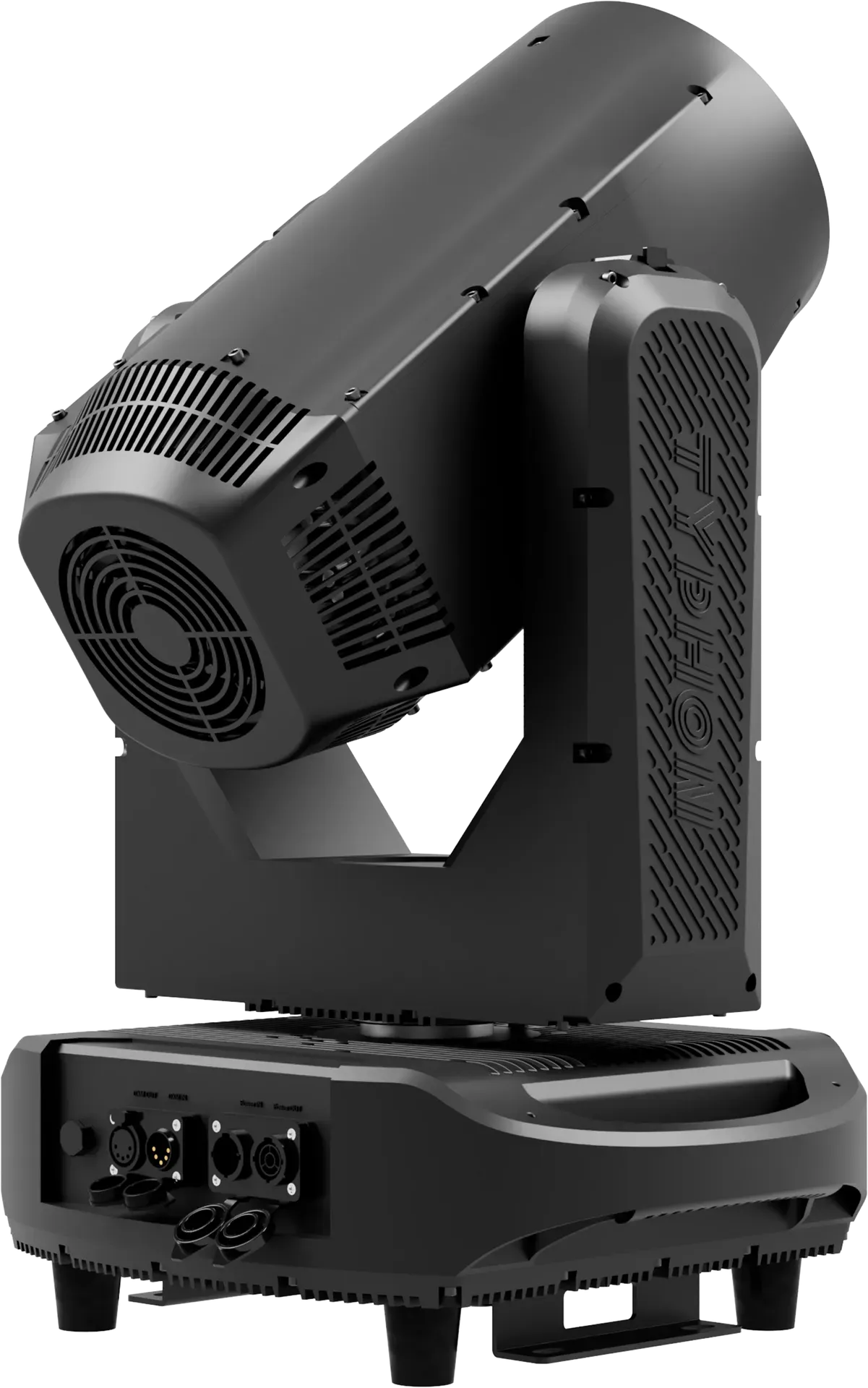

    Connectors

  • DMX In/Out: 5-pin XLR

  • Power: PowerCON© TRUE1 In/Out

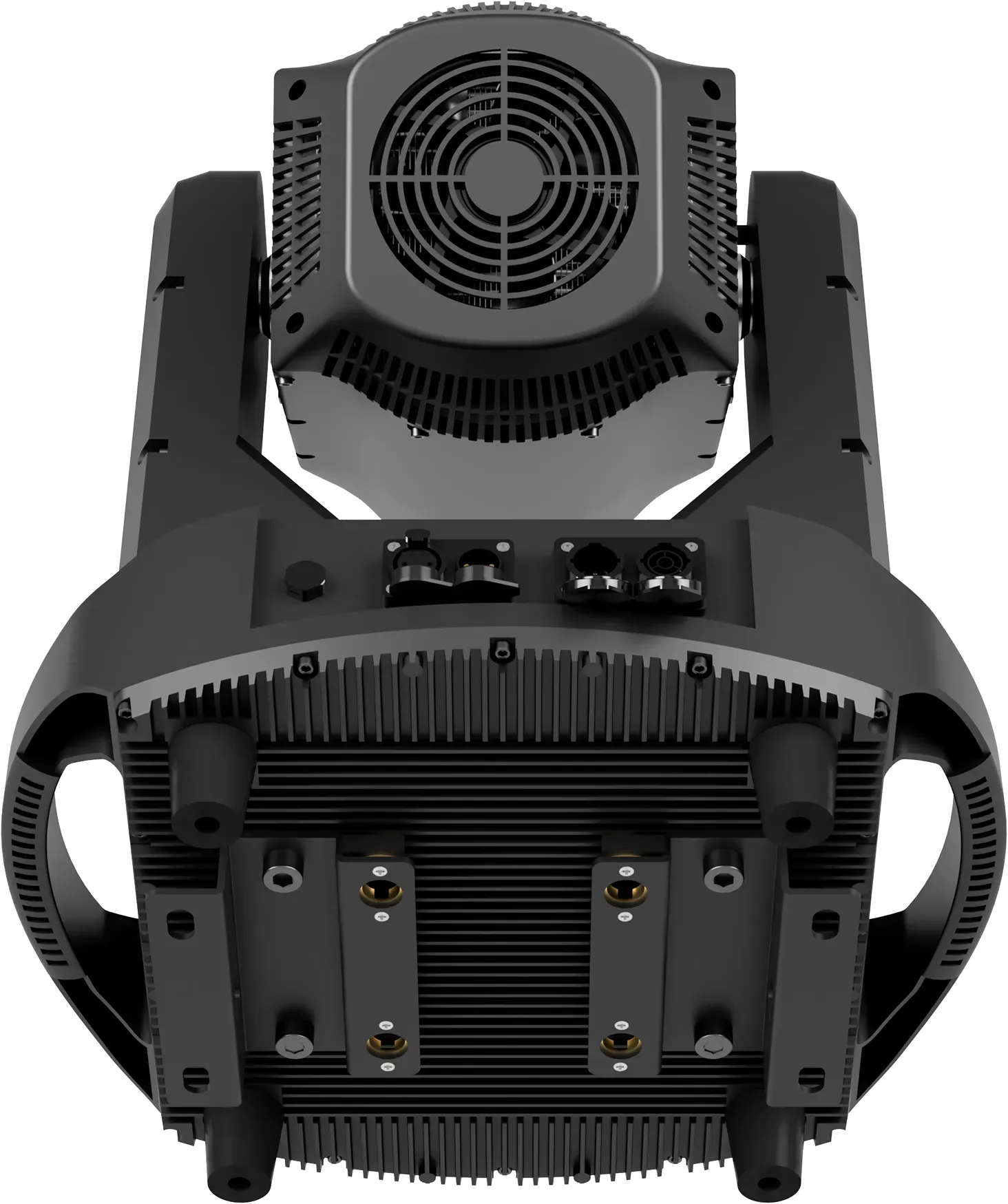

  • Rigging: Dual mounting brackets and safety attachment points

    • Hang Time

    /10

    Density

    /10

    Rigging & Application
