G-Mix™ 200 200W LED, CMY, 14 Gobos, 9+ Colors

G-Mix™ 200

$2,849.99

SKU: 124008

  • 200W OSRAM® white LED light engine
  • 9 dichroic color filters + open
  • Smooth CMY color mixing system
  • Rotating gobo wheel: 7 rotating, indexable and replaceable slot-n-lock glass gobos + open
  • Static gobo wheel: 7 metal gobos + open
  • Linear motorized zoom (5°- 42°)
  • 3/8-facet bidirectional rotating prism
  • Motorized linear iris and frost
  • Linear electronic focus + auto focus
  • Strobe effect with variable speed (max.15 flashes/sec.)
  • Smooth dimmer from 0 - 100%
  • 25/30-channel standard & extended DMX modes
Fast, Free Shipping on Orders $99+

- +
Add to Cart
Where Else to Buy

Suggested Products

Our Flagship Lighting Console

Add to Cart - $1,899.99

200W LED, 14 Gobos, 8+ Colors

Add to Cart - $1,749.99

1,000W Haze Machine

Add to Cart - $799.99

2x Fixture Road Case

Add to Cart - $524.99

Ultra High Output

Make your shows bigger and better with
G-Mix™ 200 moving spot fixtures

Product Summary

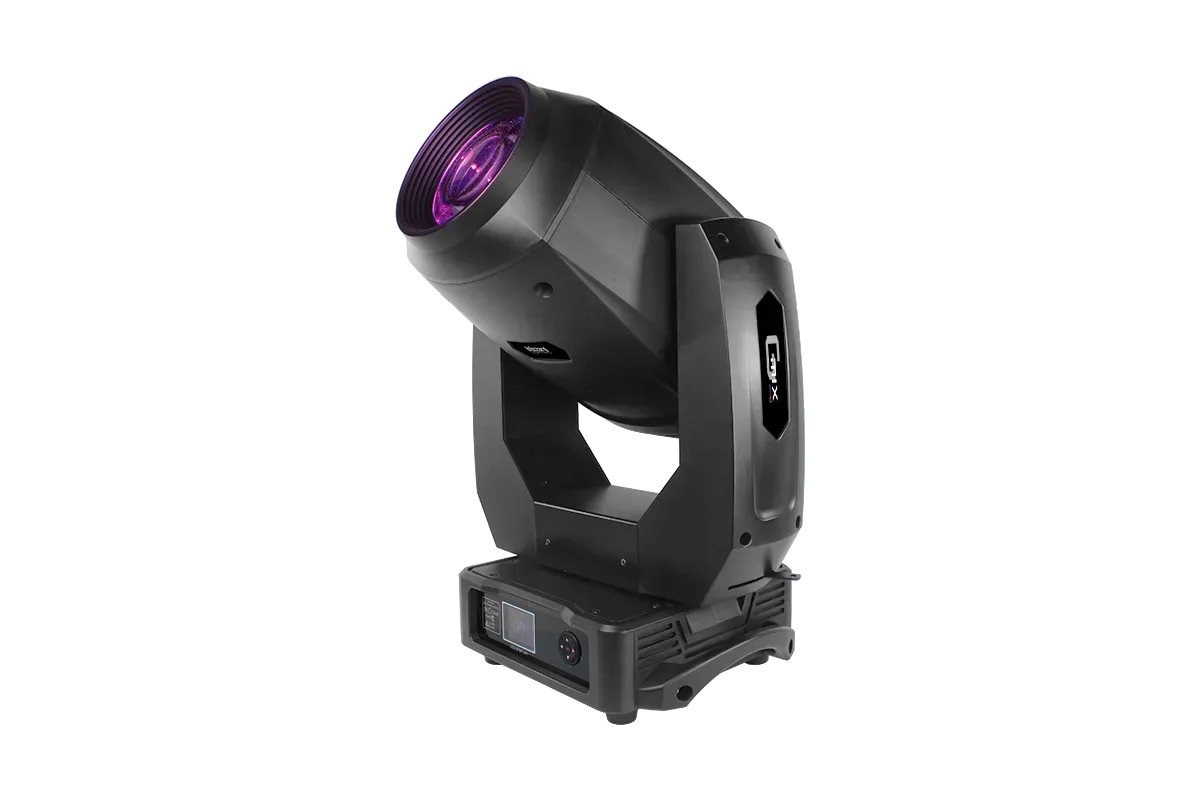

The Immortal Moving Head

Powered by a 200W OSRAM® white LED engine with an extra punchy beam, the G-Mix™ 200 is a feature packed spot moving head that combines an exceptionally sharp white beam with the rich color transitions of CMY color mixing. With 20,000+ hours of operation life, no relamping will be needed for the life of the fixture, making it an LD's immortal fixture dream.

CMY Color Mixing System

Smooth color transitions and vibrant fixed colors can be applied from its unique system of three color wheels, plus its rotating or static gobos can be added for projections and mid-air effects. Its smooth linear zoom can go from 42° at its widest, down to 5° to produce a piercing beam that can be trimmed with its ultra-fast stepless iris for really sharp output.

Specs

Overview

Luminous Intensity:

122,613 Lux @ 3M (narrow), 2,472 Lux @ 3M (wide)

48,988 Lux @ 5M (narrow), 849 Lux @ 5M (wide)

11,200 Lux @ 10M (narrow), 245 Lux @ 10M (wide)

Optical

200W OSRAM® white LED light engine

Beam angle: 5°- 42°

Color temperature: 6500K, CRI=80

Gobo size: 22.9mm outer, 20mm inner, 2.2mm max thickness

Movement

Pan: 540° (8-16 bit)

Tilt: 270° (8-16 bit)

Control

Protocol: USITT DMX-512

25/30-channel DMX modes

Standalone, master/slave, auto mode

3/5-pin DMX in/out

5-button LCD control panel

Power

100-240VAC, 50-60 Hertz

Power consumption: 334W, 2.7A, PF: .99

Warranty

2-year limited warranty

Dims & Weight

16.4" L x 11.4" W x 25.5" H

57.3 lbs

Downloads
