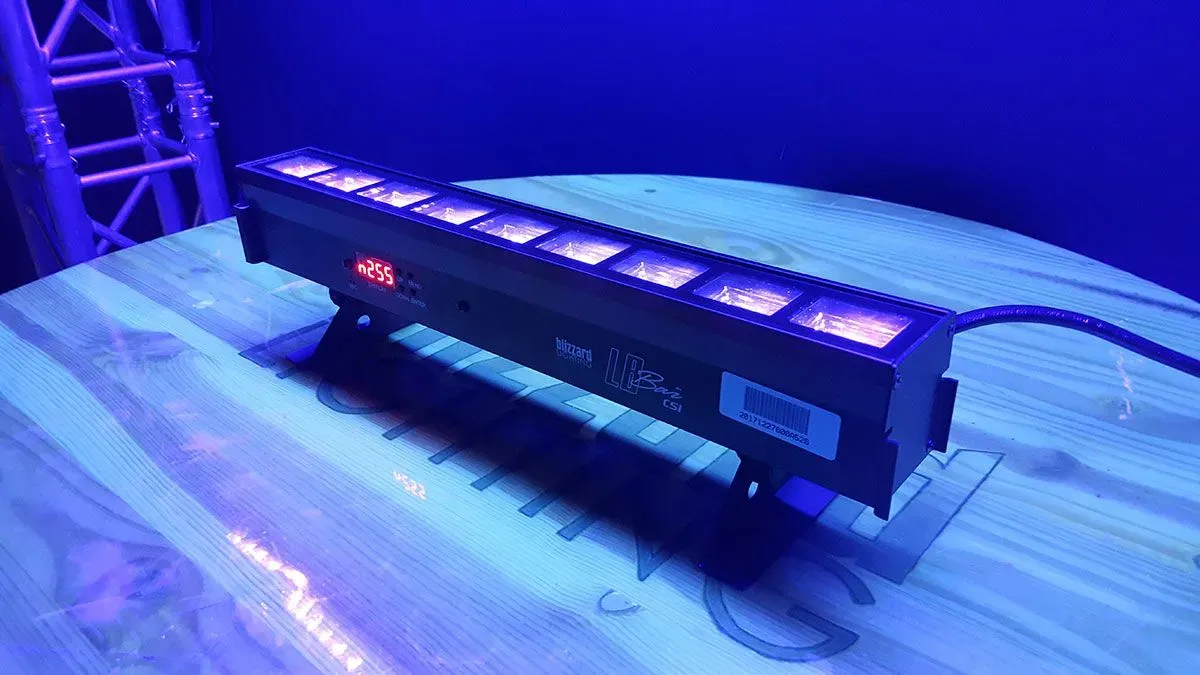

9x 3-Watt UV LED Linear Wash Fixture


LB Bar™ CSI Buy

9x 3-watt UV LED Bar

LB BAR™ CSI is a linear UV wash fixture with 9x 3W LEDs, and is perfect for clubs, DJs, or any indoor application. It has a 4-button LED control panel which allows control of 0-100% UV output level, 0-20Hz strobe, standard dimming plus 4 selectable 32-bit dimming curves, and it is totally silent due to its natural convection cooled design with no fans.

Fixture Alignment

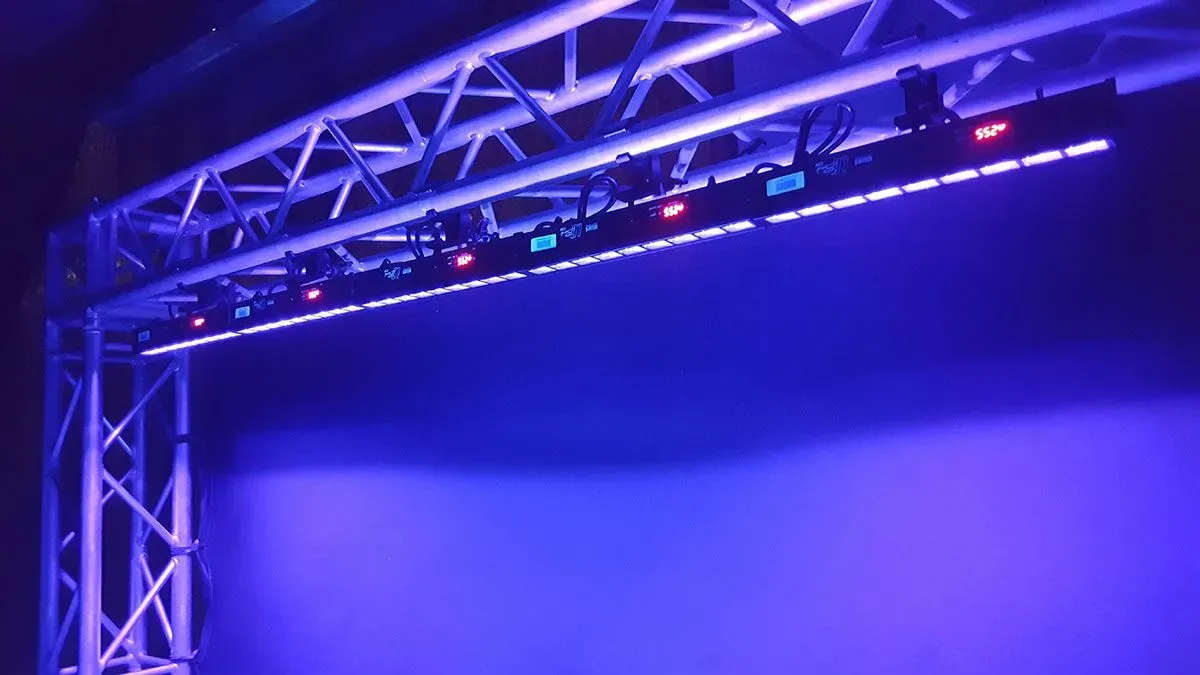

LB Bar™ CSI is equipped with locking end alignment clips to allow seamless multi-fixture light output with no color breaks. It is light weight, solidly built, and also offers dual mounting brackets with locking knobs, IEC power in/out, and 3-pin DMX input/output connections.

Main Features

* 9x high output 3-watt UV LEDs * Emits a wide 110° beam angle * User selectable 1 or 3 DMX channel modes * Variable electronic dimming * Strobe effects (1-20Hz) * Standalone, master/slave and DMX modes * 4-button LED control panel for easy programming * End-to-end fixture locking connections * Standard plus 4x 32-bit dimming curves * Natural convection cooled, totally silent operation * 3-pin male/female XLR input & output * IEC power In/Out connections

Product Specifications


9* 3W UV LEDs

Beam Angle: 110°

Wavelength: 393~396nm

Weight & Dimensions

Width: 16.4” (415 mm)
Depth: 2.3” (57 mm)
Height: 4.3” (10.9 mm)

Weight: 1.7 lbs. (.75 kg)


Protocol: USITT DMX-512

1/3-channel DMX modes

DMX512, M/S, standalone mode

3-pin XLR In/Out connections

4-button LED control panel

Power & Current

110-240VAC, 50-60 Hz

Power Consumption: 24W, .27A, PF: .65


2-year limited warranty, does not cover malfunction caused by damage to LEDs
