Lux / Meter

Red

Green

Blue

White

1M

1,700

1,615

1,660

1,466

2M

821

762

814

711

Back

Brilliant, Rich Mixed Colors

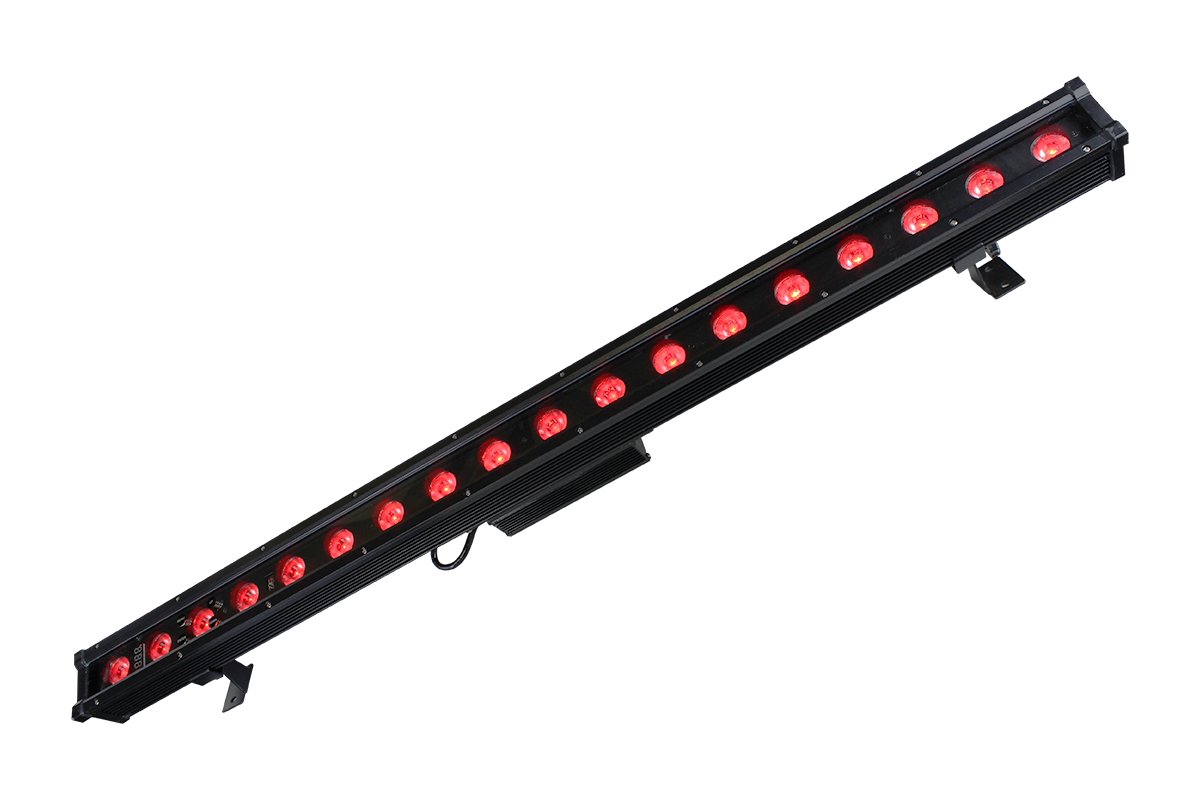

The Motif™ Vignette is RGB+Warm White, as opposed to a typical cool white, which increases CRI and emulates the warmth of traditional tungsten filament fixtures. You'll get that and a ton more with the Motif Vignette™, which comes fitted with 18x 10-watt high output Quad-Color RGBW LEDs and a 25 degree beam angle. Perfect for sound sensitive environments, these fixtures feature high efficient, natural convection cooling thanks to their attractive cast aluminum housing with heat sink design and no internal cooling fans.

Control With Ease

The Motif Vignette™ can be controlled via 3/4/5/7 or 10-channels of DMX, or directly with its easily accessible, easy-to-use LED control panel found right on the face of its water-tight tempered glass lens. It also comes with an IR remote control (IR-1) that is simple to use and offers the exact same functionality the LED control panel.

Main Features

* Exceptional color mixing from 18x 10-watt Quad-Color LEDs * Advanced heatsink design for zero fan noise * Multiple built-in color presets and auto programs * User adjustable program speed & fade times * 0-100% variable electronic dimmer * Variable electronic strobe * Durable cast aluminum housing and mounting brackets * Tempered glass lens and watertight internal gaskets * Easy-to-use 4-button LED control panel menu * Built like a rock (It hits the gym regularly) * USITT DMX-512 (3/4/5/7 and 10-channels) * 3-pin Input/Output * Easy to use IR remote control (included)

Product Specifications

Optical

Light source: 18x 10-watt LEDs, 100,000 hours

Beam Angle: 25 degrees

Weight & Dimensions

Width: 39.8 inches (1001 mm)

Depth: 2.7 inches (68.8 mm)

Height: 4 inches (100.1 mm)

Weight: 9 lbs (4.1 kg)

Control

USITT DMX-512

DMX channels: 3/4/5/7 and 10-channels

3-pin XLR Input/Output

Operating Modes: DMX512, Master/Slave, Auto, Standalone

IR-1 Remote (included)

Power & Current

Operating voltage: 100-264VAC, 50-60 Hertz

Power Consumption: 83W, .98A, PF: .68

Warranty

2-year limited warranty, does not cover malfunction caused by damage to LEDs

Downloads

  • Cutsheet

    Download

    motif-vignette_cutsheet.pdf

  • Manual
    Rev D

    Download

    motif-vignette_manual_rev_d.pdf
