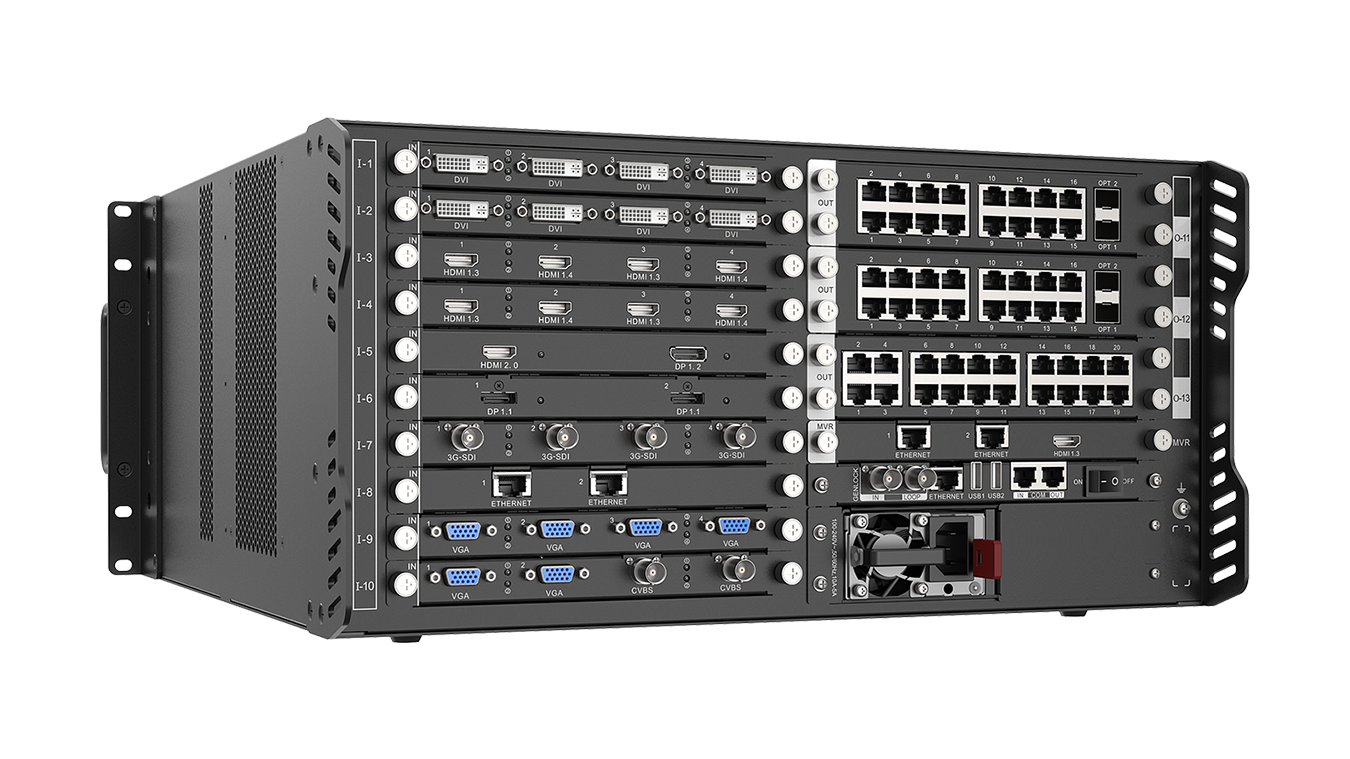

NovaStar™ H5 5 Rack Space Processor / Splicer

NovaStar™ H5


SKU: 124291

  • 5 racks space unit with control card and PS
  • Multi-screen management for centralized control
  • Modular plug-in component configuration
  • Minimum plug-in module components needed = 1 input + 1 output
  • Diverse display possibilities for richer visual experience
  • Easy, friendly, and convenient webpage control
  • Status monitoring and optional backup power supply
Fast, Free Shipping on Orders $99+

Add input/output cards to your order:

- +
Add to Cart
Where Else to Buy

Suggested Products

3.9mm Outdoor, SMD 1921 LEDs

Learn More

9 Rack Space Processor / Splicer

Learn More

Our Flagship Lighting Console

Learn More

2.3M pixels (CVBS, VGA, DVI, HDMI, DP, SDI)

Learn More

Video Splicing Processor

H Series is NovaStar's flagship all-in-one video splicing processor, designed specifically for fine-pitch LED applications. It is the first All-in-One splicer and controller in the industry, which greatly simplifies system integration. With the leading image processing technology in the industry, H series can give you an astonishing visual effect, truly making it the perfect solution for fine-pitch LED applications.

Flexible Configuration

H5 offers a modular plug-in design, with a variety of connector modules available. It comes with the control card and power supply. A minimum of 1 additional input card, and 1 output card is required for full functionality.

Available Cards Description
H_4xDVI 4x DVI Input Card
H_4xHDMI 4x HDMI Input Card
H_1xHDMI2.0 1x HDMI2.0 Input Card
H_1xHDMI2.0+1xDP1.2 1x HDMI2.0 + 1x DP1.2 Input Card
H_2xRJ45 IP 2x RJ45 IP Camera Input Card
H_4x3G SDI 4x 3G-SDI Input Card
H_12G SDI Input Card 1x 12G SDI Input Card
H_2xCVBS+2xVGA 2x CVBS + 2x VGA Input Card
H_4xVGA 4x VGA Input Card
H_16xRJ45+2xFiber 16x Ethernet Output Port and 2x Optical Ports
H_2xRJ45+1xHDMI1.3 2x Ethernet and 1x HDMI1.3 for Monitoring
H_20xRJ45 20x Ethernet Port Output Card
H_800W H Series Power Module (optional backup)

All-in-One Integration

The industry's first ever, all-in-one splicing processors are here.

Watch Now ›

Product Summary

True 4K Video Processing

H Series utilizes a full hardware slot structure with high-performance FPGA processing and ultra-speed crosspoint matrix switching technology, providing powerful signal processing capabilities.



Rack space: 5U

Minimum cards = 1 input, 1 output

Input cards: 10 max.

Input channels: 40 max.

Output cards: 3

Load capacity (4K card): 39m pixels

Max. layers: 48

In the Box

Power cord

RJ45 Ethernet cable

Grounding cable

HDMI cable

Quick start guide

Certificate of approval

Safety manual


100-VAC, 50/60Hz

Power consumption: 400W


Backup PS: optional


3-year warranty

Dims & Weight

19" L x 21" W x 9" H

55.2 lbs
