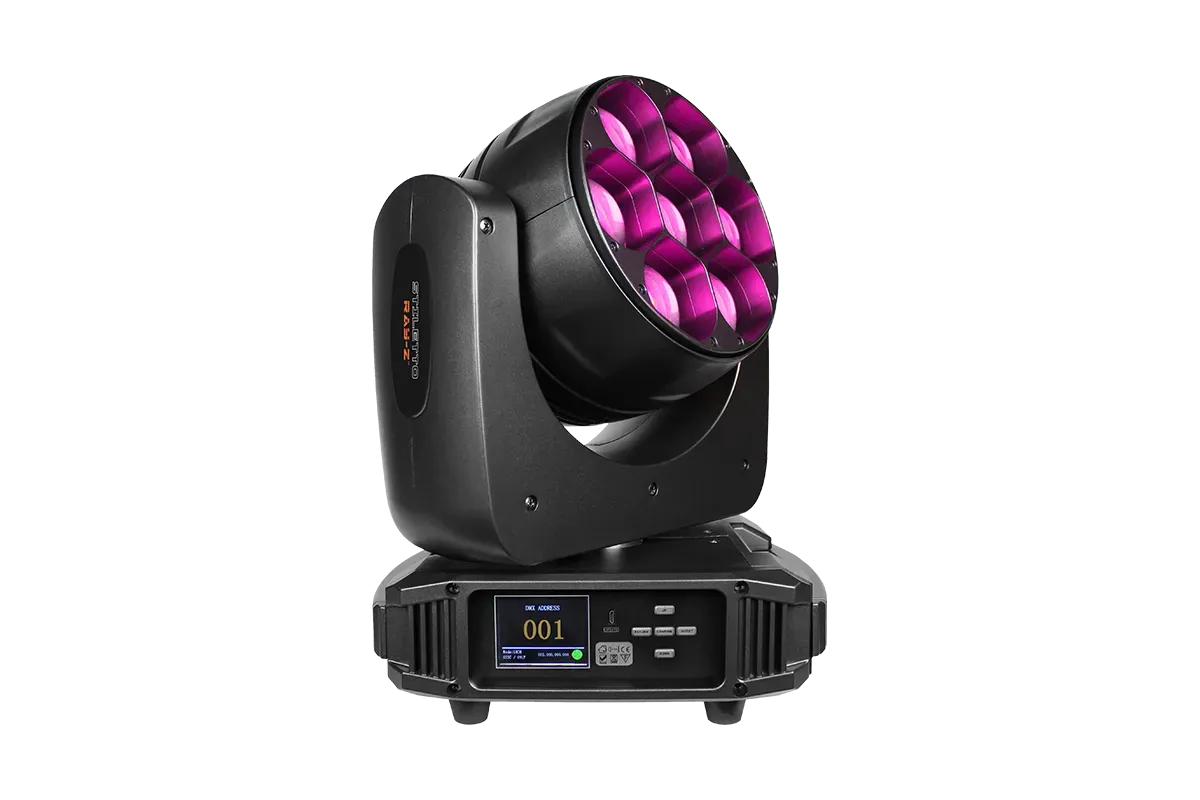

Stiletto™ Ray-Z

7x 40W OSRAM™ Ostar 4-in-1 RGBW Moving Head

$1,549.99

Stiletto™ Ray-Z Buy

RGBW LEDs + Zoom

Stiletto™ Ray-Z is a feature-packed, professional moving head fixture fitted with 7x 40W OSRAM™ Ostar RGBW 4-in-1 LEDs with full pixel mapping capabilities via DMX, and it also offers ultra-fast and precise motorized zoom (4.5°- 36°) for narrow to wide moving beams.

Professional Features

It's 3-phase motors create smooth, quick movements (540° pan: 2.2s, 200° tilt: 1.2s) with automatic position correction, and it offers many pro features such as RGBW color mixing + pixel effects, auto and sound active programs, a variety of strobe effects, and more.

Main Features

* 7x 40W Osram™ Ostar RGBW 4-in-1 LEDs, 100,000 hours

* Fast and precise zoomable beam angle (4.5°- 36°)

* 8-16 bit smooth pan and tilt resolution

* Pan: 540°/ Tilt: 200° with 3-phase motors

* Automatic pan/tilt position correction

* Full pixel mapping capabilities via DMX

* Speed controllable shape macros + background color presets

* Efficient low noise fan cooling system

* Dual omega brackets with 1/4-turn fasteners

* 5-pin DMX + RJ45 input/output connections

* PowerCON® compatible power in/out connections

Product Specifications

Overview

<br>43,675 Lux @ 2.5M (narrow), 2,023 Lux @ 2.5M (wide)<br>

12,120 Lux @ 5M (narrow), 632 Lux @ 5M (wide)<br>

5,324 Lux @ 7.5M (narrow), 277 Lux @ 7.5M (wide)<br>

3,229 Lux @ 10M (narrow), 180 Lux @ 10M (wide)

Optical


7* 40W Osram Ostar RGBW 4-in-1 LEDs, 100,000 hours

RGBW color mixing

Fast and precise zoomable beam angle (4.5°- 36°)

Flicker-free LEDs

Weight & Dimensions


12.2" x 8.6" x 14.6" (31 x 22.5 x 37 cm)

19.9 Lbs. (9kg)

Control


Protocol: USITT DMX-512, Art-Net, Kling Net, sACN

DMX channels: 15/18/38-channel modes

Easy-to-use 5-button control panel with LCD display

Operating modes: DMX512, master/slave, auto, sound active

Power & Current


90-250VAC, 50-60 Hz

Power Consumption: 324W, 2.92A, PF: .99

PowerCON™ compatible AC power In/Out connectors

Warranty


2-year limited warranty

Downloads

  • Cutsheet

    Download

    stiletto-ray-z_cutsheet.pdf

  • Manual
    Rev A

    Download

    stiletto-ray-z_manual_rev_a.pdf
