This product has been discontinued.

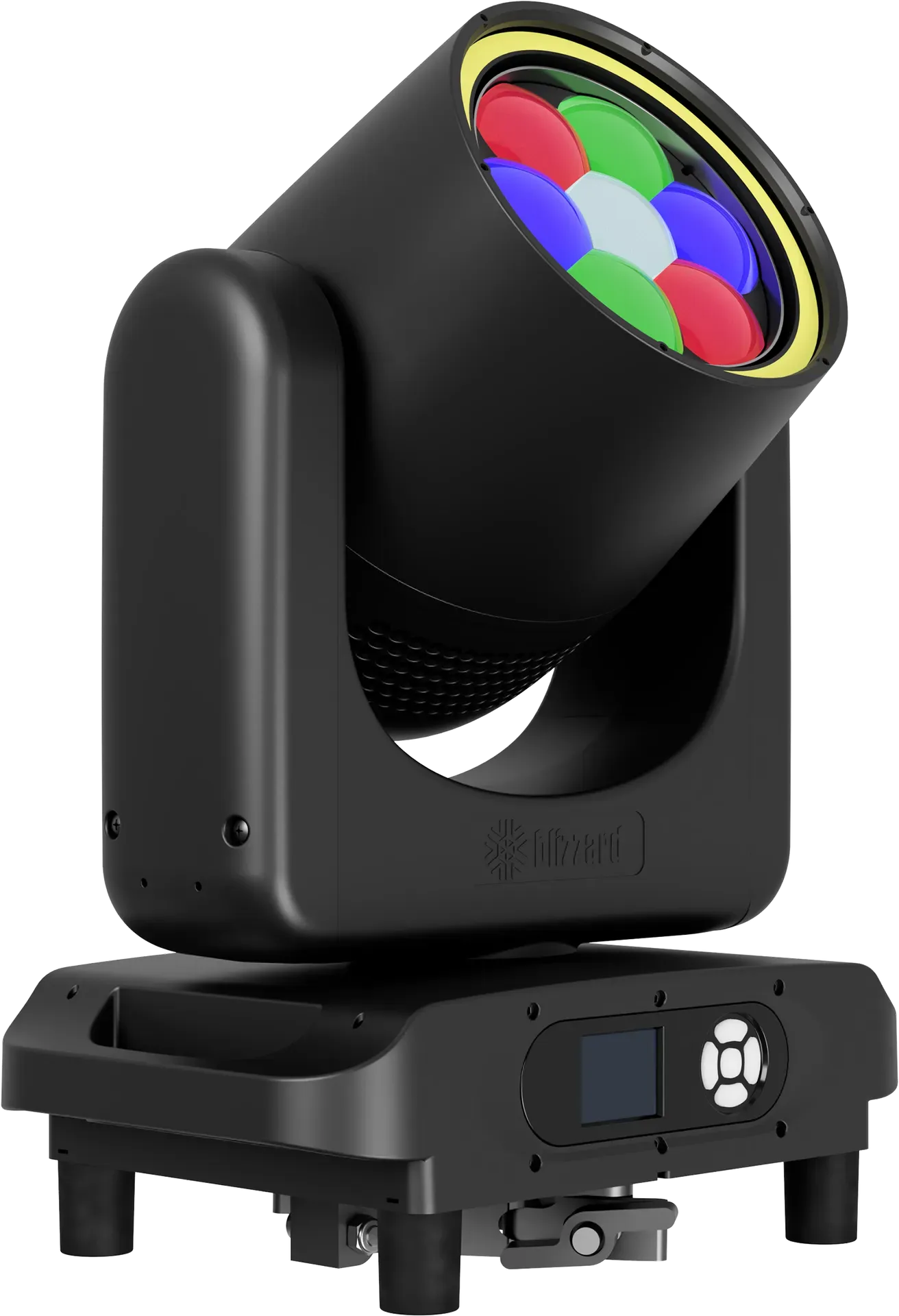

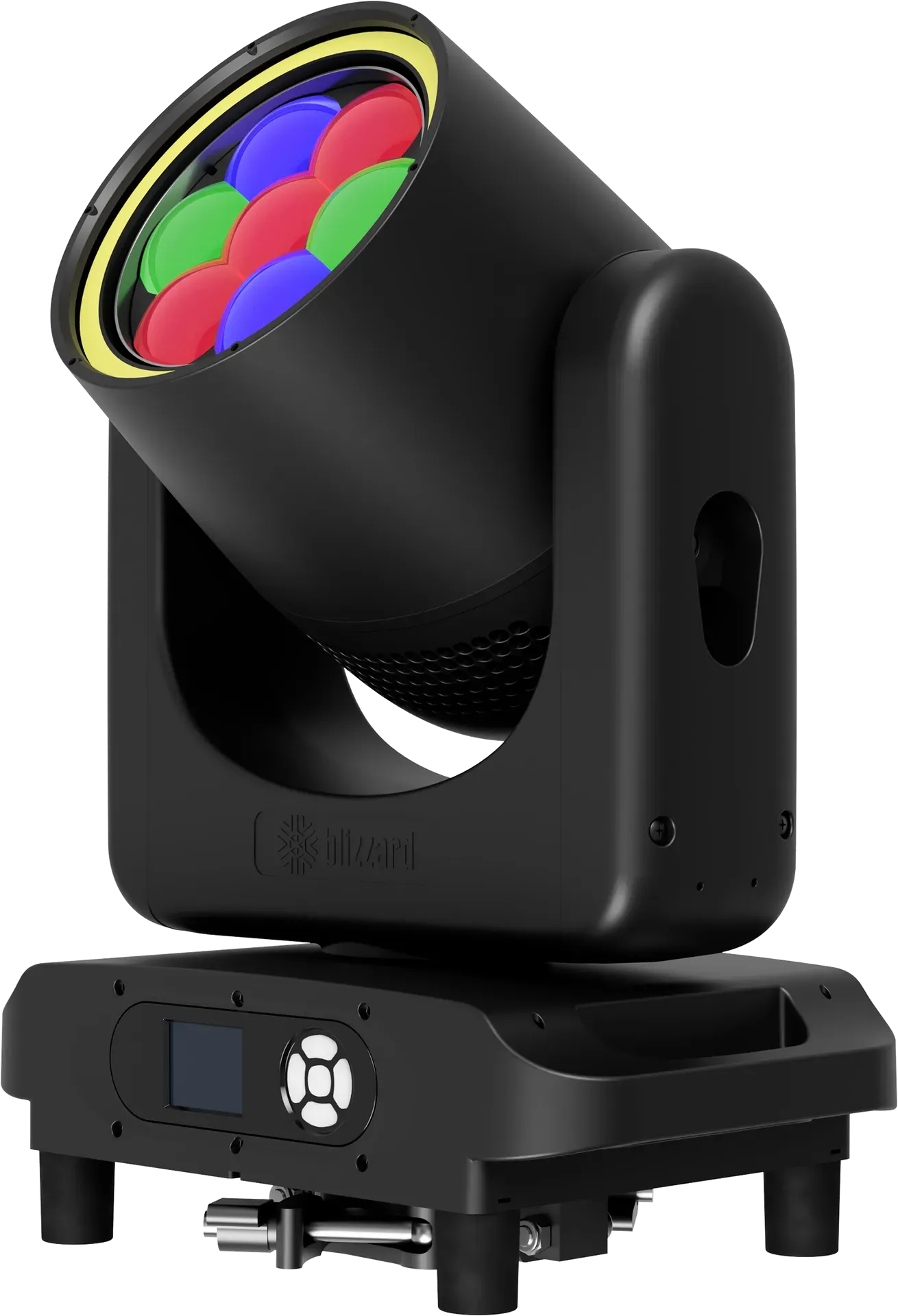

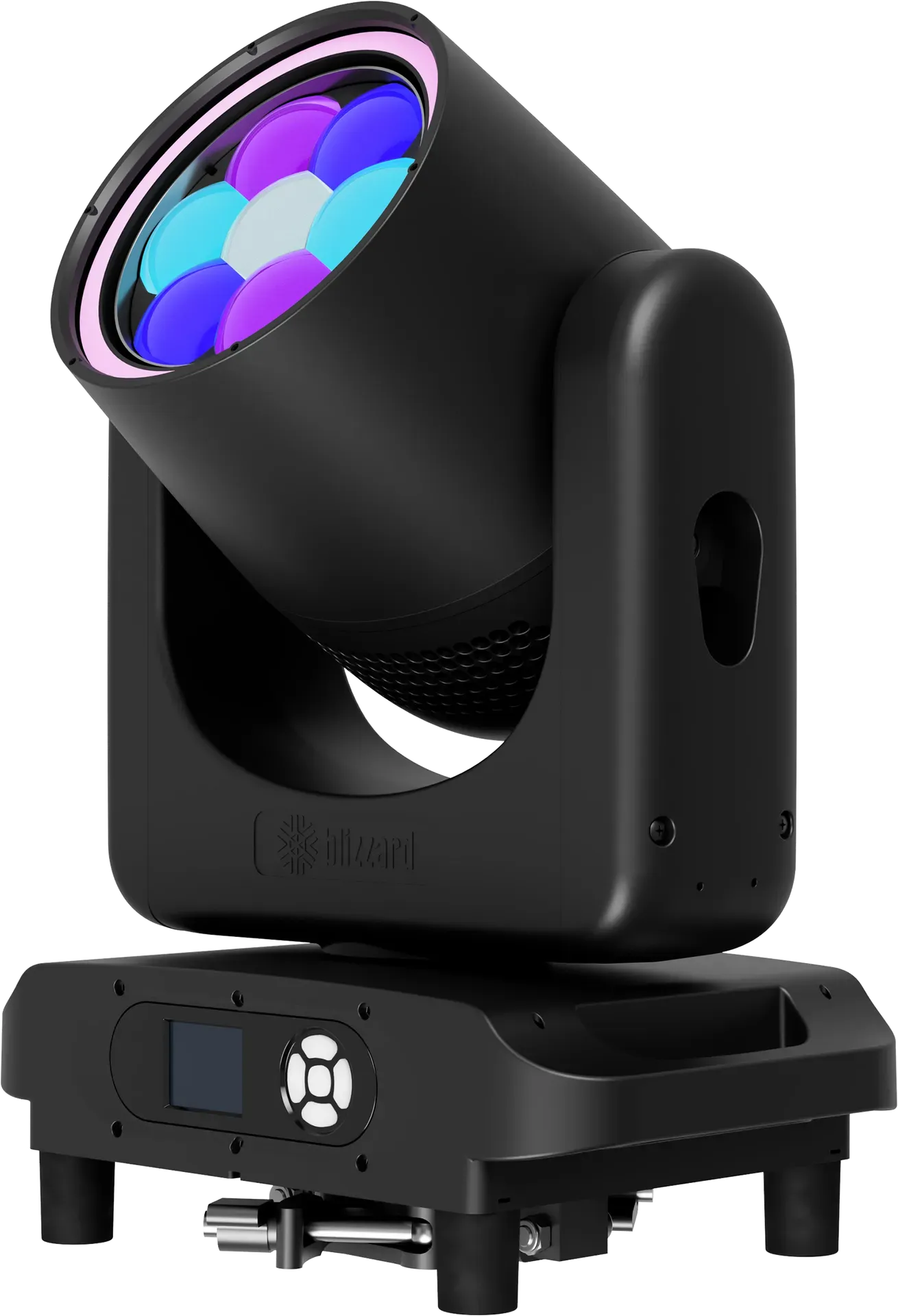

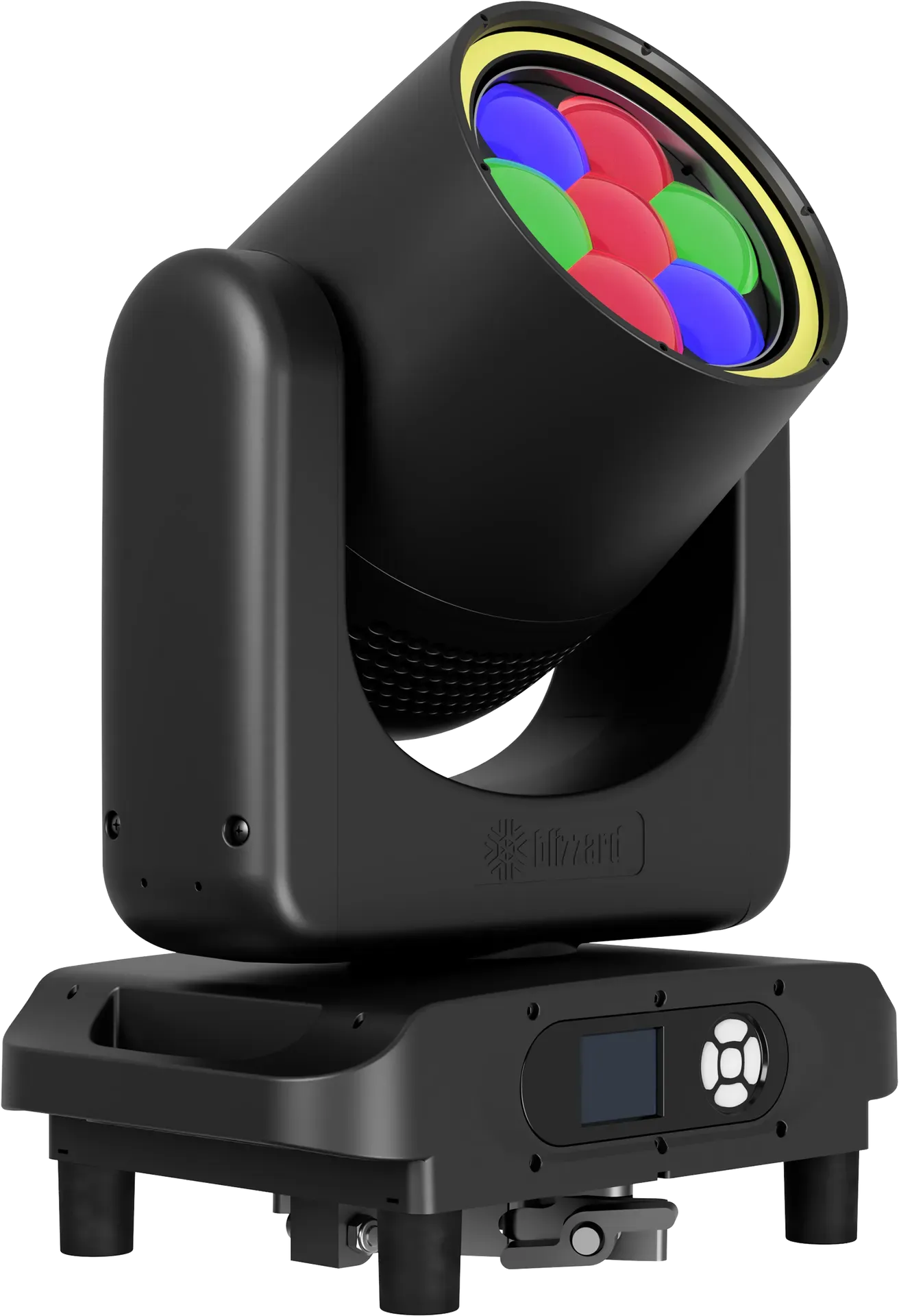

Typhon™ IP Kaleido

SKU:

124694

1999.00

  • 7x 60W RGBW LEDs rated for 20,000 hours
  • Beam angle: 4 to 32 degrees, spot angle: 5 to 50 degrees
  • Output: 23,500 lux at 5 m, 7100 lm luminous flux
  • Color temperature: 2500K to 10000K
  • RGBW color mixing with rainbow effects
  • Front aperture color flow effects
  • Independent LED pixel control for single-point effects
  • Static and dynamic effect macros
  • Motorized linear zoom
  • Electronic dimming with 4 curves, 4 speeds, and 4 frequencies
  • Strobe: 1 to 30 Hz
  • Pan: 540 degrees, tilt: 250 degrees, 8 or 16 bit resolution
  • DMX channel modes: 31, 55, 21, 35, 28
  • Protocols: DMX512, RDM, Art-Net, sACN
  • 3-pin and 5-pin XLR In/Out
  • Intelligent temperature control for extended LED life
  • IP66 rating
  • 2-year limited warranty
  • 7x 60W RGBW LEDs rated for 20,000 hours
  • Beam angle: 4 to 32 degrees, spot angle: 5 to 50 degrees
  • Output: 23,500 lux at 5 m, 7100 lm luminous flux
  • Color temperature: 2500K to 10000K
  • RGBW color mixing with rainbow effects
  • Front aperture color flow effects
  • Independent LED pixel control for single-point effects
  • Static and dynamic effect macros
  • Motorized linear zoom
  • Electronic dimming with 4 curves, 4 speeds, and 4 frequencies
  • Strobe: 1 to 30 Hz
  • Pan: 540 degrees, tilt: 250 degrees, 8 or 16 bit resolution
  • DMX channel modes: 31, 55, 21, 35, 28
  • Protocols: DMX512, RDM, Art-Net, sACN
  • 3-pin and 5-pin XLR In/Out
  • Intelligent temperature control for extended LED life
  • IP66 rating
  • 2-year limited warranty

Options

No items found.
Add to Cart
›
Find a Reseller ›

Backed by our 2-year extendable warranty

Backed by our 3-year extendable warranty

Backed by our 7-year warranty

Backed by our 2-year warranty

Backed by our 6 month warranty

Backed by our 90 day warranty

Backed by our 1-year warranty

Backed by our limited lifetime warranty

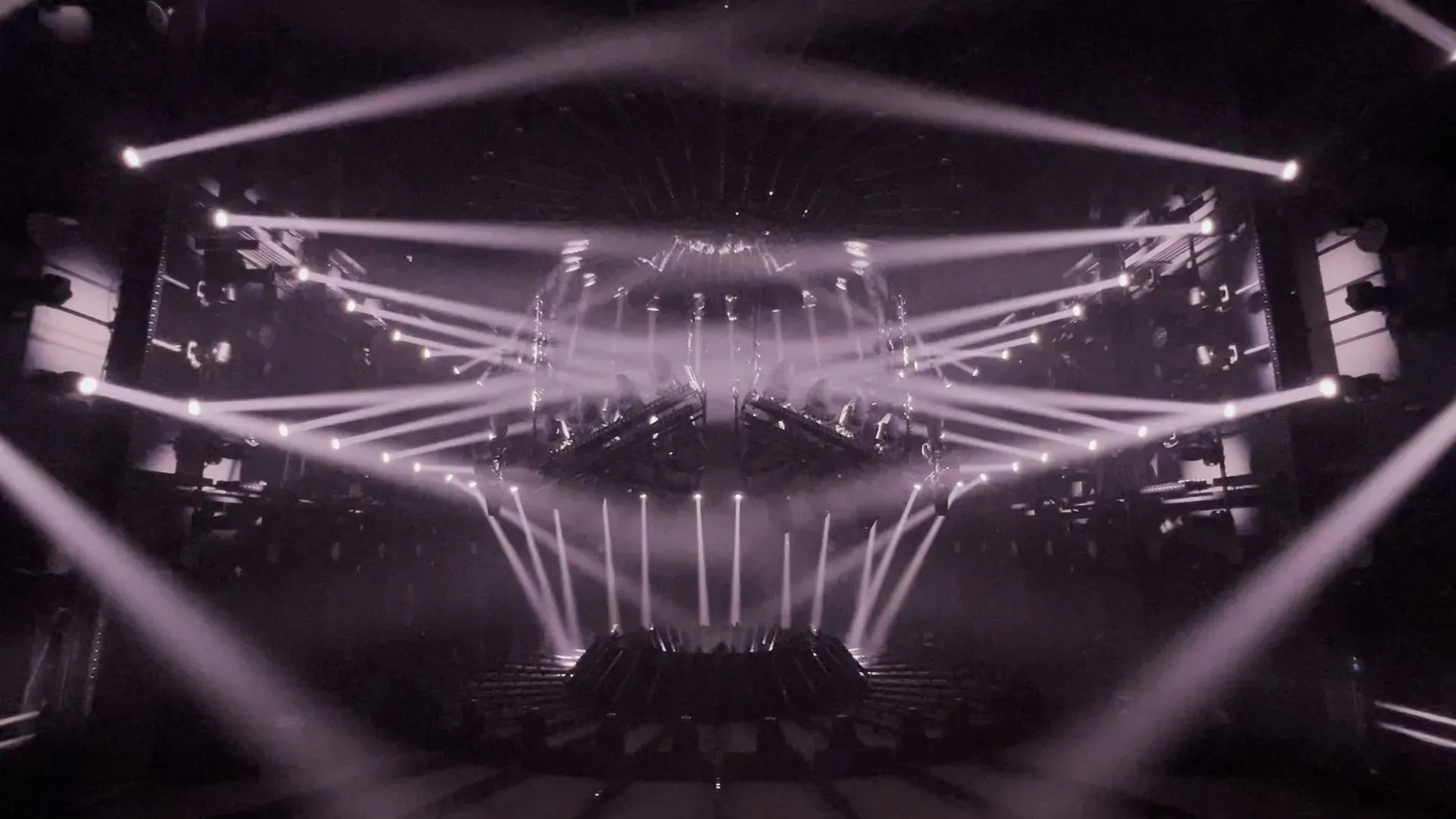

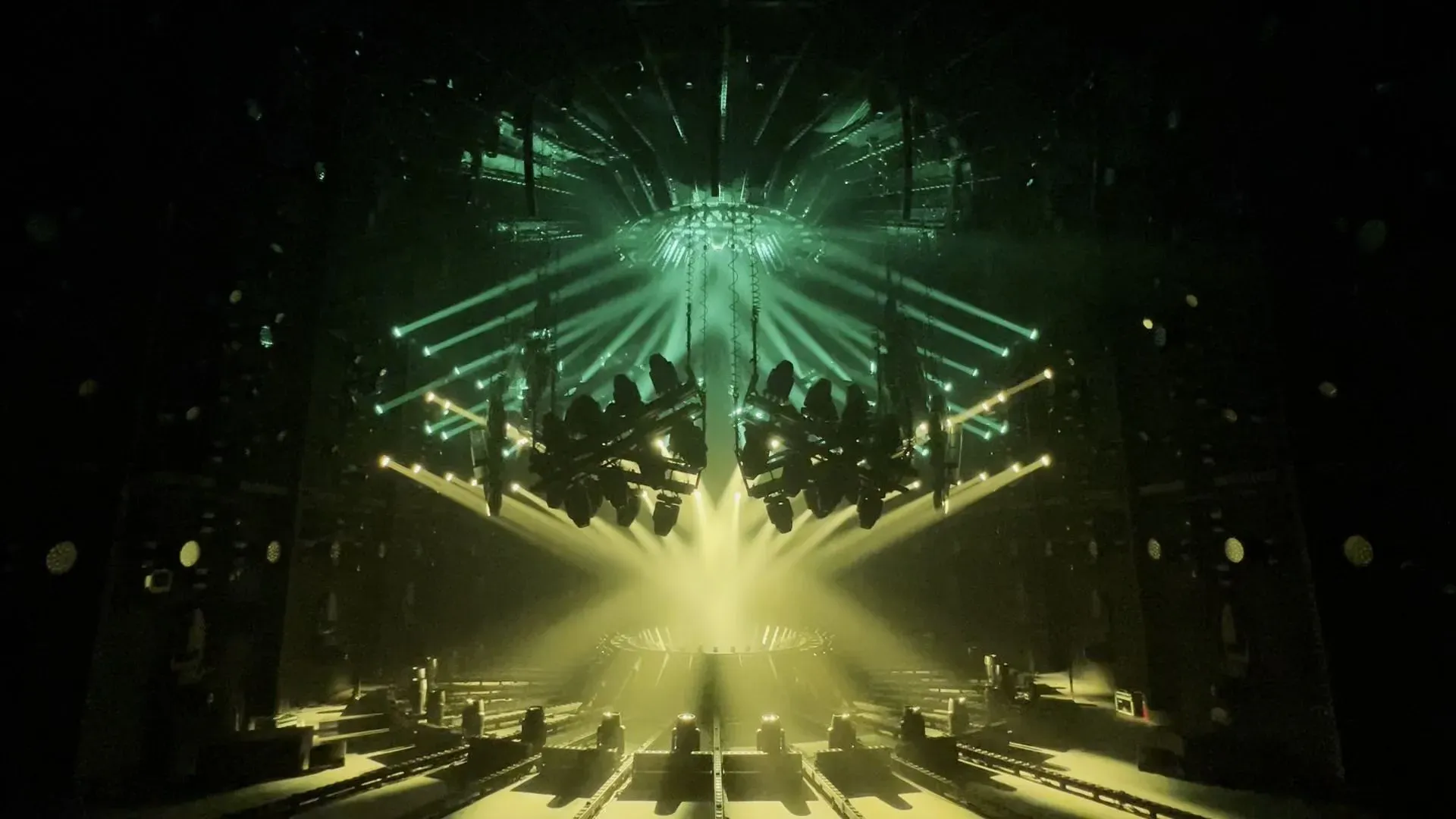

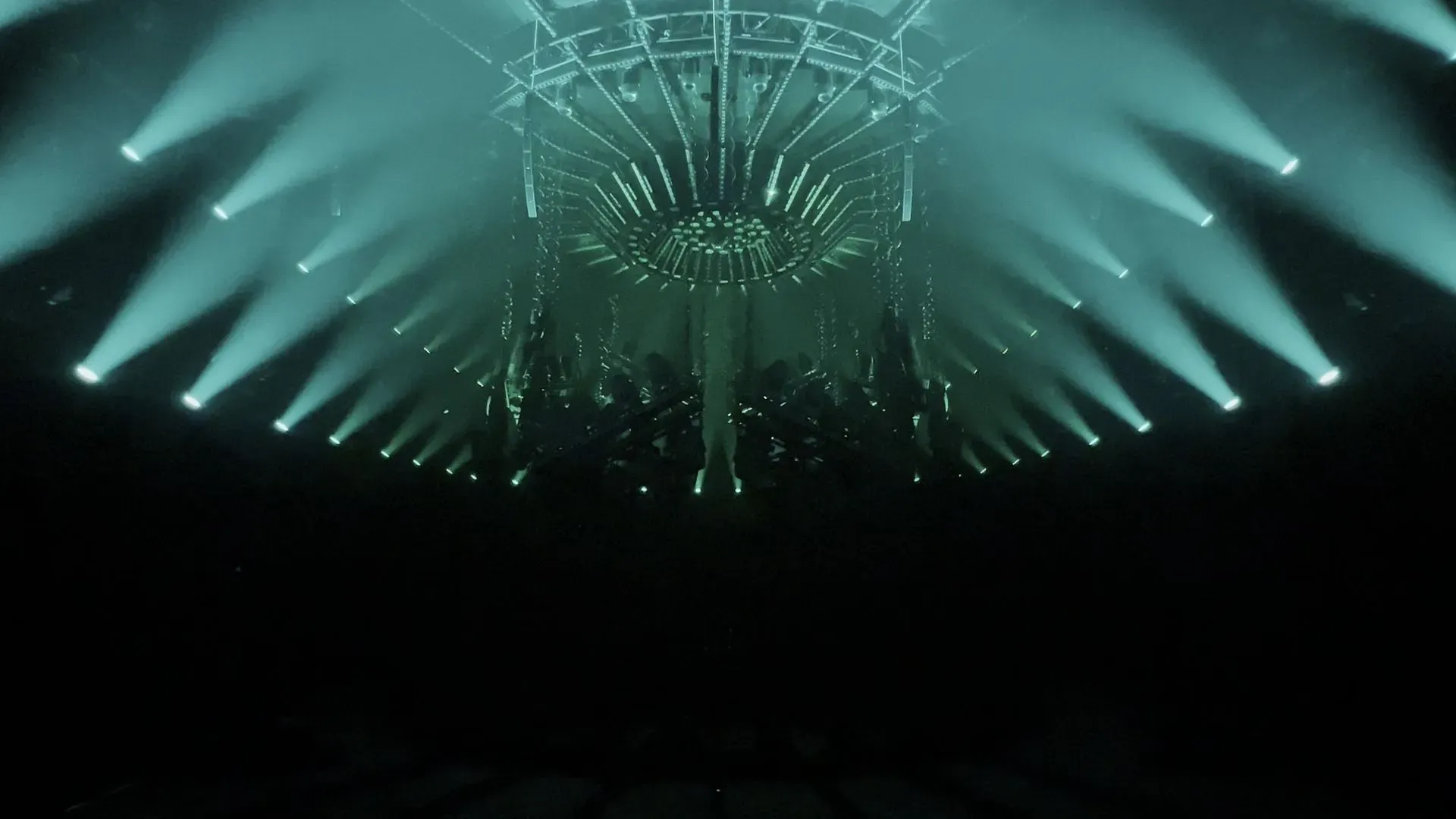

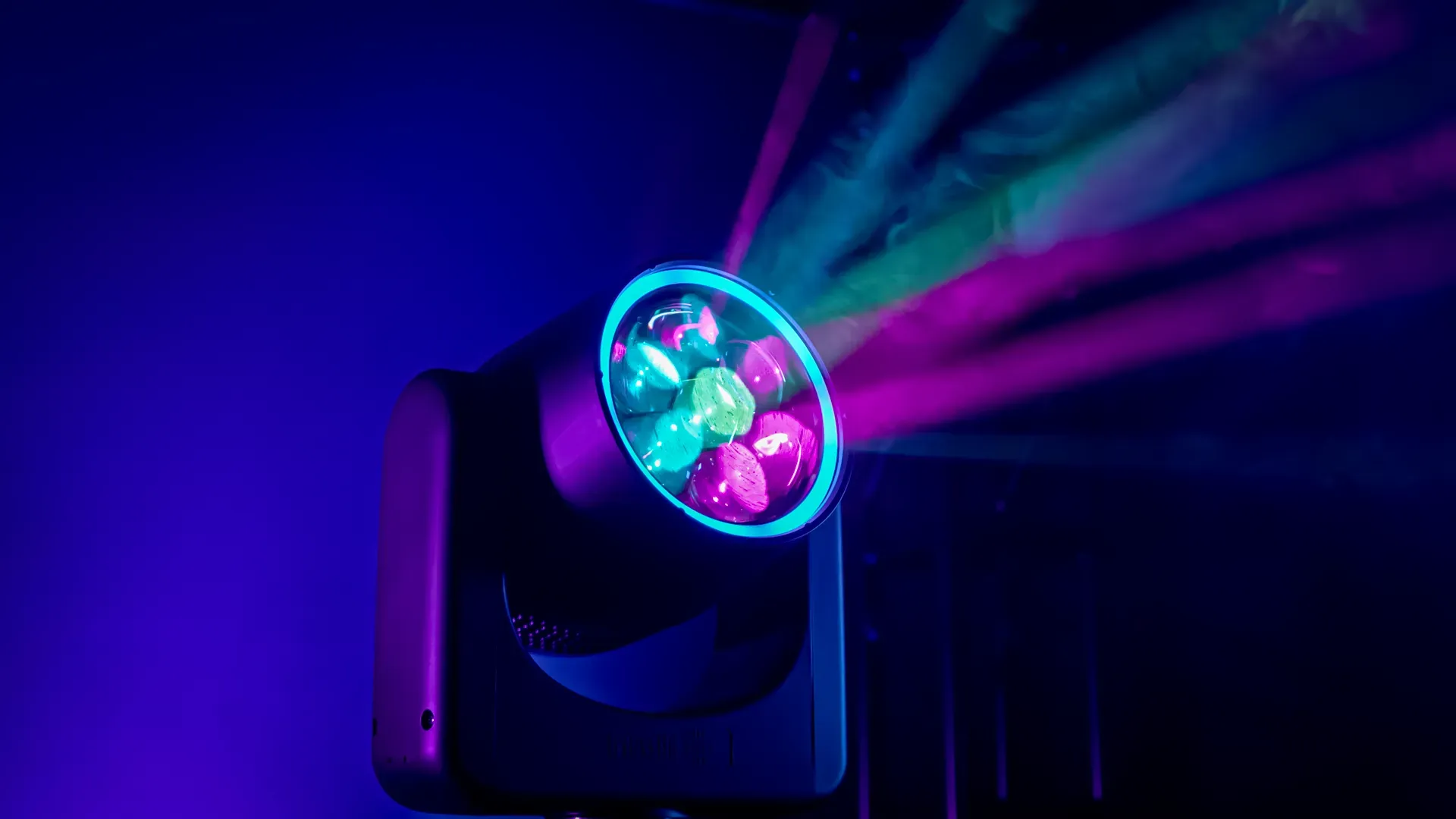

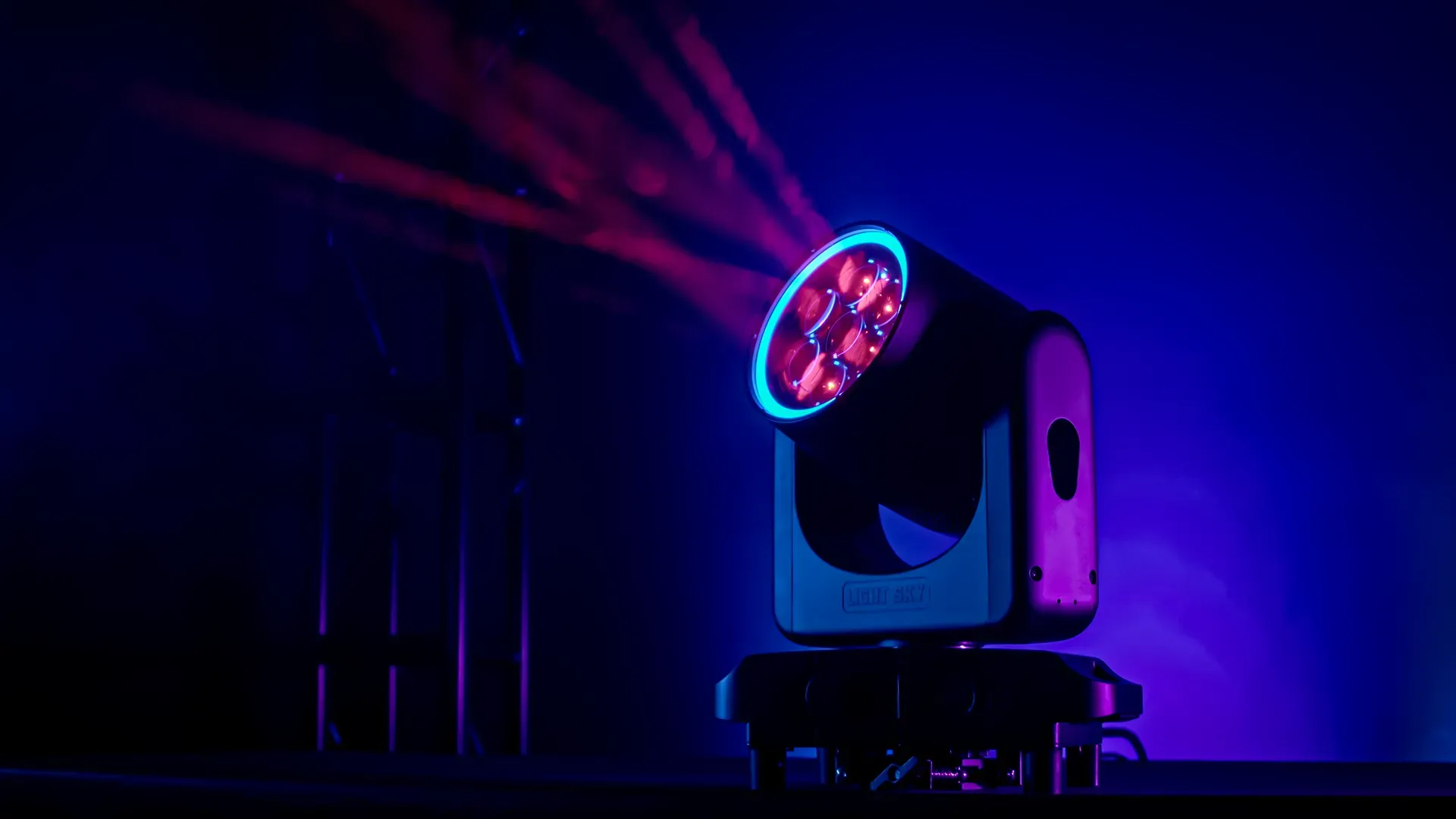

Turn Color Into Motion

The Kaleido brings seven RGBW engines to life with flowing aperture effects and pixel-level control. Build bold looks, sweeping scenes, or tight accents with smooth zoom and coordinated color behavior.

Pixel Independence

With independent pixel control, dynamic macros, ring-based effects, and a wide zoom range, Kaleido turns your cues into layered visuals. Mix deep colors, shift CCT, or create moving textures with precision.

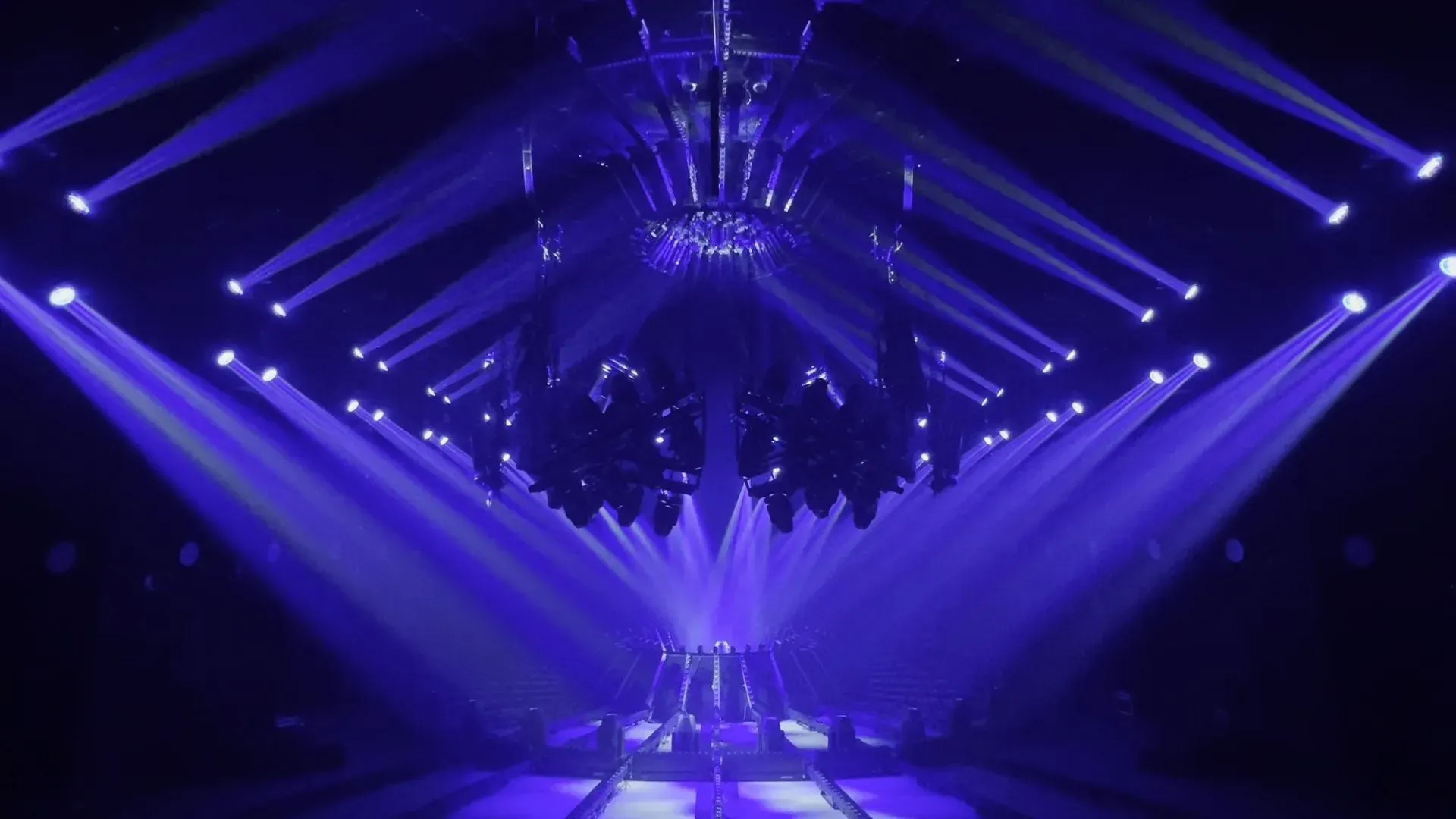

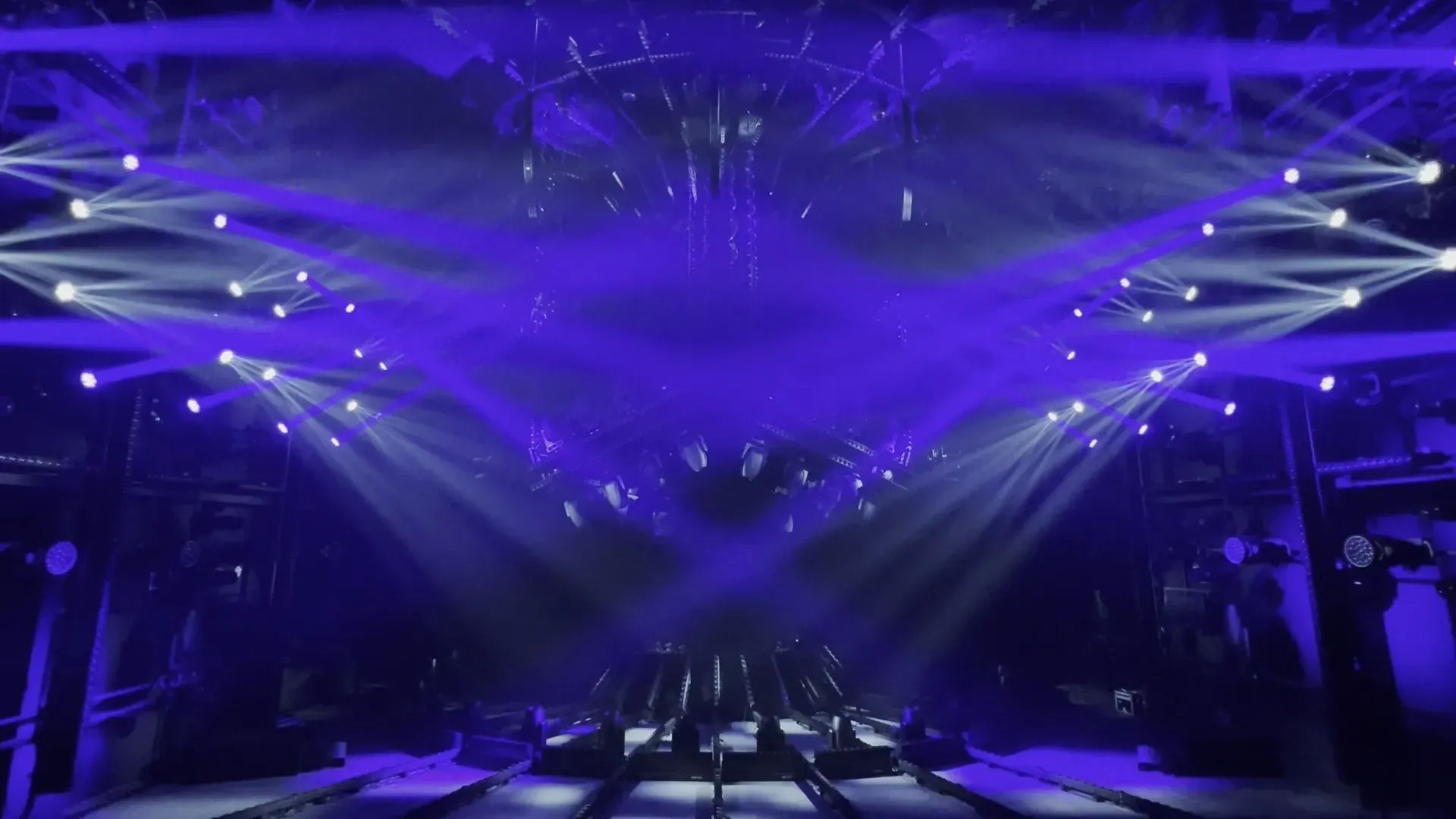

Built to Endure

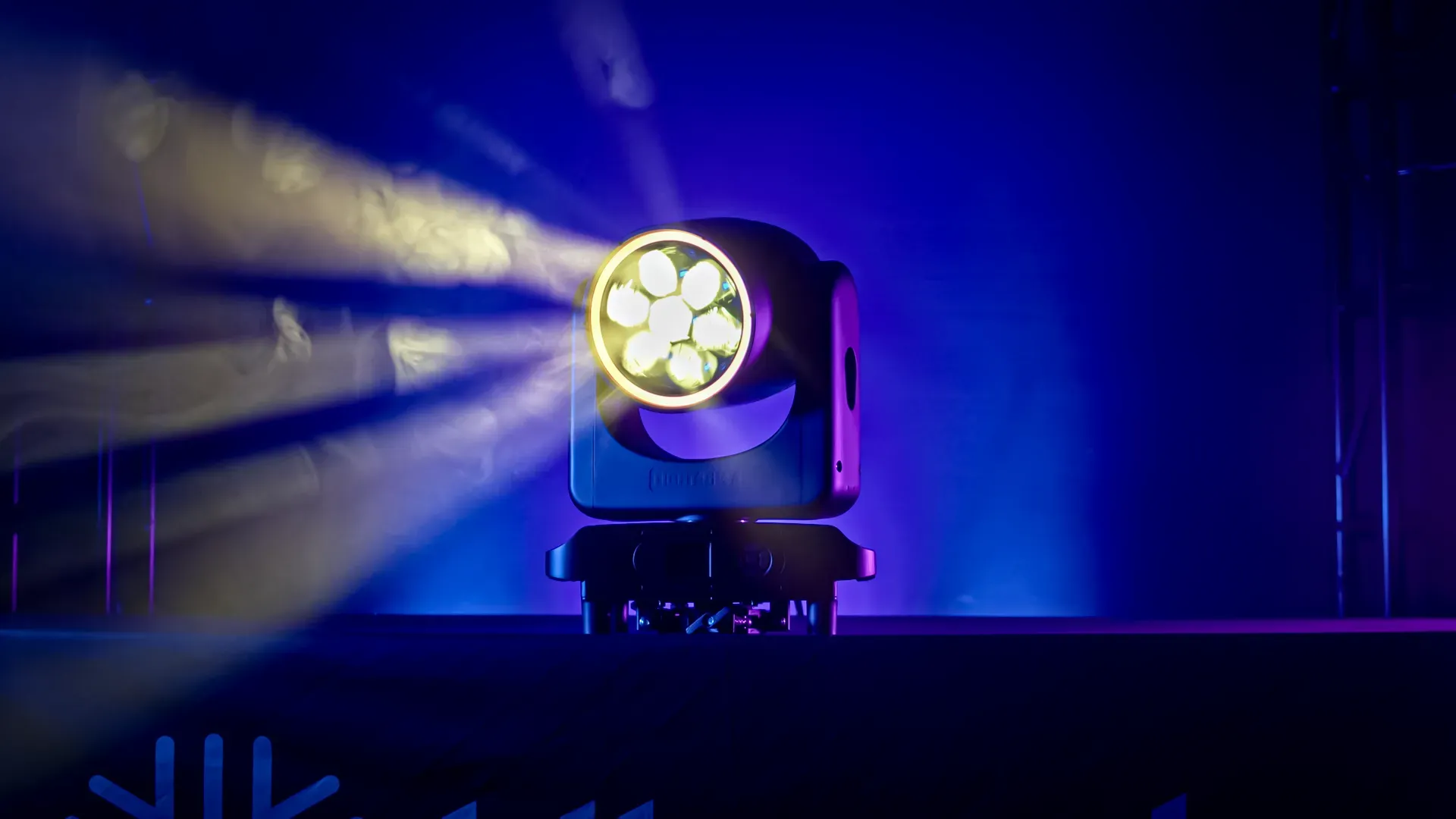

The Kaleido carries an IP66 rating and intelligent temperature control, making it ready for touring rigs, rooftop installs, and outdoor stages. It stays reliable while delivering consistent color and movement.

Turn Color Into Motion

The Kaleido brings seven RGBW engines to life with flowing aperture effects and pixel-level control. Build bold looks, sweeping scenes, or tight accents with smooth zoom and coordinated color behavior.

Pixel Independence

With independent pixel control, dynamic macros, ring-based effects, and a wide zoom range, Kaleido turns your cues into layered visuals. Mix deep colors, shift CCT, or create moving textures with precision.

This product is backed by our

2 Year - Extendable

warranty.

Learn more here.

Tech Specs

The Rundown
  • 7x 60W RGBW LEDs rated for 20,000 hours
  • Beam angle: 4 to 32 degrees, spot angle: 5 to 50 degrees
  • Output: 23,500 lux at 5 m, 7100 lm luminous flux
  • Color temperature: 2500K to 10000K
  • RGBW color mixing with rainbow effects

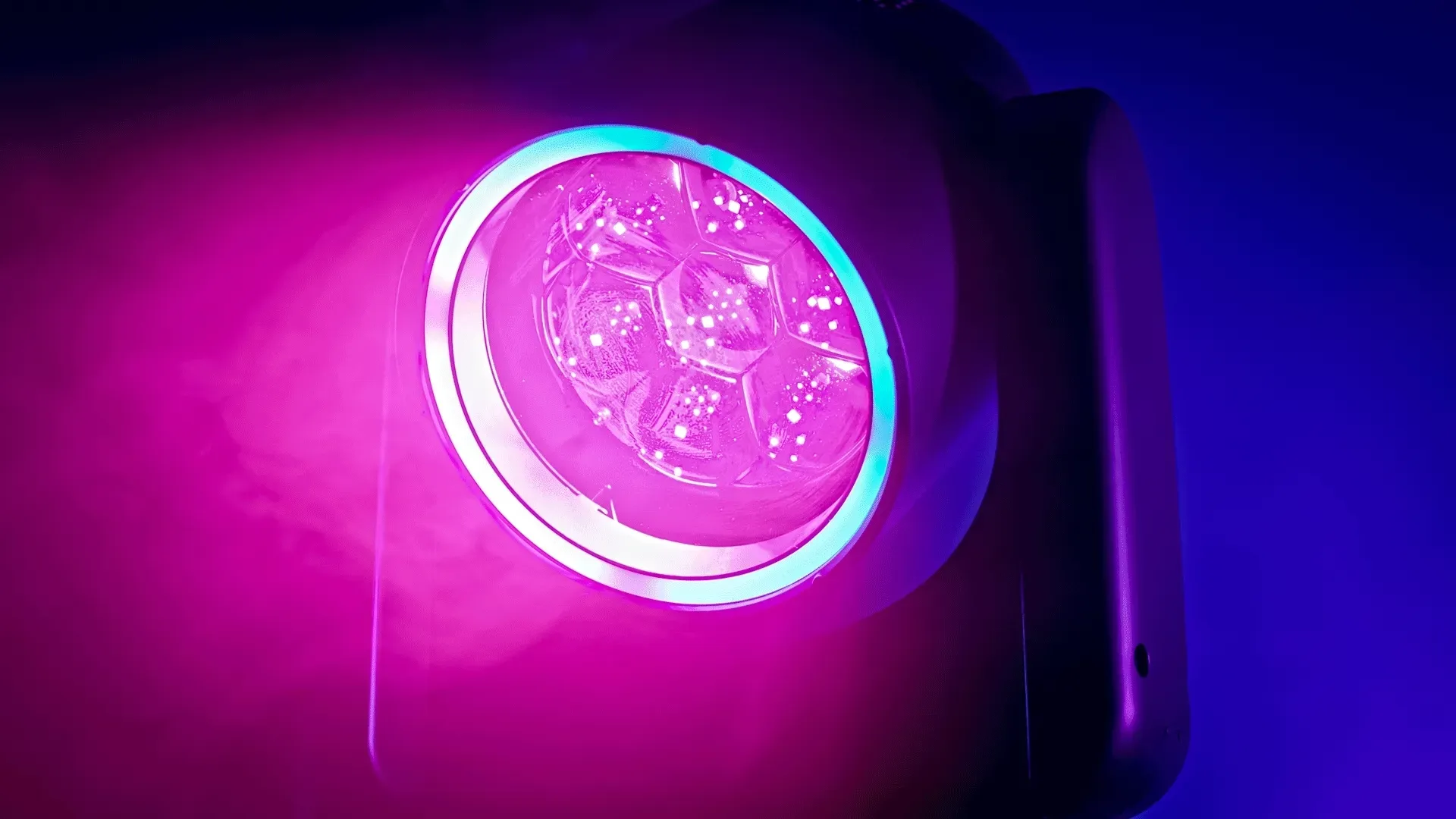

  • Front aperture color flow effects
  • Independent LED pixel control for single-point effects
  • Static and dynamic effect macros
  • Motorized linear zoom
  • Electronic dimming with 4 curves, 4 speeds, and 4 frequencies
  • Strobe: 1 to 30 Hz
  • Pan: 540 degrees, tilt: 250 degrees, 8 or 16 bit resolution
  • DMX channel modes: 31, 55, 21, 35, 28
  • Protocols: DMX512, RDM, Art-Net, sACN
  • 3-pin and 5-pin XLR In/Out
  • Intelligent temperature control for extended LED life
  • IP66 rating
  • 2-year limited warranty
Summary

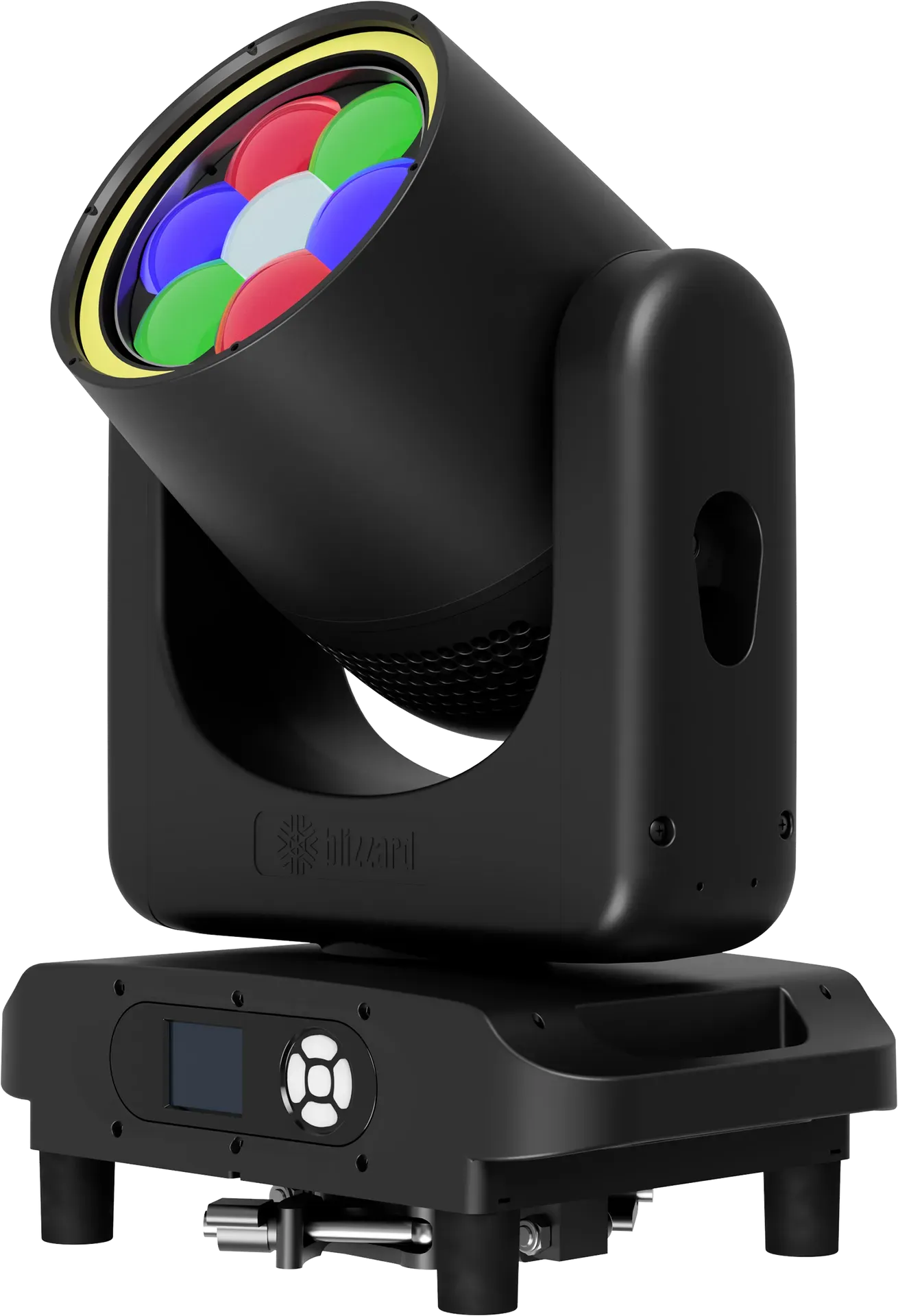

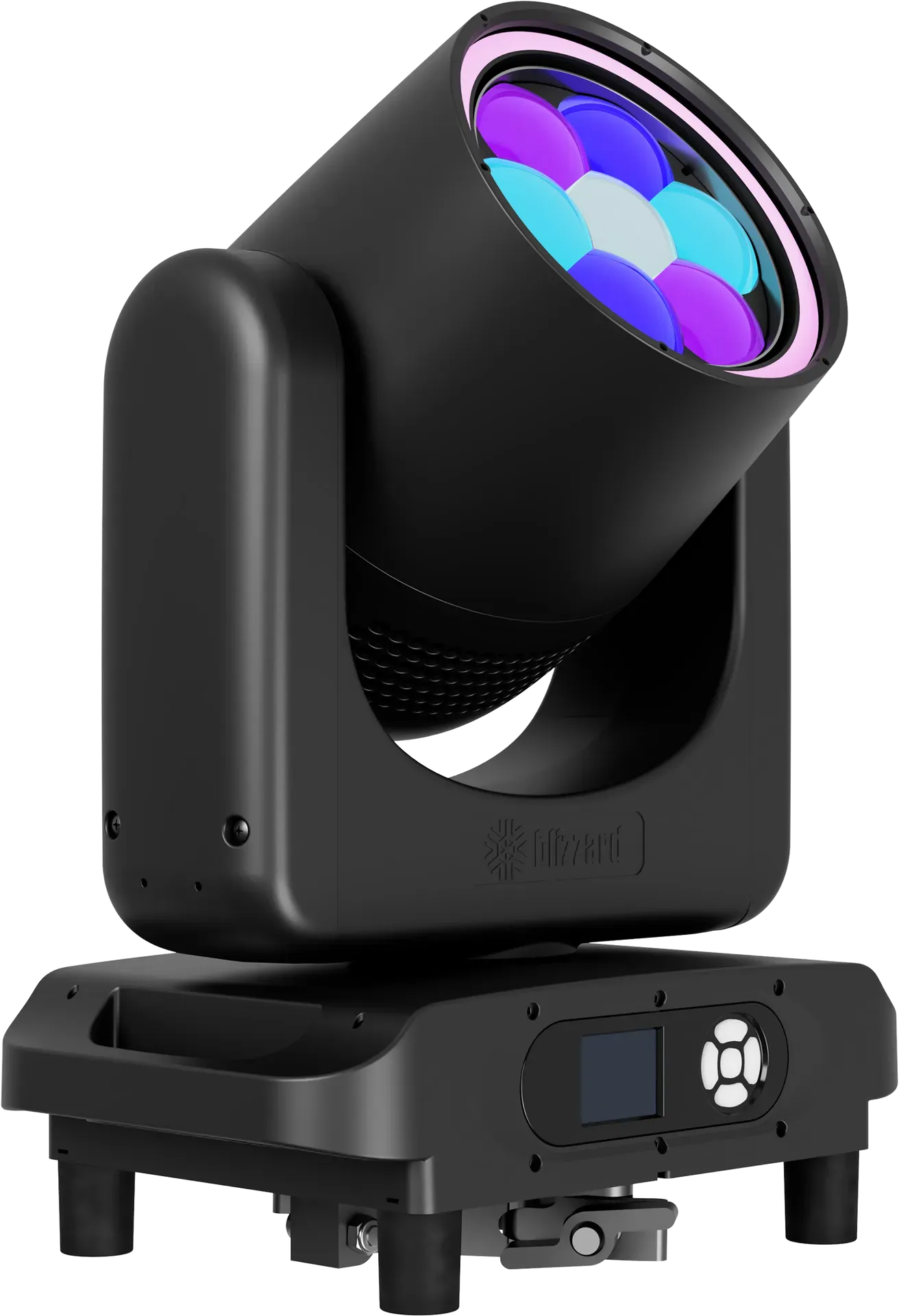

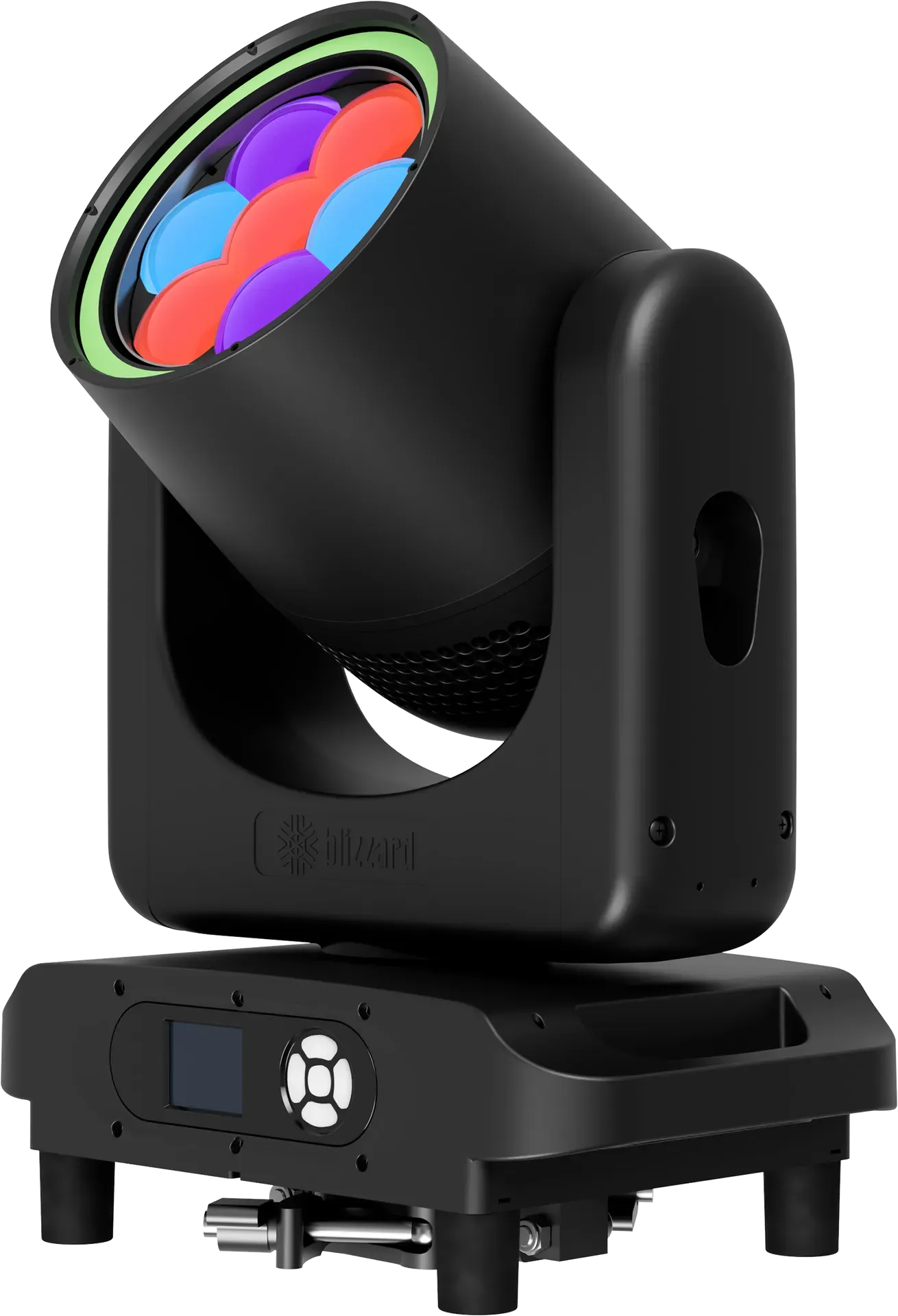

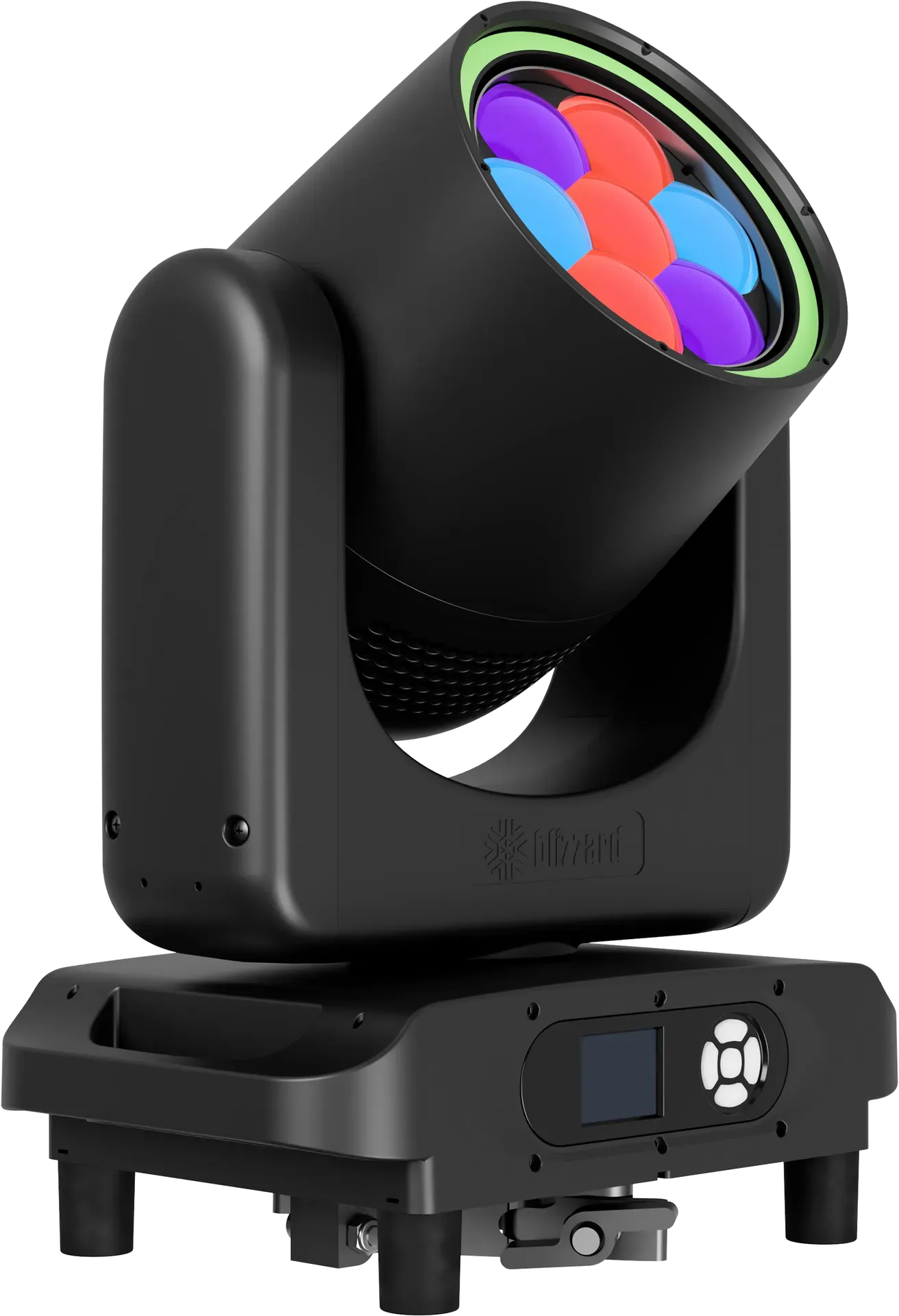

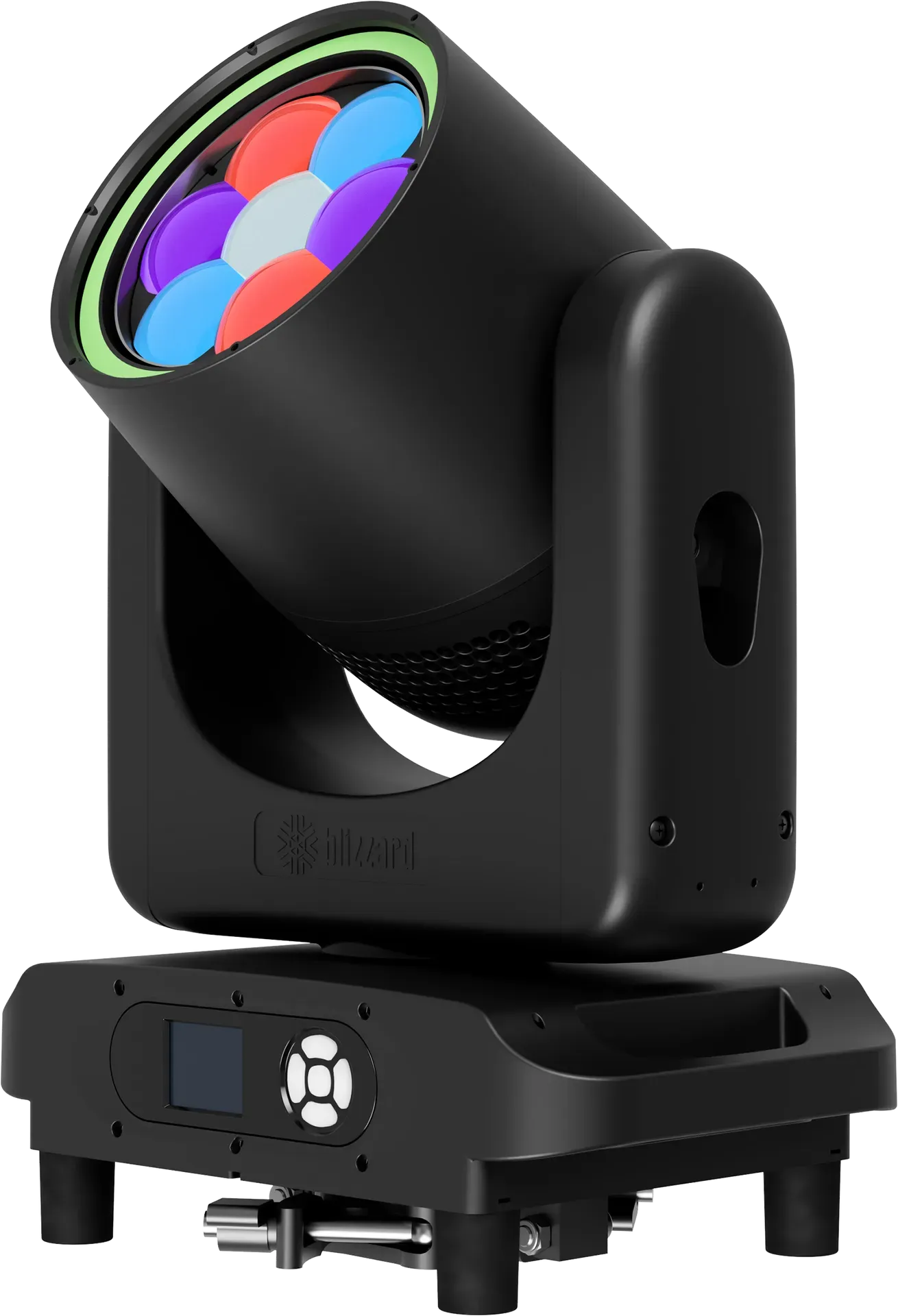

Typhon™ IP Kaleido is an outdoor-ready RGBW wash and effects fixture built around 7x 60W LEDs with independent pixel control. It delivers a tight 4 degree beam, a broad 32 degree wash, and a 5 to 50 degree spot range with smooth motorized zoom. Designers can shape looks using RGBW color mixing, CCT control from 2500K to 10000K, static and dynamic effect macros, flowing front aperture animations, and ring-based effects. Kaleido pairs its output with intelligent temperature management, IP66 protection, multiple DMX configurations, and fast 540 degree pan and 250 degree tilt movement.
Certifications

Optical

  • LEDs: 7x 60W RGBW, 20,000 hr life

  • Beam Angle: 4 to 32 degrees

  • Spot Range: 5 to 50 degrees

  • Illuminance: 23,500 lux at 5 m

  • Luminous Flux: 7100 lm

  • Color Temperature: 2500K to 10000K

  • RGBW mixing and rainbow effects

  • Independent LED control

  • Flowing aperture effects

  • Static and dynamic macros

  • Motorized zoom

  • Dimming curves and speeds

  • Strobe: 1 to 30 Hz

    • Control

  • DMX512, RDM, Art-Net, sACN

  • DMX Channel Modes: 31, 55, 21, 35, 28

  • LCD control display

  • Pan: 540 degrees, Tilt: 250 degrees

  • Movement Resolution: 8 or 16 bit

  • Intelligent temperature management

  • Y-axis lock

  • Reset with automatic error correction

    • Movement
    Power & Current

  • Input Voltage: AC 100 to 240 V, 50 to 60 Hz

  • Power Consumption: 480W, 2.4A at 220V, 4.8A at 110V, PF 0.9

  • Operating Temperature: –10 °C to 45 °C

  • Max LED Surface Temp: 80 °C

    Dimensions

    lbs

    General Specs

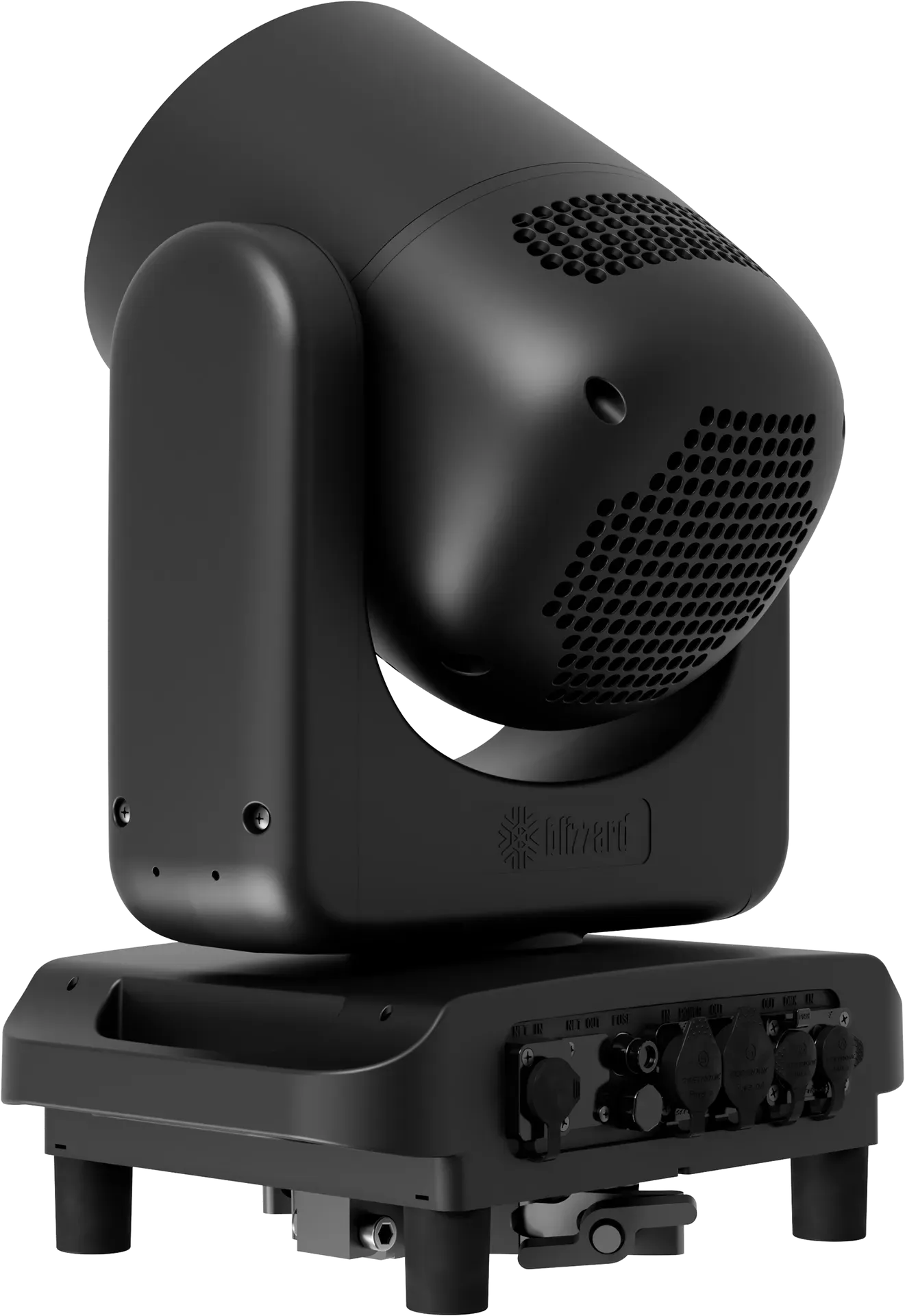

    Connectors

  • DMX In / Out: 3-pin and 5-pin XLR

  • Power: PowerCON© TRUE1 In / Out

  • Rigging: Dual clamp assembly and safety attachment point

    • Hang Time
